7.2.2. Outer cover
• Remove the shaping air assembly
• Step 2: Leave the outer cover to soak in
solvent for one hour then clean the outer
and inner surface with a cloth soaked in
solvent.
• Step 3: Clean all holes on the front of the
outer cover with a nylon brush.
• Step 4: Dry carefully with compressed air,
particularly focussing on the holes, to
ensure any paint residue is removed, then
wipe with a clean, dry cloth.
• Step 5: Check the condition of the inner
shaping air shroud and, if necessary, clean
it with a cloth soaked in solvent.
7.2.3. Injector and Injector Holder
• Remove injector see § 6.6 page 34
• Leave to soak for one hour in MEK solvent (methylethylketone).
• Dry carefully with compressed air.
• Reassemble in reverse order.

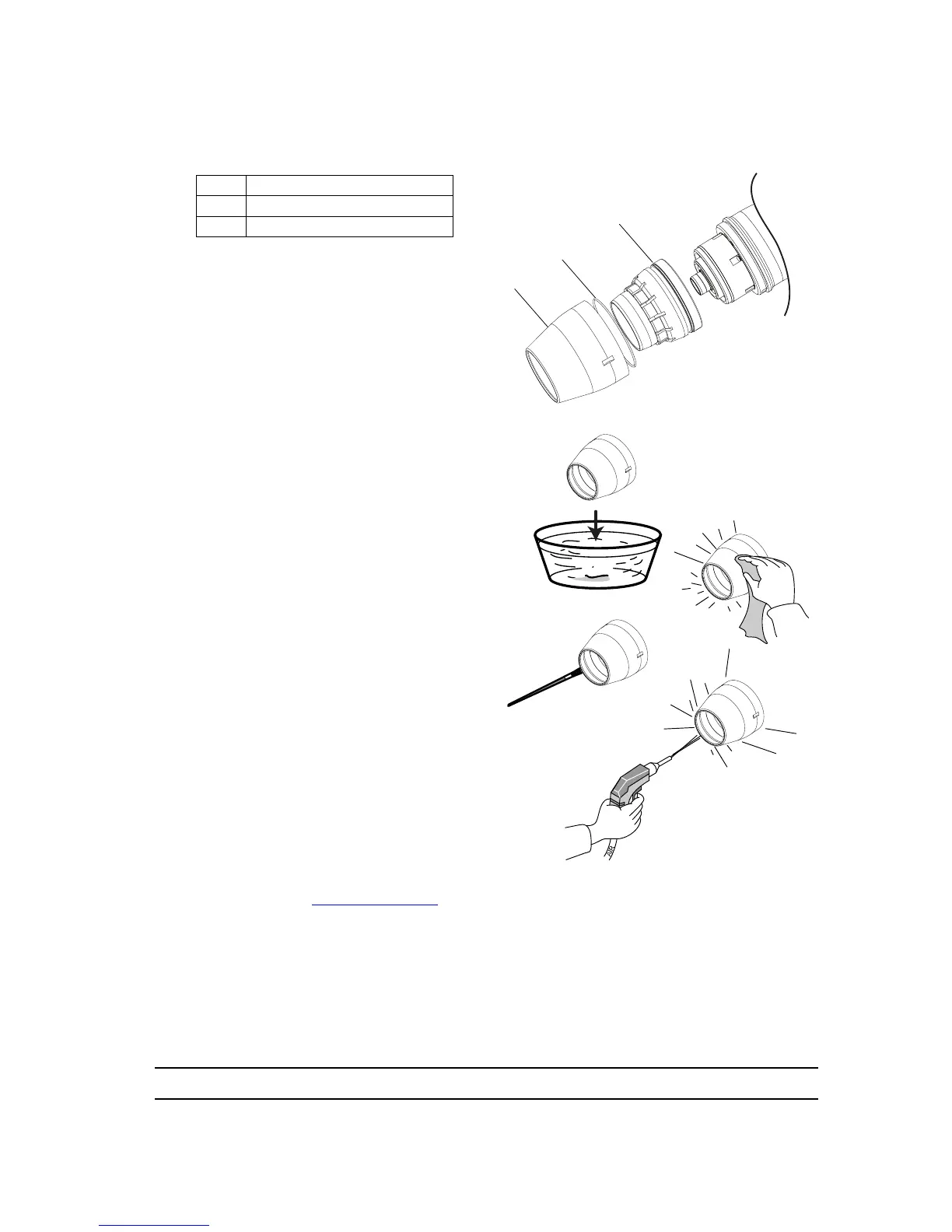

1 Outer cover
2 O-ring
3 Shaping air shroud
