PCB Diagram and Parts List
Samsung Electronics 6-4

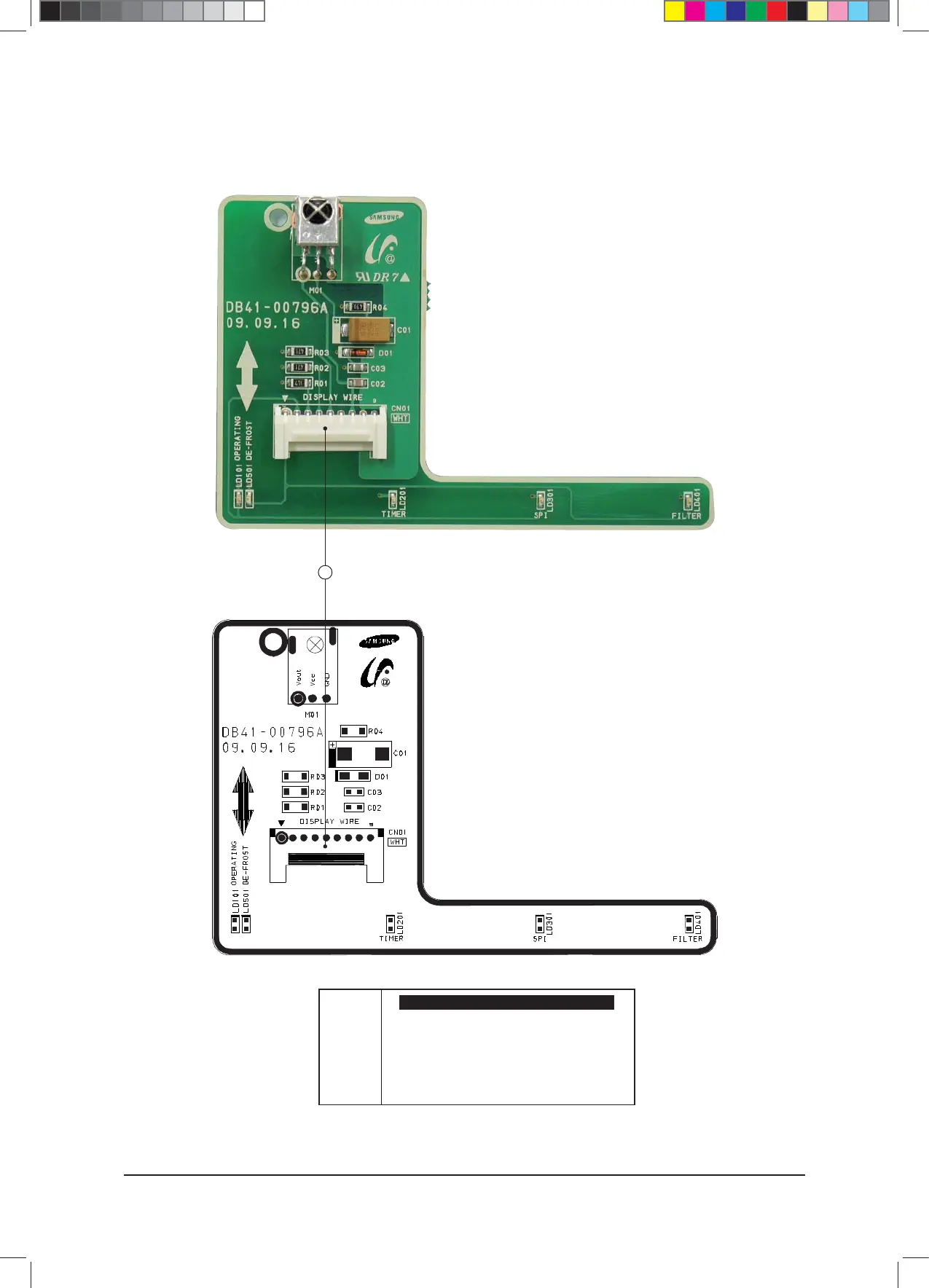

■ Panel(ND0561/0711HXE✳ Series)
DC
connecting
connector
①
#1~5: Display LED Control
#6: Not in use
#7: Send Wireless Remote Controller Signal
#8: GND
#9: VCC(DC5V)
Cn01 – Indoor Unit Main Pba Connection
1
