Disassembly and Reassembly
3-9 Samsung Electronics

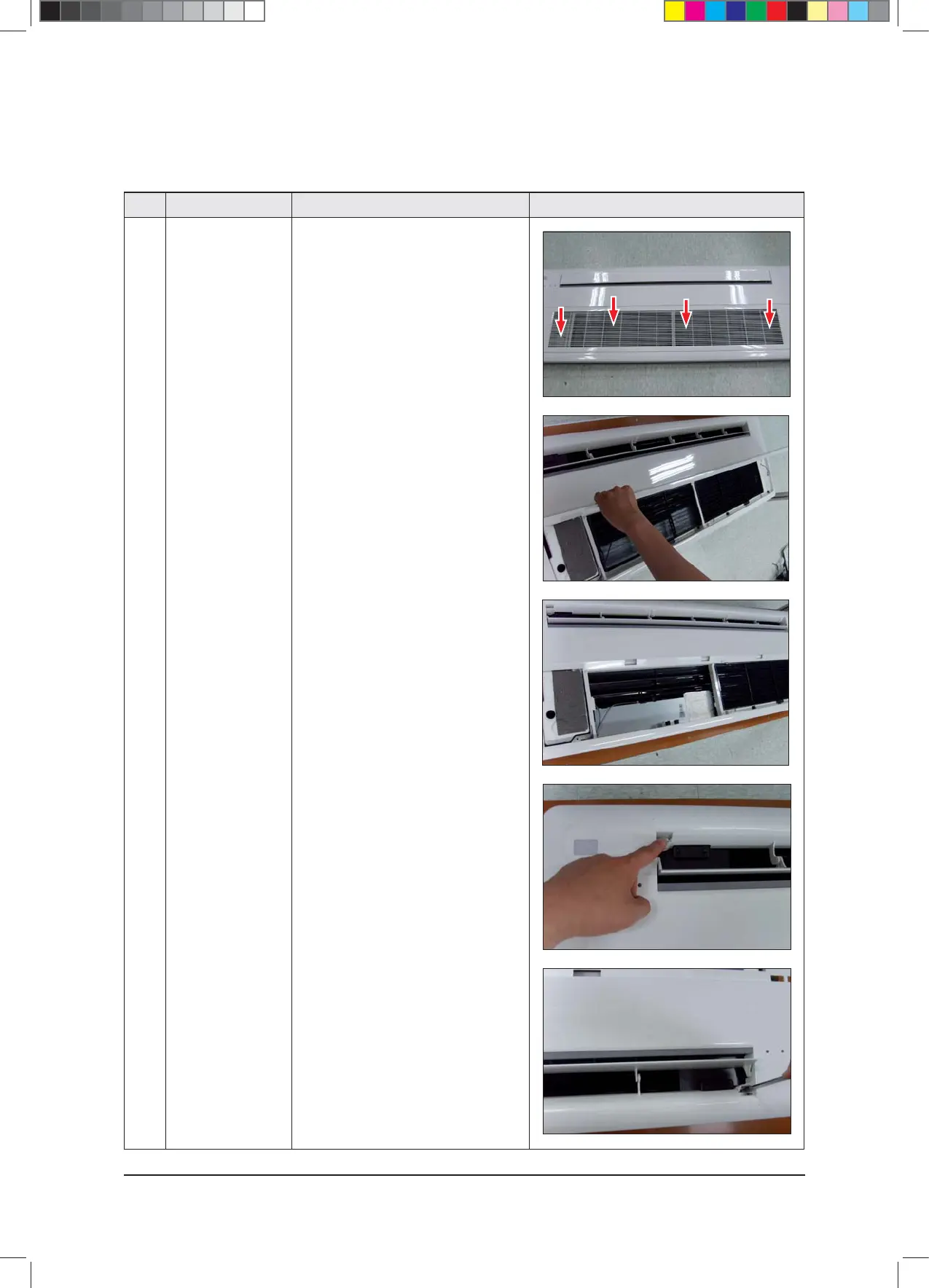

No Parts Procedure Remark
1 Panel
&
Filter
1) Press the Push Button on the Grille and
open it.
2) Separate 1 clip from the Panel and tilt
the grille to 90° and separate the grille
from the panel.
3) Separate the Filter from the Panel.
4) Separate 4 cover screws.
5) Unscrew 7 fixed screws and separate
from the Indoor Unit. (Use + Screw
Driver)
QSlim 1 way cassette type (ND0561/0711HXE✳)
