Disassembly and Reassembly
Samsung Electronics 3-10

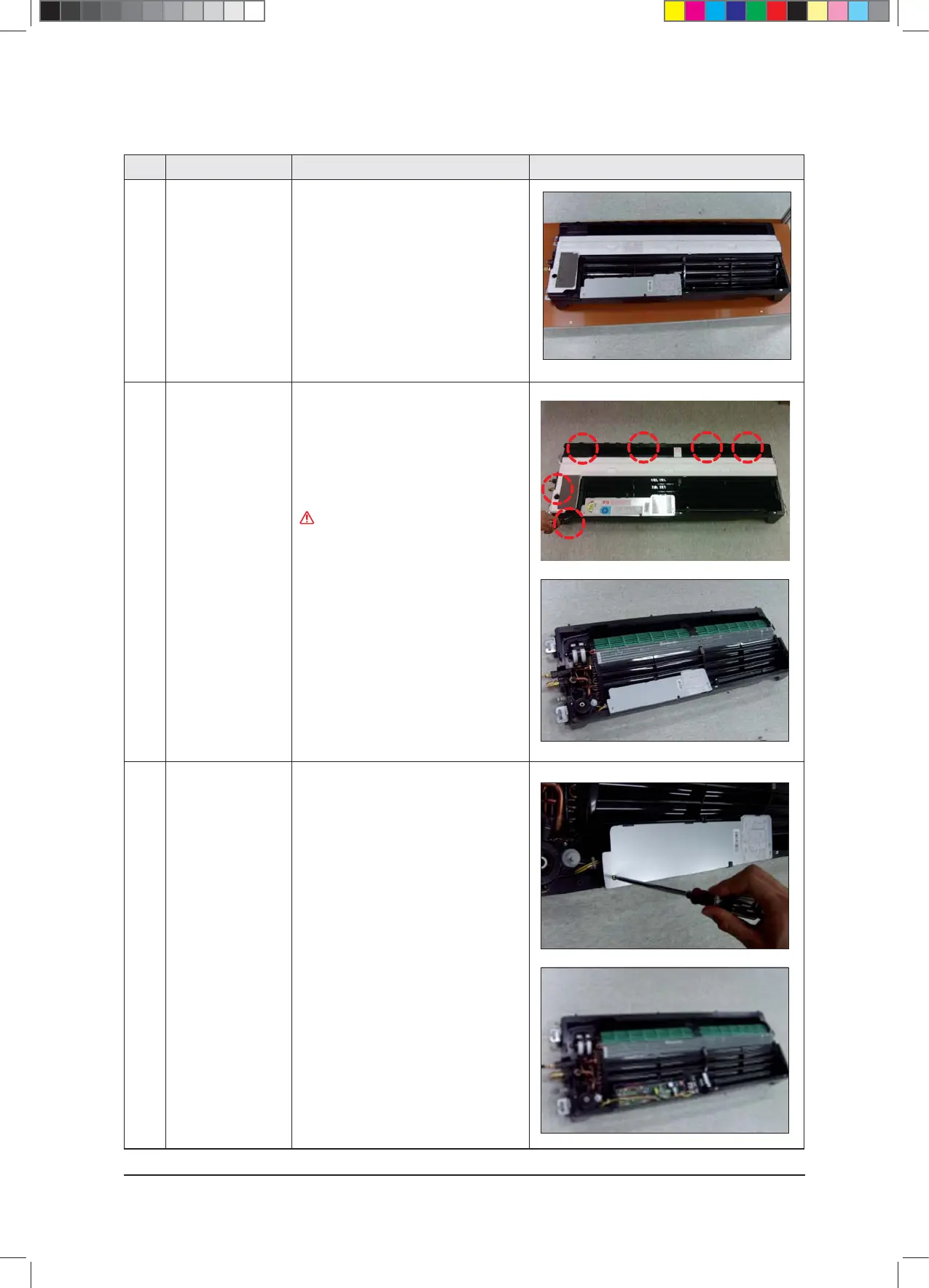

No Parts Procedure Remark
6) Press the Hooks on left and right side
of the hooks.
2 Drain Pan 1) Separate 6 fixing screws from the Drain
pan. (Use + Screw Driver)
2) Release the 2 hooks that holds the Drain
Pan and remove the Drain Pan from the
indoor unit.
When disassembling the Pan, be careful
not to touch the heat exchanger board
with a bare hand.
3 Electrical Part 1) Unscrew the 3 fixing screws in the
Electrical part and separate the cover.
(Use + Screw Driver)
$9;&6+B$BaLQGG
To Next Page
