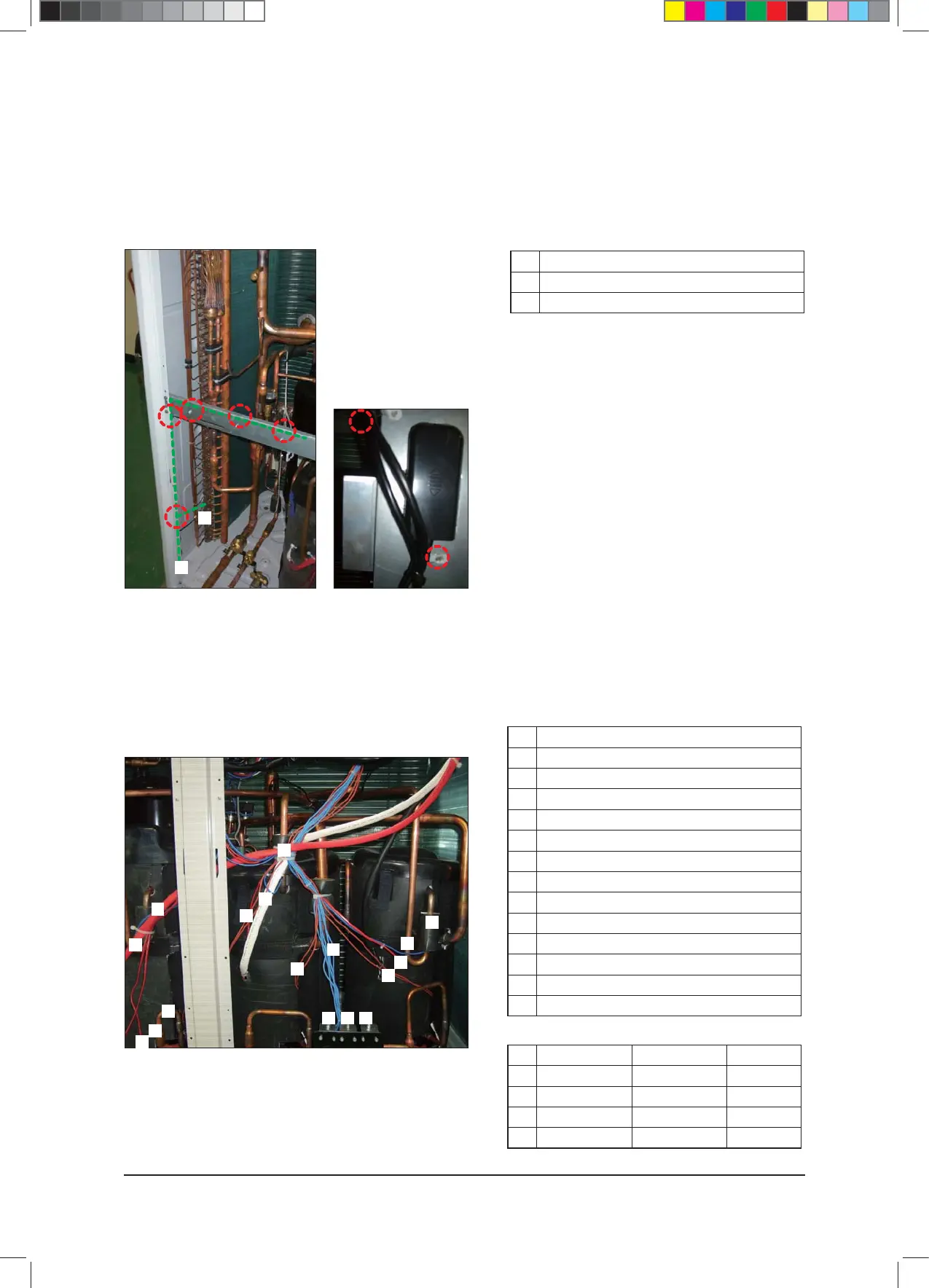

Binding Wire Large Chassis (RD160/180/200HHXG✳) (cont.)
QBending Wire 3
QBending Wire 4
Valve & Sensor
No Valve & Sensor
󱁿
Temperature Sensor Outside (White Wire)
󱂀
Temperature Sensor Cond Out (Black Wire)
Valve & Sensor
No Valve & Sensor
󱁿
Oil Balance Valve 1
󱂀
Oil Balance Valve 2
󱂁
Oil Balance Valve 3
󱂂
Temperature Sensor Discharge 1 (Blue Wire)
󱂃
Temperature Sensor Discharge 2 (Blue Wire)
󱂄
Temperature Sensor Discharge 3 (Blue Wire)
󱂅
CCH1 (Orenge Wire)
󱂆
CCH2 (Orenge Wire)
󱂇
CCH23 (Orenge Wire)
󱂈
Temperature Sensor Oil Balance (Red Wire)
󱂉
Temperature Sensor Sump 1 (Red Wire)
󱂊
Temperature Sensor Sump 2 (Red Wire)
󱂋
Temperature Sensor Sump 3 (Red Wire)
Insulation
No HP Insu Code Binding Wire
󱂓
16/18/20/22 DB62-03808C C4,10,11
󱂔
16/18/20/22 DB62-03808C
1,2,3,5,6,7,8,9,12,13
󱂕
16/18/20/22 DB62-03808C -
󱂖
16/18/20/22 DB62-04154D
1,2,3,6,8,9,13
󱁿
󱂀
t5IFPVUTJEFUFNQFSBUVSFTFOTPSBOEUIF$POE0VUUFNQFSBUVSFTFOTPS
BSFUPCFmYFEXJUIUIFDPOUSPMCPYBMPOHUIFJOUFSJPSTJEFPGUIF
cabinet and the interior of beam as shown in the image.
t'JYUIFNPUPSXJSFTPUIBUJUEPFTOPUUPVDIUIFIFBUTJOLQMBUFCZVTJOH
IPMEFSXJSFBOEmYJUCFMPXUIFDPWFSNPUPSXJSFTPUIBUJUJTCFOUJOB
U-shape with holder wire.
tMake sure to use the holder wire so that it is not too loose, and is not
hanging or touching anything sharp.
󱁿
󱂈
󱂉
󱂊
󱂁󱂀󱁿
󱂋
󱂄
󱂕
󱂔
󱂖
󱂇
󱂅
󱂃
󱂂
󱂆
󱂓
