10_ preparing the installation
preparing the installation

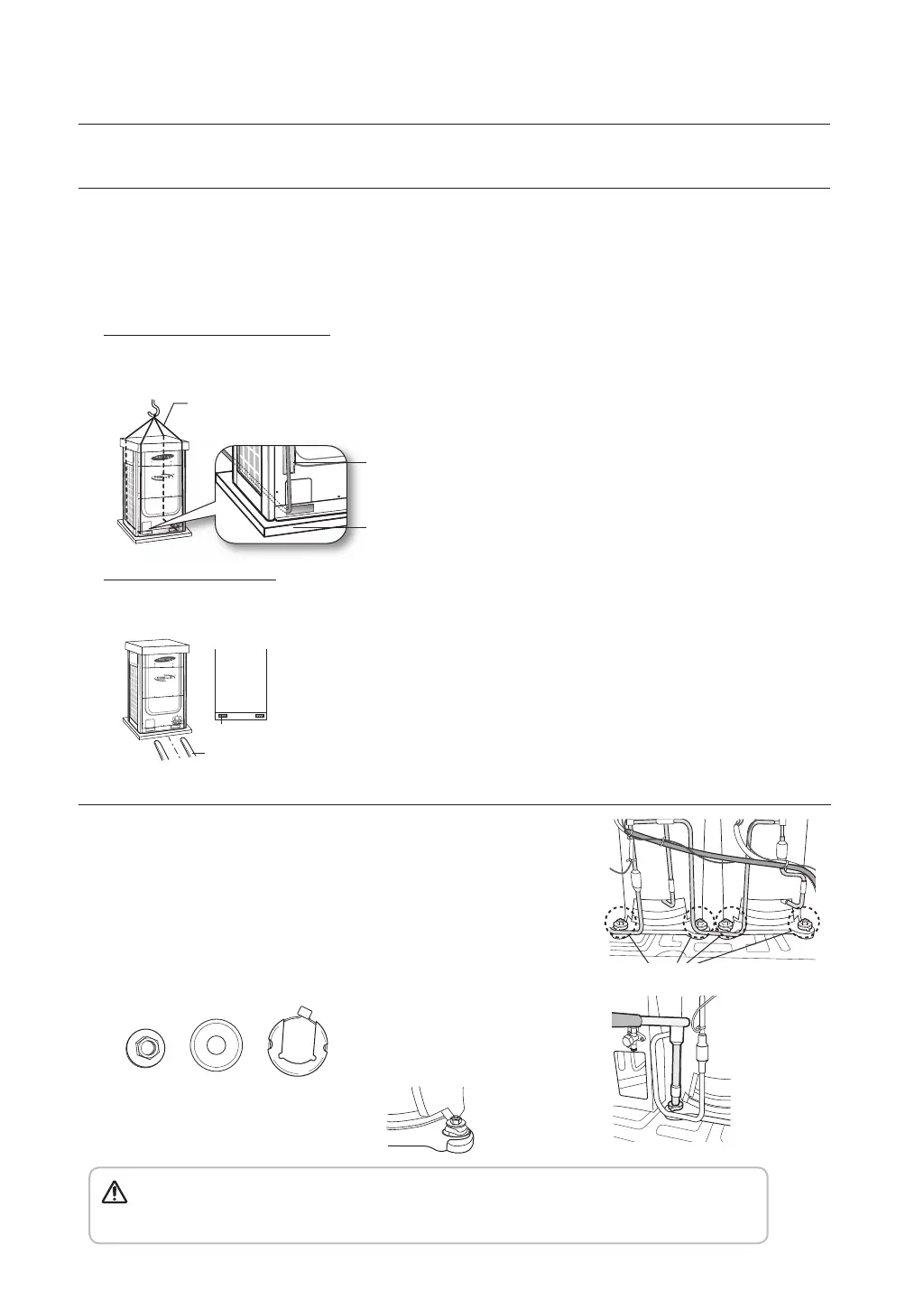

MOVING THE OUTDOOR UNIT
• Select the moving route in advance.
• Secure the strength of the carrying to resist against the weight of the outdoor unit while moving.
• Do not slant the product more than 30˚ when carrying it.
(Do not lay the product down sideways.)
• The surface of the heat exchanger is sharp. Be careful not to be get injury while moving and installing.
When moving with a crane or straps
• Fasten the wire rope as seen in the picture.
• To protect damage or scratches, insert a piece of cloth between the outdoor unit and the wire rope.
Fork part
Fork lift
When moving with a fork lift
• Insert the fork into the bottom of the outdoor unit carefully.
• Be careful that the fork does not damage the outdoor unit.
Wire rope/straps
Plate protection
cloth
Outdoor unit leg
DETACHING FASTENERS
• Open the bottom cabinet with screw driver.
The compressors are fastened with nuts in 4 places of only
following models.
RVXVHT125F
/RD125VHXF
• Detach nut washer, washer and stopper nut from compressors with a tool.
Stopper nutWasherNut washer
• Refasten the nut washer only.
• Pay your attention not to touch the copper pipes as detaching the fasteners.
• The stopper nut and washer should be removed. If this work is not conducted correctly,
the outdoor unit could vibrate and make noise.
Remove
CAUTION
DVM PLUS3_IM_E_31180-4.indd 10 2009-12-21 ｿﾀﾈﾄ 1:11:23
