preparing the installation _09
ENGLISH

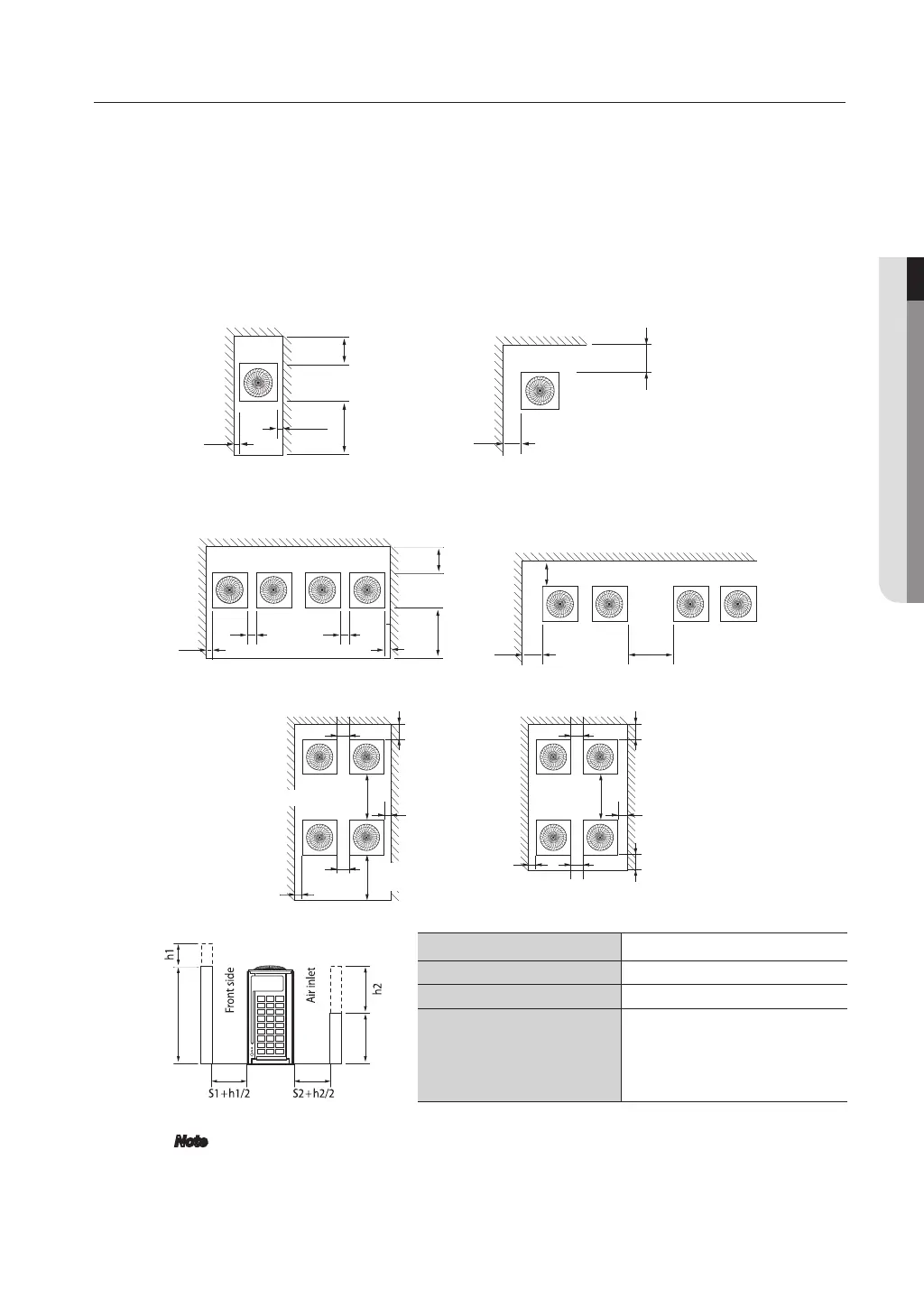

SPACE REQUIREMENTS
• The space suggested below is based on operating condition of outdoor temperature of 35°C(95°F).
If operating condition of outdoor temperature is higher than 35°C(95°F), try to have more space.
• Make sure to clear a passage for a person and air flow.
• Observe the clearances and dimensions as seen below when installing the outdoor unit.
• If you install several outdoor units at the same place, observe the space for ventilation and free airflow.
• If the space for ventilation is insufficient, the air conditioner may not generate performance designed.
Keep in mind that SAMSUNG logo is located on the front side of outdoor unit.
Single installation
Group installation
10(3/8) or
more
300(12) or more[S2]
500(20) or more[S1]
Front
10(3/8)
or more
Unit : mm(inch)
200(8) or more
300(12) or more
Wall height unrestricted
Front wall height
1500mm(60˝) and less
Rear wall height
500mm(20˝) and less
Side wall height Height unrestricted
If the height of the wall
exceeds the above value,
more space should be
added to the front and
rear space individually.
Front : S1+h1/2,
Rear : S2+h2/2
20(3/4) or more
300(12)
or more
10(3/8)
or more
Front
600(24) or more
Front
20(3/4)
or more
10(3/8)
or more
500(20)
or more
20(3/4) or more
300(12)
or more
10(3/8) or
more
300(12) or
more
20(3/4) or more
10(3/8)
or more
Front
500 or more
Front
Unit : mm(inch)
10(3/8) or
more
20(3/4) or more 20(3/4) or more
10(3/8)
or more
500(20) or
more[S1]
300(12) or
more[S2]
Wall height unrestricted
300(12) or more
200(8) or
more
400(16)
or more
Front
Front Front
Note
• The installation space mentioned above is minimum suggested clearance.
• To secure enough service space and performance of system, take account of more sufficient
space.
• The required minimum space between outdoor units for service and performance of system
is at least 100mm(4˝ ).
DVM PLUS3_IM_E_31180-1.indd 9 2009-10-16 ｿﾀﾈﾄ 2:10:10
