06_ preparing the installation
preparing the installation

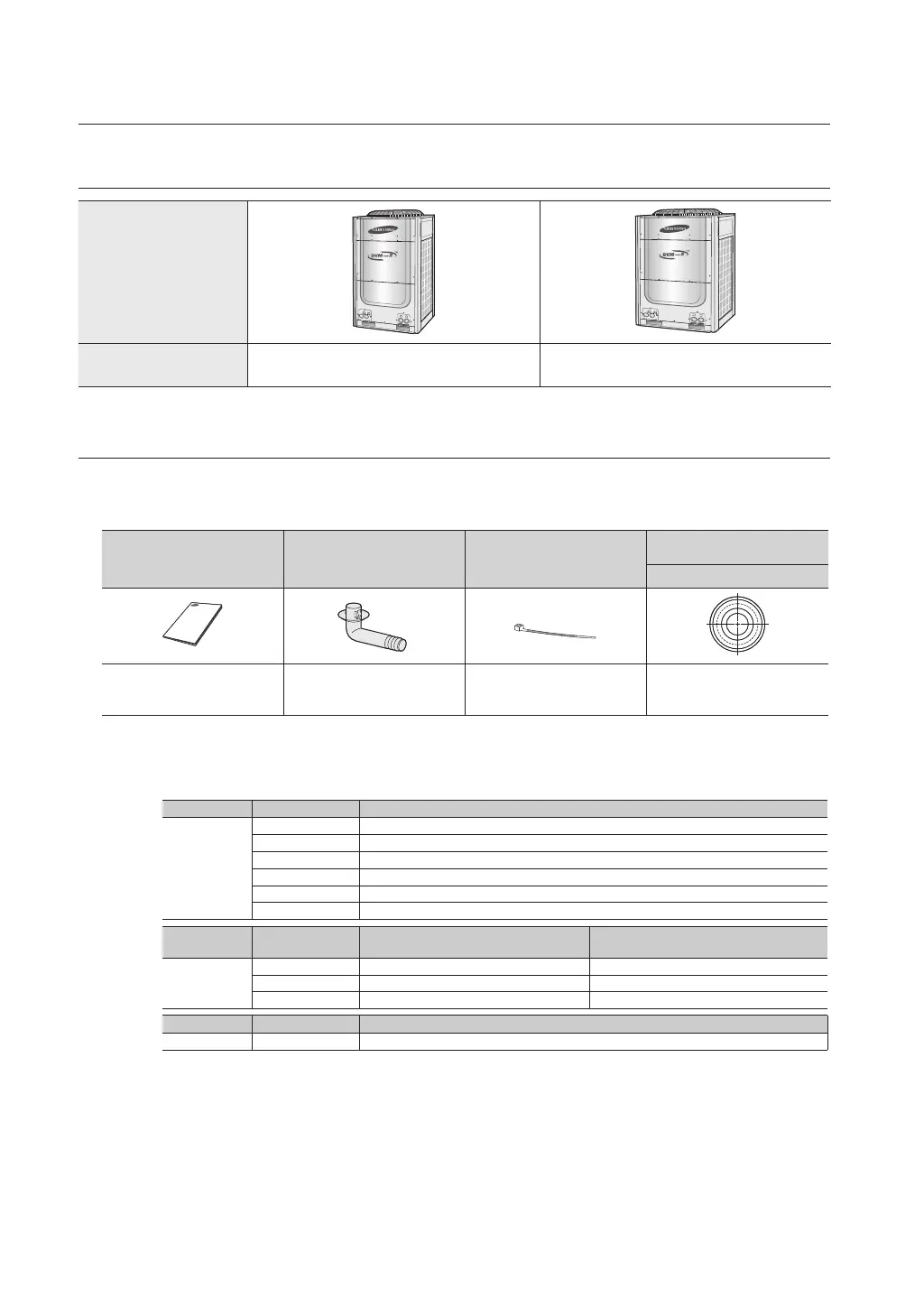

SHAPE OF THE OUTDOOR UNIT
Shape
Heat Pump
RVXVHT075/100
RD075/100VHX
RVXVHT125
RD125VHX
ACCESSORIES
• Keep supplied accessories until the installation is finished.
• Hand the installation manual over to the customer after finishing installation.
• The quantities are indicated in parentheses.
Optional accessories
• The following accessories are needed when installing the outdoor and indoor unit.
Installation manual (1) Drain plug (2) Cable tie (4)
Cap drain (2)
Remarks
- - -
- For closing the drain hole
Type Model Capacity of outdoor unit
Y-joint
MXJ-YA1509
51MBH and below
MXJ-YA2512
Over 51MBH~138MBH and below
MXJ-YA2812
Over 138MBH~160MBH and below
MXJ-YA2815
Over 160MBH~240MBH and below
MXJ-YA3119
Over 240MBH~336MBH and below
MXJ-YA3819
Over 336MBH~468MBH and below
• When the indoor units without EEV such as wall mounted and ceiling type are installed, it is
necessary to install distribution kits.
Type Model Capacity of outdoor unit
Outdoor joint MXJ-T3819 12~30Ton
Type Model Total indoor unit’s capacity
The connectable quantity of
indoor units
Header joint
MXJ-HA2512 160MBH and below 4
MXJ-HA3115 Over 160MBH~240MBH 8
MXJ-HA3819 Over 240MBH 8
