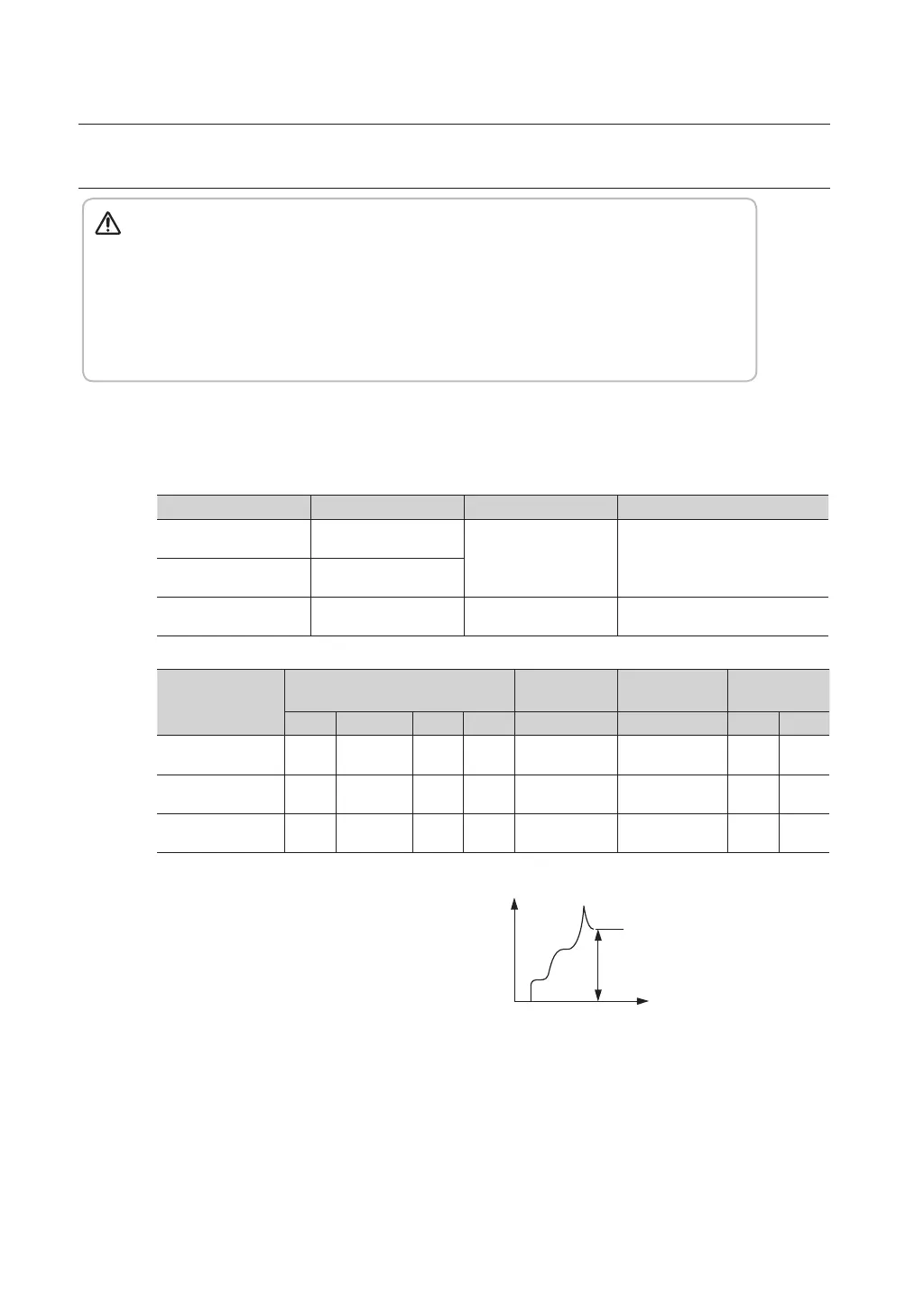

installing the unit
WIRING WORK
Manufacturer’s recommended specifications of the circuit breaker
and power cable
1. Basic model
2. Electric Specification
• The relationship between the starting time and the starting current
(Digital Scroll Comp. + Fixed Scroll Comp)
• Voltage range
Units are suitable for use on electrical systems where voltage supplied to unit terminal is not
below or above listed range limits.
• Maximum allowable voltage variation between phases is 2%.
Abbreviations
- MCA: Min. Circuit Amps. (A)
MCA = 1.25 X LOAD1 + LOAD2
( LOAD1: RLA of Fixed Comp. / LOAD2: RLA of Digital Comp. + FLA of Fan Motor)
- RLA: Rated Load Amps. (A)
- OFM: Outdoor Fan Motor
- FLA: Full Load Amps. (A)
- kW : Rated Motor Output (kW)
Capacity(HP) Model MCCB(A) ELB
7.5
RVXVHT075FE
RD075VHXFA
50
50A, 30mA, ≤100ms
10
RVXVHT100FE
RD100VHXFA
12.5
RVXVHT125FE
RD125VHXFA
60
60A, 30mA, ≤100ms
• Install a circuit breaker. For safety and maintenance, we strongly recommend that
MCCB, ELB and ELCB have to be installed every outdoor unit.
- ELCB : Earth Leakage Circuit Breaker
- MCCB : Molded Case Circuit Breaker
- ELB : Earth Leakage fuse Breaker
• Operate the unit after the refrigerant piping work must be done.
• Do not disassemble or alter the wiring of the unit during the electrical wiring work.
If not, the unit may be damaged.
CAUTION
Model
Units
Power
supply
Comp. OFM
Hz Volts Min. Max. MCA RLA kW FLA
RVXVHT075FE
RD075VHXFA
60 208-230 187 253 48.1 13.8+21.8 0.63 7
RVXVHT100FE
RD100VHXFA
60 208-230 187 253 53.8 19.6+21.8 0.63 7
RVXVHT125FE
RD125VHXFA
60 208-230 187 253 61.1 23.4+24.6 0.63 7
Starting current
Starting time
RLA
DVM PLUS3_IM_E_31180-4.indd 32 2009-12-21 ｿﾀﾈﾄ 1:11:29
