installing the unit _23
ENGLISH

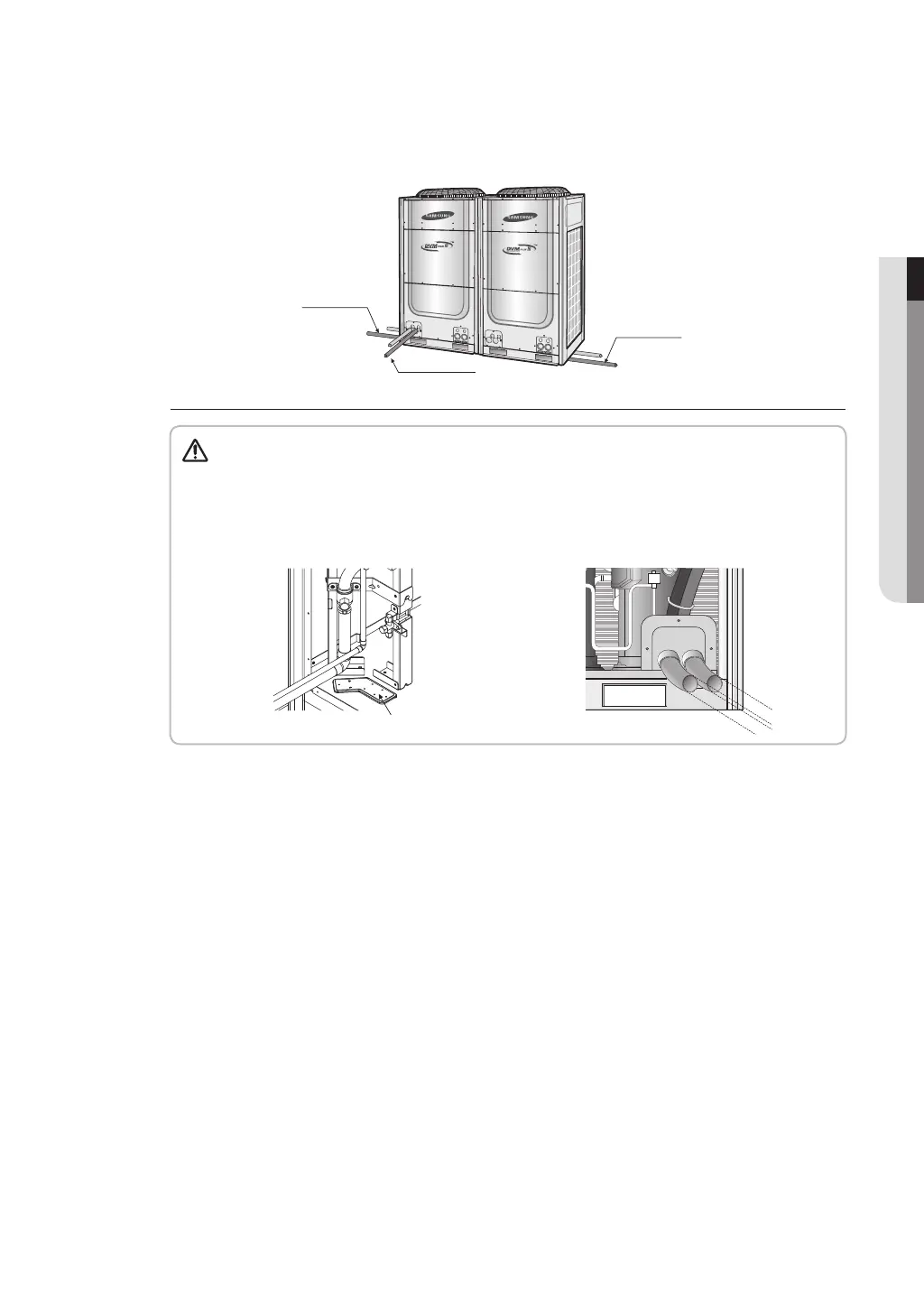

Free piping & wiring directions
DVM PLUS III is easy to install as its piping can be connected from front, right, left and bottom
side. Wiring hole (Conduits) adds convenience as it allows power and communication lines to be
connected in various ways and directions.
Left side
Right side
Front side
Caution for using knock-out hole
• Make sure not to damage the exterior of the outdoor unit.
• Remove all burrs at the edge of the knock-out hole and apply the paints it to prevent
rust.
• Use a cable tube and bushing to prevent a cable from being damaged when passing
through a knock-out hole.
Knock-out hole
CAUTION
DVM PLUS3_IM_E_31180-1.indd 23 2009-10-16 ｿﾀﾈﾄ 2:10:22
