Samsung DVM - Functions of FCU KIT

19
INSTALLATION
Functions of FCU KIT

y
Fan control (Auto, High, Mid, Low), valve control, setting indoor temperature, sensing inlet
water pipe temperature is possible by FCU KIT. (Room temperature sensor must be installed.)

y
For direct power supply from FCU KIT, fan motor must work at AC 208 - 230 V~ 60 Hz, AC
220 - 240 V~ 50 Hz and 1A or low. Otherwise, install relay for external power suppy to the
fan motor.

y
2/3 way solenoid valve is a type that works at AC 208 - 230 V~ 60 Hz, AC 220 - 240 V~
50Hz and supports product with 0.5 A or low.

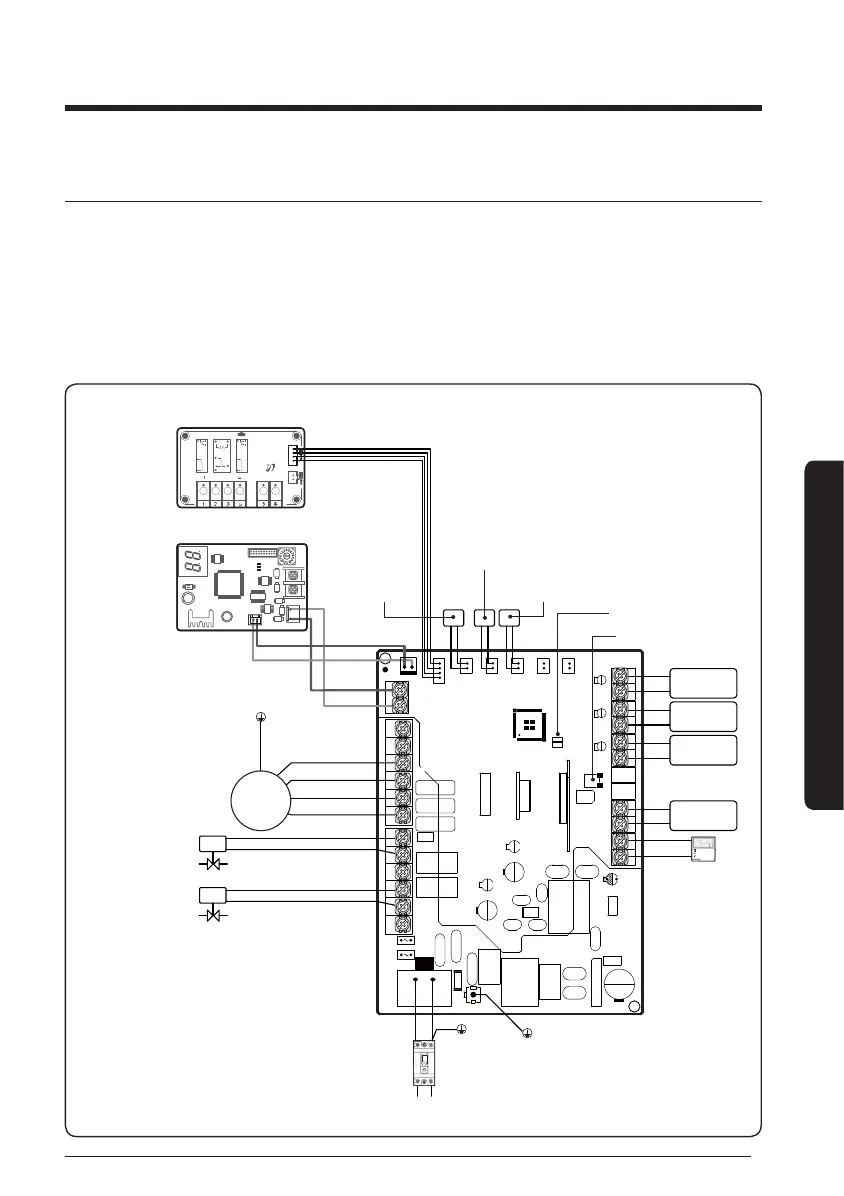

CN4
