INSTALLATION

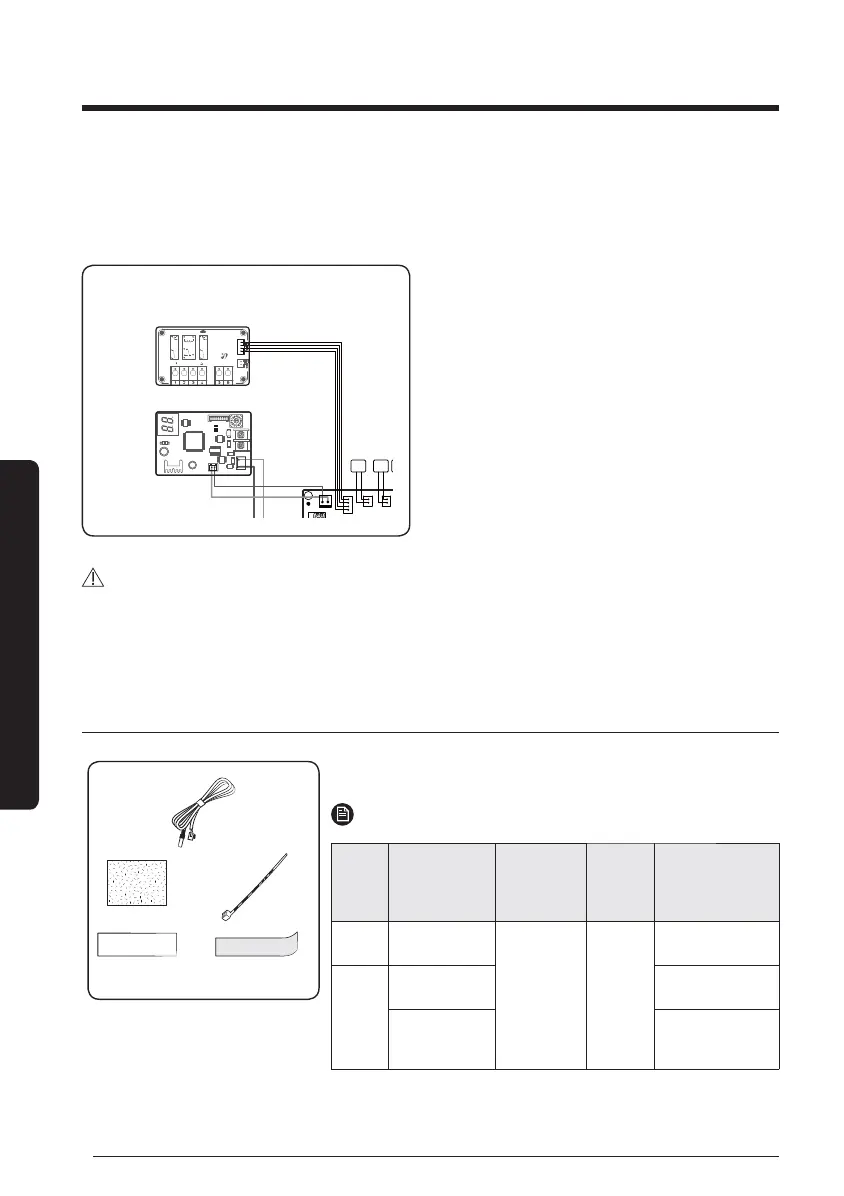

7 Optional external contact interface module (MIM-B14)

y
If you need an external contact control (for indoor unit ON/OFF, external heater control,
or pump control), use an external contact interface module.
CN4
CN3
RED
CN2
BLK
YEL
RED
Y-GRN
CN4
CN3
RED
CN2
BLK
YEL
RED
Y-GRN
External contact interface module
(Optional)
CAUTION

y
If the provided connection wire (370 mm) is not lengthy enough when installing the
MIM-B14 external contact interface module outside, be cautious not to touch between
wires while in extension.
Installing water temperature sensor
Insulator
Aluminum tape
Rubber tape
Cable tie
Water temp.
sensor
1 Check the sensor and sensor holder.
NOTE
Pipe
type
Location
of Sensor
Connector
Classication
Diameter
of sensor
Location of pipe
2-pipe Water-IN 1
Pipe
temperature
sensor (Blue)
Ø7
Water inlet
pipe
4-pipe
Water-IN 1
Chilled water
inlet pipe
Water-IN 2
Heating water
inlet pipe
FCU KIT installation
