19

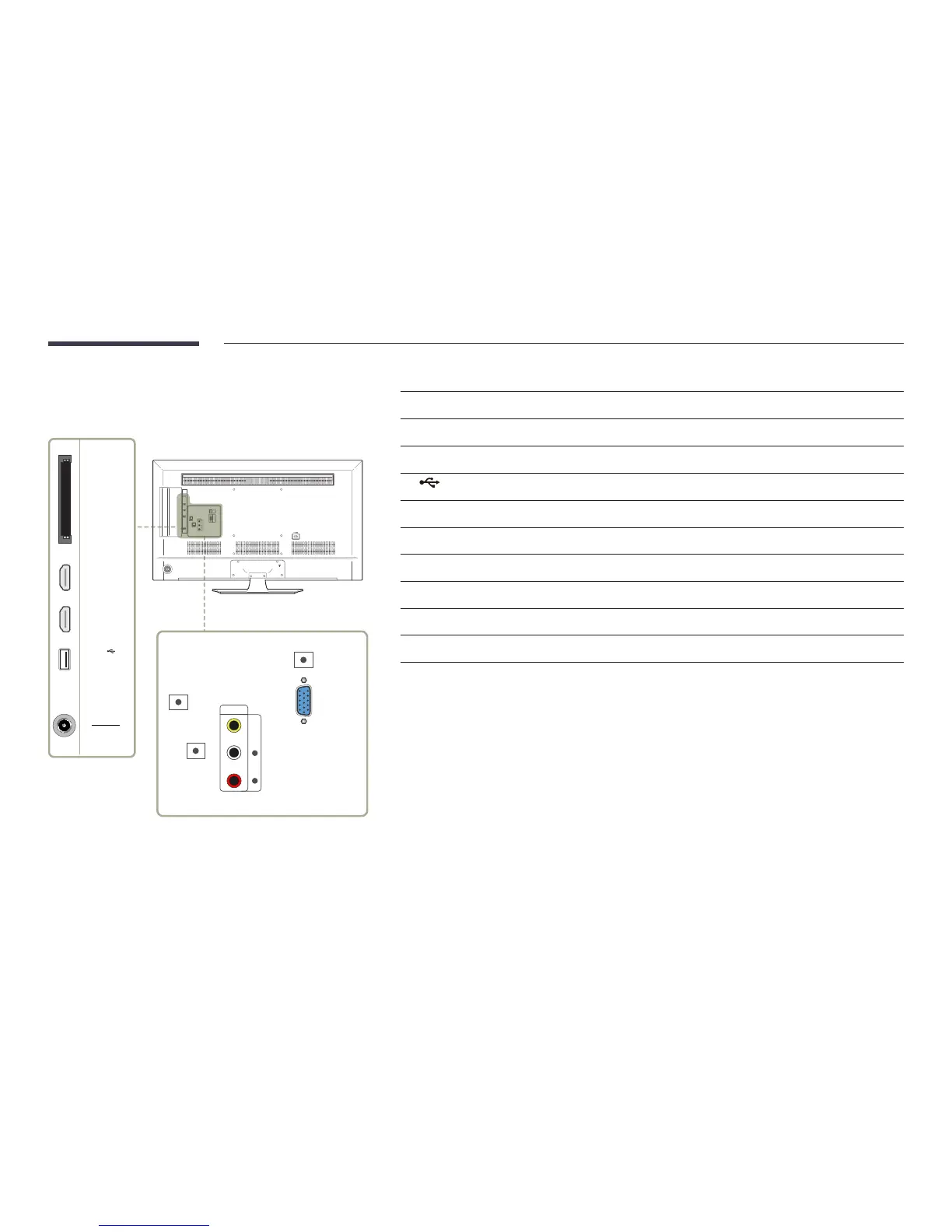

Reverse Side
―
The colour and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.
HDMI IN 2
(DVI)
COMMON
INTERFACE
COMMON
INTERFACE
HDMI IN 1
(STB)
AUDIO
OUT
PC
AUDIO
IN
PC IN
RS232C IN
ANT IN
AIR/CABLE
USB
(
5V 0.5A)
/ CLONING
AUDIOL R
VIDEO
AV IN
AUDIO
VIDEO
PC IN
PC
AUDIO
IN
Port Description
COMMON INTERFACE
Connect to a CI card.
HDMI IN 2 (DVI)
Connects to a source device using a HDMI cable or HDMI-DVI cable.
HDMI IN 1 (STB)
Connects to a source device using a HDMI cable or HDMI-DVI cable.
USB (5V 0.5A) / CLONING
Connect to a USB memory device.
ANT IN AIR/CABLE
Connect to an antenna cable.
AUDIO OUT
Connects to the audio of a source device.
RS232C IN
Used for service purposes.
AV IN VIDEO / L-AUDIO-R
Connect to an external device using a video or Audio cable.
PC AUDIO IN
Receives sound from a PC via an audio cable.
PC IN
Connects to a source device using a D-SUB cable.
To Next Page
