Screen Adjustment
4
4 Screen Adjustment

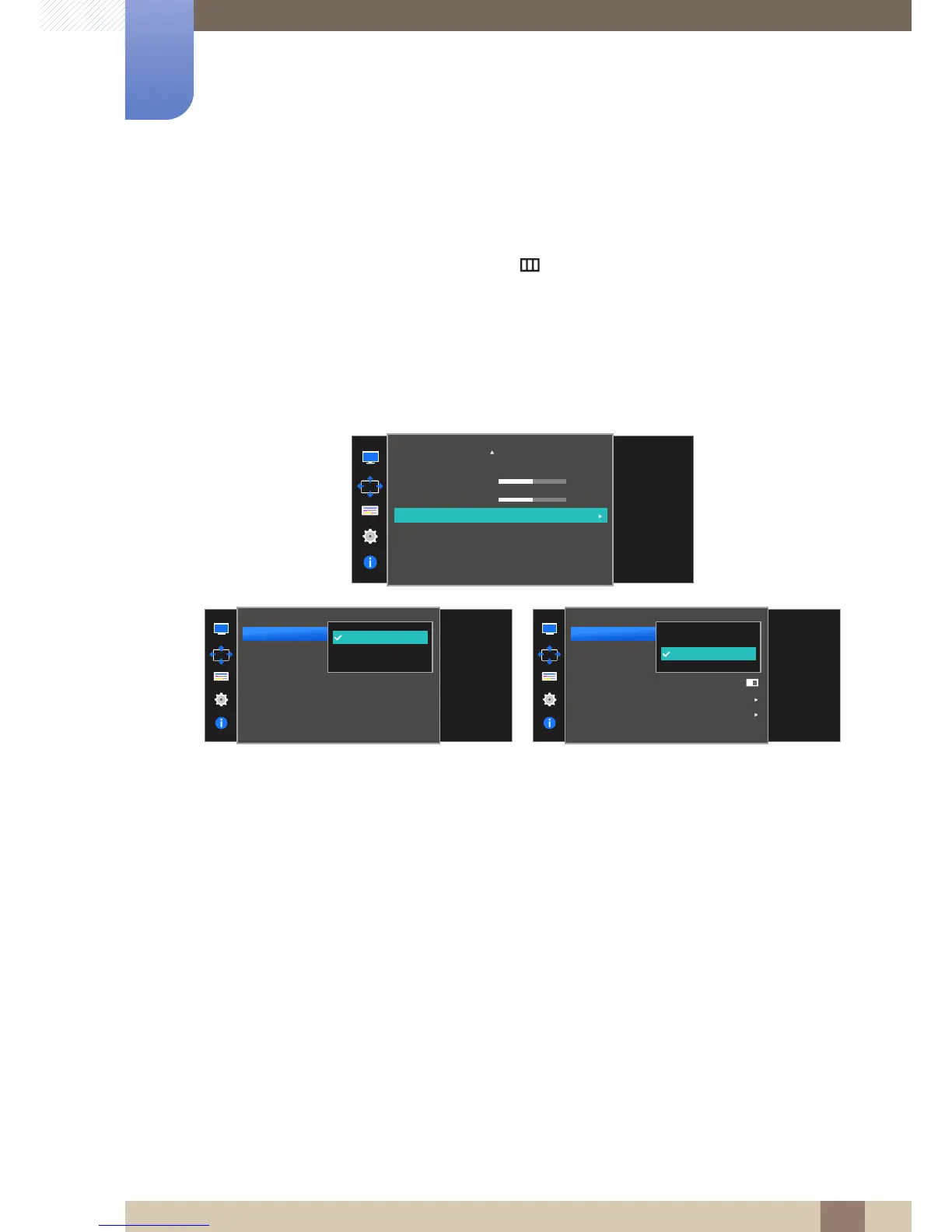

4.3.1 Configuring PIP/PBP Mode
Enable or disable the PIP/PBP function.
1 When the Function Key Guide appears, select [ ] by moving the JOG button UP.
Next, press the JOG button.
2 Move to Screen controlling the JOG button UP/DOWN and press the JOG button.
3 Move to the PIP/PBP controlling the JOG button UP/DOWN and press the JOG button.
The following screen will appear.
4 Move to the PIP/PBP Mode controlling the JOG button UP/DOWN and press the JOG button.
The following screen will appear.
 Off / On
5 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
6 The selected option will be applied.
Screen
Screen Fit
50
50
Image Size
H-Position
V-Position
PIP/PBP
Configure the settings
for using Picture in
Picture/Picture by
Picture.
PIP/PBP
Off
Off
On
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
Turn PIP/PBP Mode
on or off.
PIP/PBP
2Q
Off
On
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
Turn PIP/PBP Mode
on or off.
75/75
