3. Disassembly and Reassemble
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.
WARNING
This LED TV contains electrostatically sensitive devices. Use caution when handling these components.
3-1. Disassembly and Reassembly
CAUTION
Disconnect the LED TV from the power source before disassembly.1.
Follow these directions carefully; never use metal instruments to pry apart the cabinet.2.
If there is no additional coment, it is same for all inches.3.
65 inches

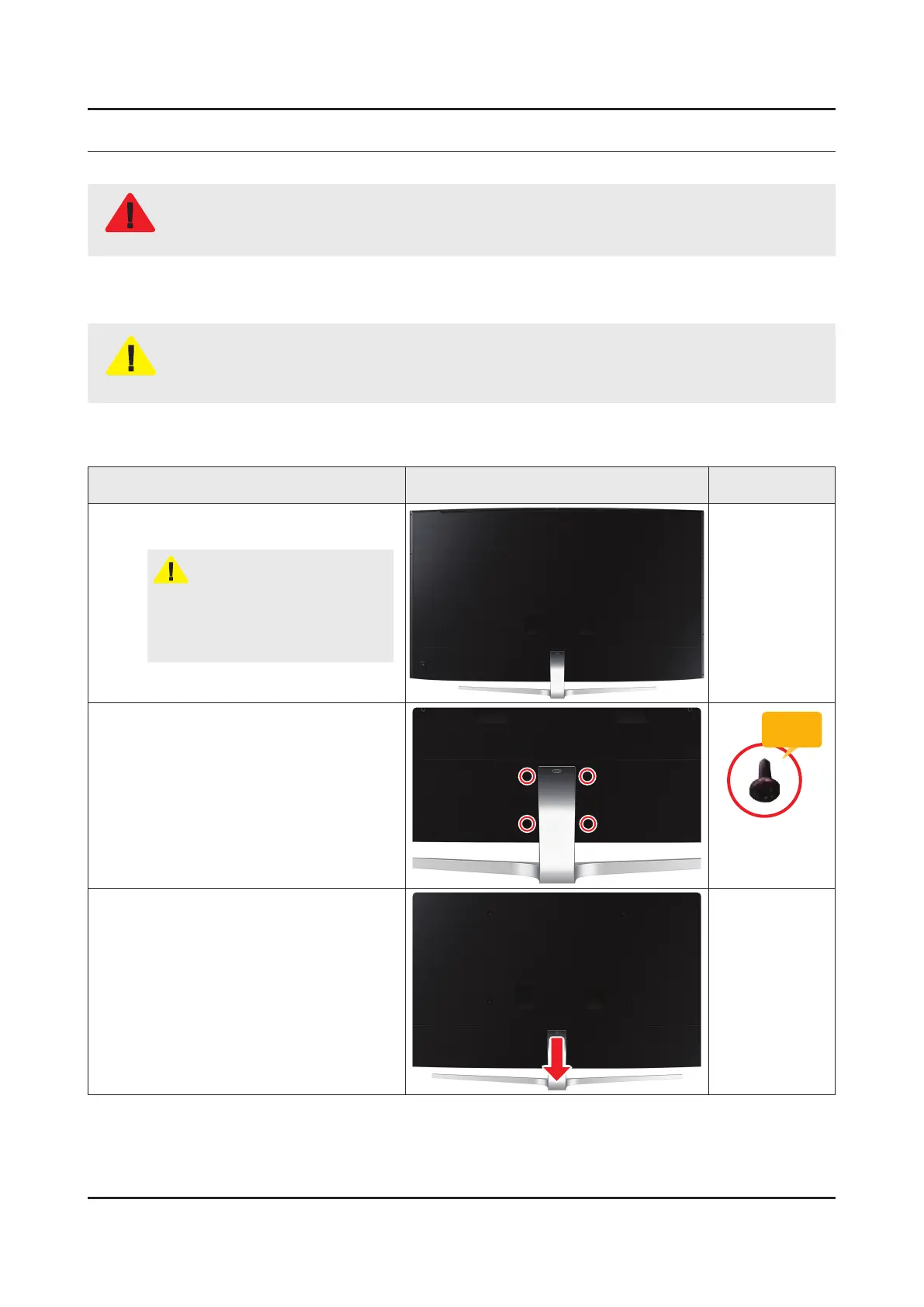

Description Picture Description Screws
1
Carefully position the TV so that the
screen is facing downwards.
CAUTION
Make sure to place the TV upon a
soft curved cushion or any material
that will prevent damage to the
screen.
2
Remove the screws from the ASSY
GUIDE P-STAND.
65" : 4EA•
Torque :
7~8Kgf.cm
6003-001208
SCREW-TAPTYPE
M4,L12,ZPC(BLK)
3
Remove the ASSY STAND P-BASE.
To Next Page
