5-11

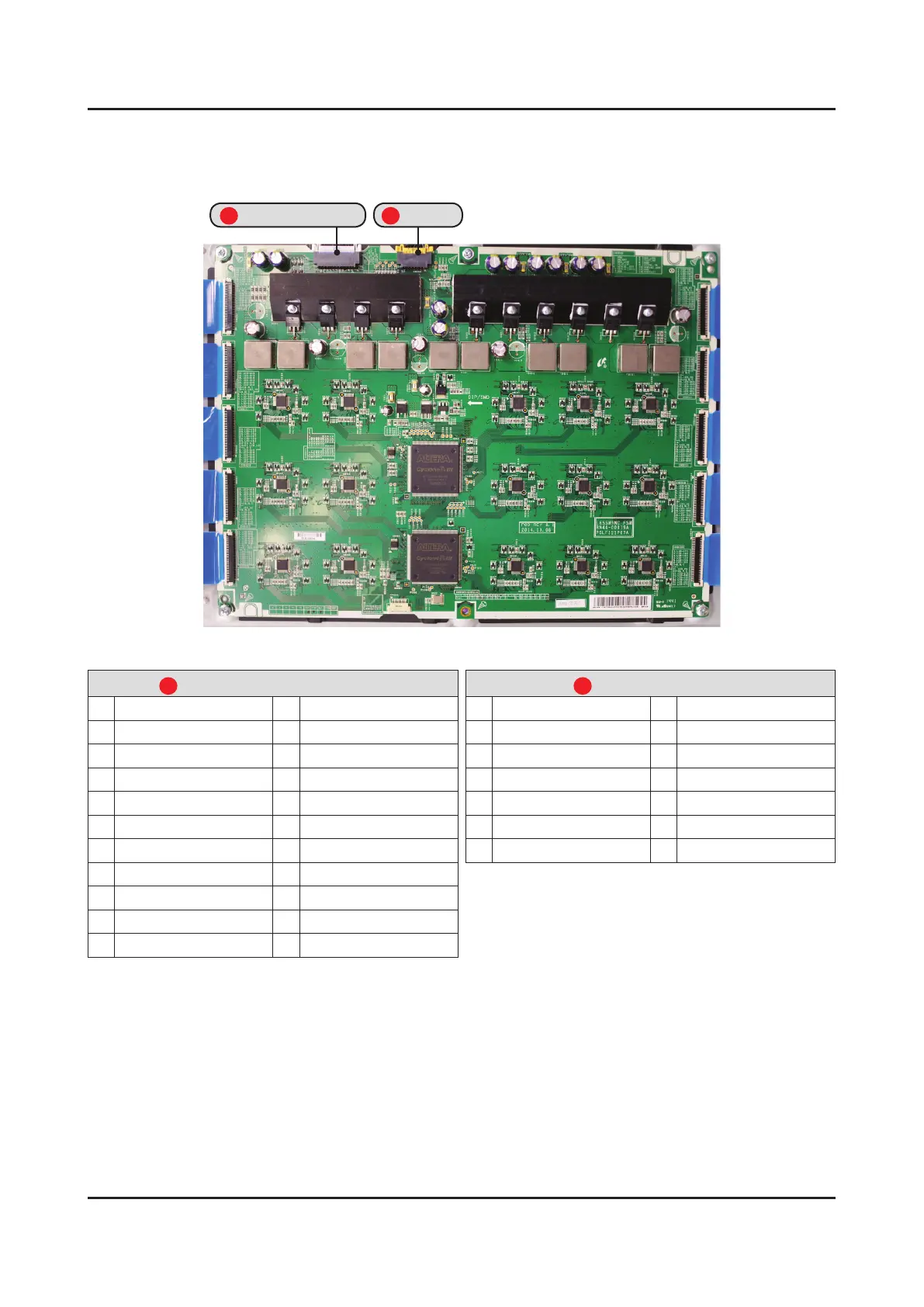

5. Wiring Diagram
5-2-4. LDC Board
65 inches 
1
CN9001 / CN9002
2
CN9003
LDC Board Pin Map 
1
CN9001 / CN9002 (From SMPS)
1 Vdrv 12 GND
2 Vdrv 13 GND
3 Vdrv 14 GND
4 Vdrv 15 GND
5 Vdrv 16 GND
6 Vdrv 17 GND
7 Vdrv 18 GND
8 Vdrv 19 B13V
9 Vdrv 20 GND
10 Vdrv 21 B5V
11 GND 22 N.C
2
CN9003 (From FRC)
1 GND 8 VSYNC IN
2 SCL LED 9 SERIAL STT
3 BLU ON/OFF 10 SERIAL UHR
4 NC(TEST SD) 11 SERIAL DATA
5 SDA LED 12 GND
6 GND 13 GND
7 NC(TEST LD) 14 CONTACT
