4-2-7. Testing T-CON Board
65 inches

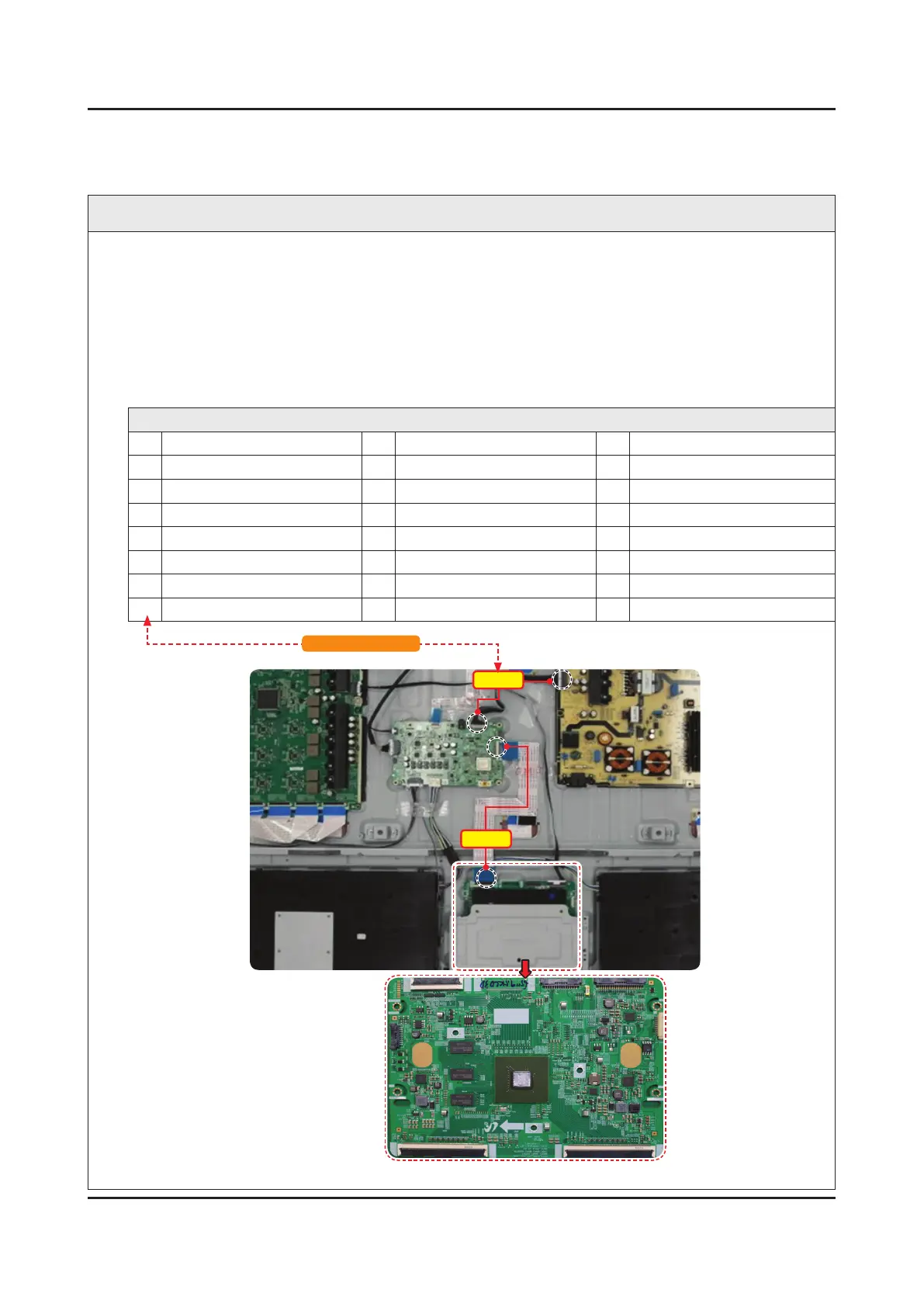

Major check points
Check TV Board Connector Voltages from SMPS (switched voltages on 1. CNM803).
Test for 13V DC at both sides of both fuses on the TCON Board.2.
If either one of the fuses is open, replace the T-CON Board .3.
If 13V DC are missing on fuses, check output feed from TV Board (CN501, pins 1-10)4.
If 13V DC feed is present at the output of the TV Board, suspect a defective LVDS cable.5.
If the 13V DC feed is not present, suspect a defective TV Board or SMPS.6.
CN203 (POWER)
1 DGND 9 B13V_PW 17 B18VS_PW
2 DGND 10 B13V_PW 18 DGND
3 B13V_PW 11 DGND 19 DGND
4 DGND 12 DGND 20 SMPS_FET_FAIL_DETECT
5 B13V_PW 13 DGND 21 DGND
6 B13V_PW 14 DGND 22 SW_POWER_OUT
7 B13V_PW 15 B18VS_PW 23 A5V_PW
8 B13V_PW 16 B18VS_PW 24 A5V_PW
(ASSY T CON P)
CN501
CN203
CNM803 from SMPS
