5. Wiring Diagram
5-2-6. FRC Board
78 inches 
1
CN803
3
CN802
6
CN801
7
CN800
2
CN800
4
CN801
5
CN400_MAIN

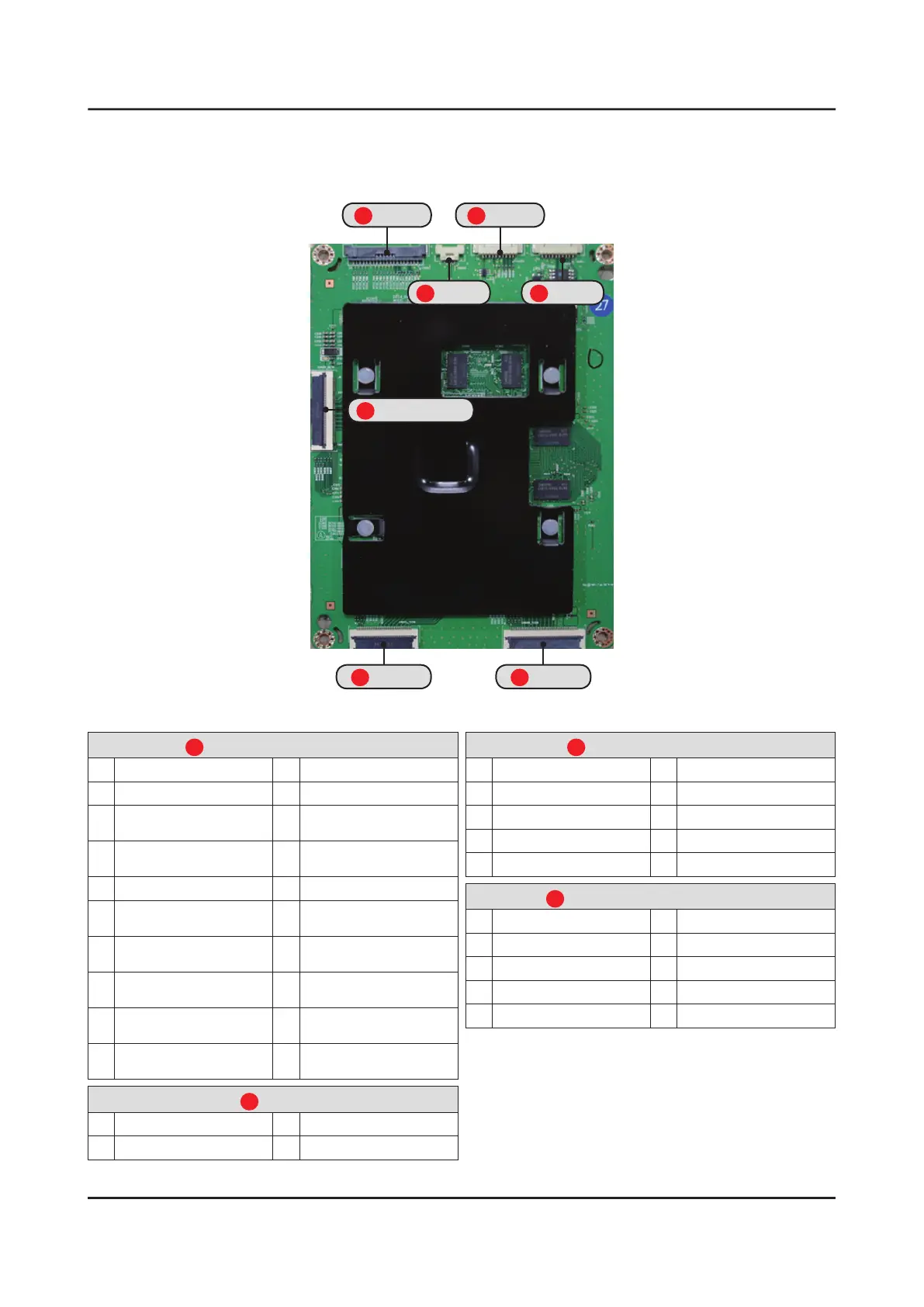

FRC Board Pin Map 
1
CN803 (TO LD BOARD)
1 DGND 11 PWM_DIMMING_OUT8
2 DGND 12 PWM_DIMMING_OUT9
3 PWM_DIMMING_OUT1 13
PWM_DIMMING_
OUT10
4 PWM_DIMMING_OUT2 14
PWM_DIMMING_
OUT11
5 DGND 15 DGND
6 PWM_DIMMING_OUT3 16
PWM_DIMMING_
OUT12
7 PWM_DIMMING_OUT4 17
PWM_DIMMING_
OUT13
8 PWM_DIMMING_OUT5 18
PWM_DIMMING_
OUT14
9 PWM_DIMMING_OUT6 19
PWM_DIMMING_
OUT15
10 PWM_DIMMING_OUT7 20
PWM_DIMMING_
OUT16
2
CN800
1 B3.3V_PW 3 UART_RX
2 UART_TX 4 DGND
3
CN802 (MICOM JTAG)
1 B3.3V_PW 6 M_TDO
2 M_NTRST 7 FP_NRESET
3 M_TDI 8 DGND
4 M_TMS 9 FRC_SDA_I2C
5 M_TCK 10 FRC_SCL_I2C
4
CN801(FLASH DOWNLOAD)
1 B3.3V_PW 6 SSPTXD
2 SSPFRM 7 DGND
3 SSPRXD 8 FP_NRESET
4 SSPWP 9 N.C
5 SSPCLK 10 N.C
