ANNEX. Exploded View & Part List [UN65JS9500FXZA TS01]

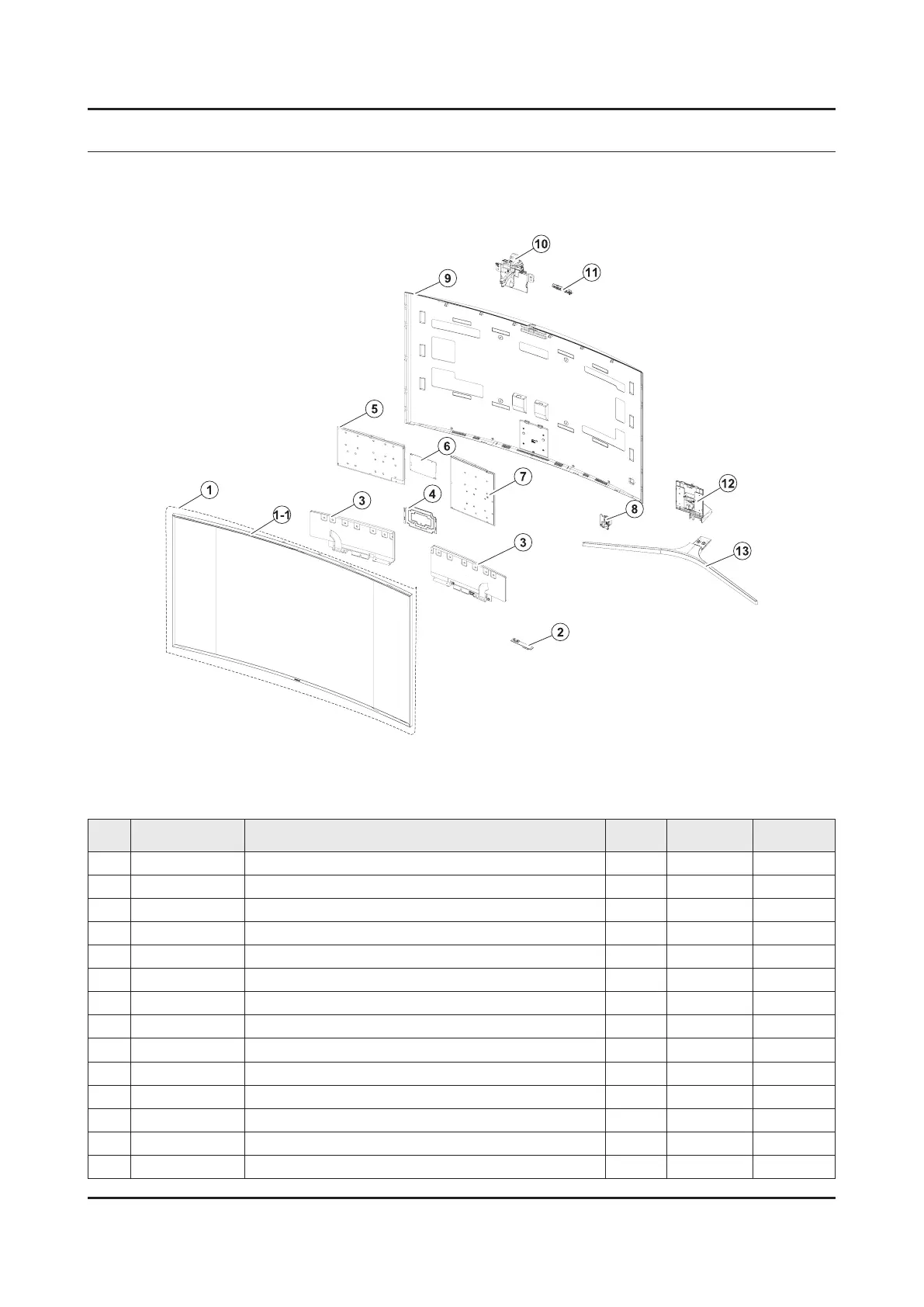

1-1. Exploded View
1-1-1. Parts List
No. Code No. Description & Specication Q’ty SA/SNA Remark
1 BN95-01956A PRODUCT LCD-SDC; CY-YJ065FLLV1V,JS9500,Ba 1 SA
1-1 BN96-35269A ASSY CHASSIS TOP P; JS9500 65,EGI-SECC,T0 1 SNA
2 BN96-35848A ASSY BOARD P-IR MODULE; JQ9500,FR-4 1 SA
3 BN96-34995A ASSY SPEAKER P-N9K 65INCH; 6ohm,12pin,10W 1 SA
4 BN96-36394A ASSY BRACKET P-STAND LINK; JS9500,65",EGI 1 SNA
5 BN44-00819A DC VSS-LED TV PD BD; L65SM9NC_FSM,L65SM9N 1 SA
6 BN94-08310G ASSY PCB MAIN; UJ9Y,65"AMERICA,KOREA 1 SA
7 BN44-00818A DC VSS-LED TV PD BD; L65SM9NA_FSM,L65SM9N 1 SA
8 BN96-35345G ASSY BOARD P-JOG FUNCTION; JS9000,FR-4,N. 1 SNA
9 BN96-35470A ASSY COVER P-REAR; JQ9500 65",PC+ABS GF15 1 SA
10 BN96-35688A ASSY MISC P-TV CAMERA; Harpy,W/W,15yr emb 1 SA
11 BN59-01194A NETWORK-WIFI MODULE; 11ac Combo,Internal 1 SA
12 BN96-35479B ASSY GUIDE P-STAND; JS9500 65",USA,ABS,HB 1 SA
13 BN96-35472B ASSY STAND P-BASE; JS9500 65",USA,ALDC,HA 1 SA
ANNEX-1
ANNEX. Exploded View & Part List
