Sandpiper S15 User Manual

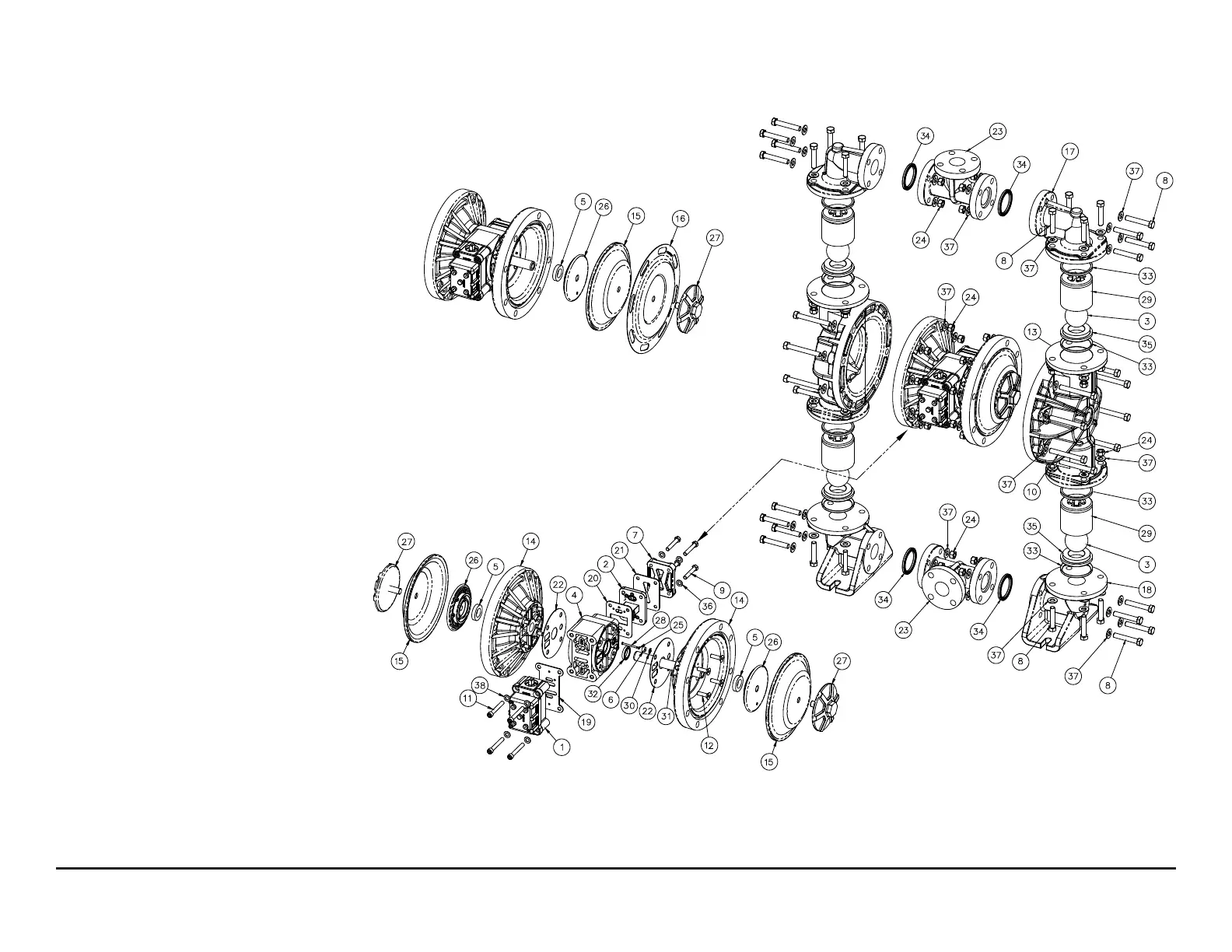

s15nmdl3sm-REV1207 Model S15 Non-Metallic Page 12
Composite Repair Drawing
Overlay Option
Drawing
Fluid End Section
Assembly
Air End Section
Assembly
476-253-000 AIR END KIT
Seals, O-Rings, Gaskets,
Retaining Rings, Air Valve
Sleeve & Spool Set
and Pilot Valve Assembly
476-254-000 AIR END KIT
(for Stroke Indicator Option)
Seals, O-Rings, Gaskets,
Retaining Rings, Air Valve
Sleeve & Spool Set
and Pilot Valve Assembly
476-255-354 WETTED END KIT
Santoprene Diaphragms,
Santoprene Balls and TFE Seals
476-255-360 WETTED END KIT
Nitrile Diaphragms,
Nitrile Balls and PTFE Seals
476-255-365 WETTED END KIT
Neoprene Diaphragms,
Neoprene Balls and PTFE Seals
476-255-633 WETTED END KIT
FKM Diaphragms,
PTFE Balls and PTFE Seals
476-255-635 WETTED END KIT
Neoprene Diaphragms,
PTFE Overlay Diaphragms,
PTFE Balls and PTFE Seals
476-255-654 WETTED END KIT
Santoprene Diaphragms,
PTFE Overlay Diaphragms,
PTFE Balls and PTFE Seals
476-256-640 WETTED END KIT
(For Spill Containment Pumps)
Neoprene Diaphragms,
PTFE Overlay Diaphragms,
PTFE Balls and PTFE Seals
