Sandpiper S15 User Manual

s15nmdl3sm-REV1207 Model S15 Non-Metallic Page 14

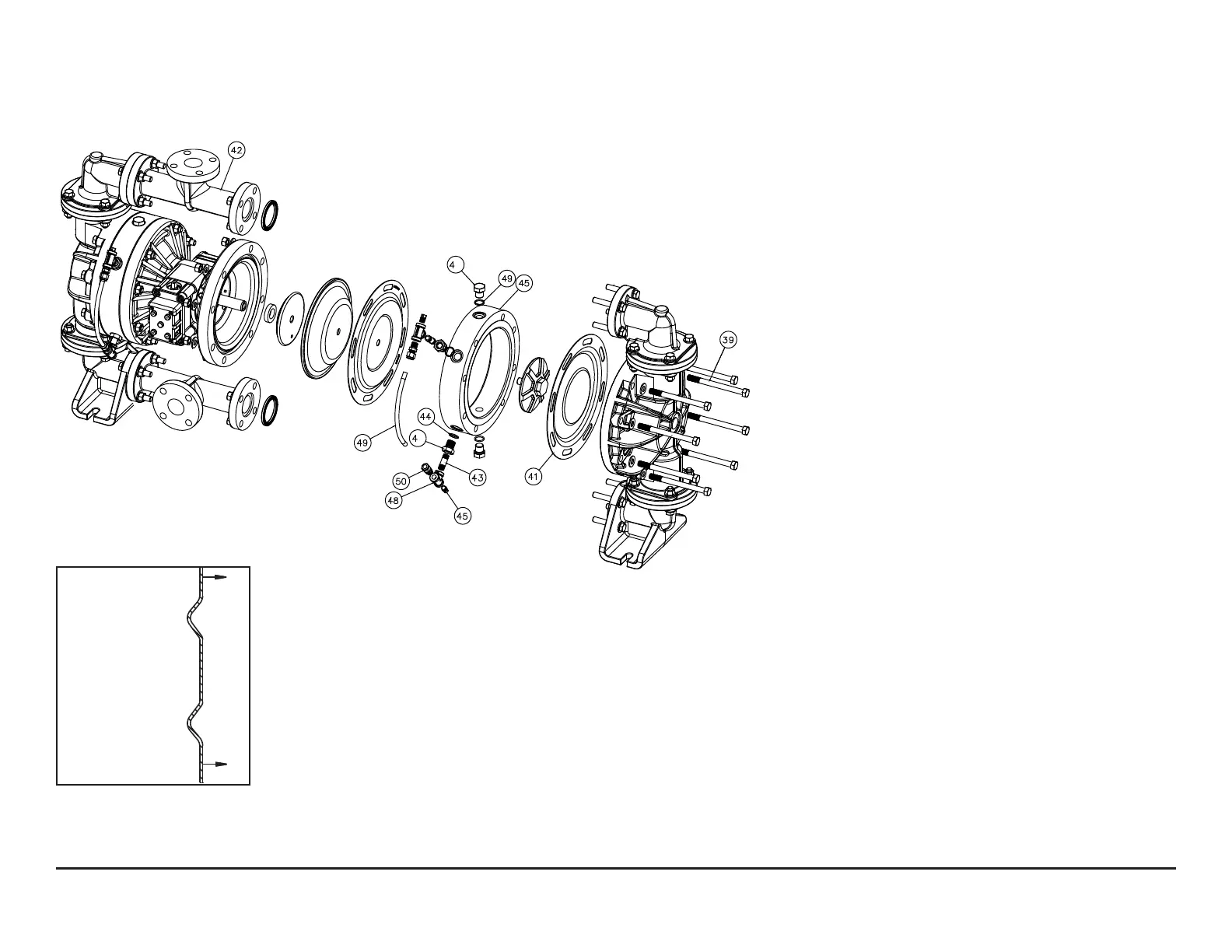

Spill Containment Option
S15 Spill Containment Repair Parts List
ITEM PART NUMBER DESCRIPTION QTY
1 031-146-000 Air Valve Assembly 1
(replaces 031-140-000)
031-147-000 Air Valve Assembly 1
(replaces 031-141-000)
39 170-102-115 Capscrew, Hex HD 1/2-13 x 6.00 16
(replaces 170-095-115)
170-102-308 Capscrew, Hex HD 1/2-13 x 6.00 16
45 196-189-520 Chamber, Spill Prevention 2
196-189-552 Chamber, Spill Prevention 2
41 286-120-600 Diaphragm, Pumping 2
42 518-198-520 Manifold 2
(replaces 518-197-520)
518-198-520E Manifold, 40mm DIN 2
(replaces 518-197-520E item #23)
518-198-552 Manifold 2
(replaces 518-197-552)
518-198-552E Manifold, 40mm DIN 2
(replaces 518-197-552E item #23)
43 538-022-110 Nipple, Pipe 4
538-022-308 Nipple, Pipe 4
44 560-078-611 O-Ring 8
45 618-003-110 Plug, Pipe 4
618-003-308 Plug, Pipe 4
46 618-025-110 Plug, Boss 4
618-025-308 Plug, Boss 4
47 618-031-110 Threaded Bushing 4
618-031-308 Threaded Bushing 4
48 835-005-110 Tee, Pipe 4
835-005-308 Tee, Pipe 4
49 860-055-606 Tube, Sight 2
50 866-060-110 Connector, Tube 4
Note:
Items # 41
the diaphragms
are to be installed
with the concave
side facing
toward the outer
chambers.
7
6
