Sandpiper S15 User Manual

s15nmdl3sm-REV1207 Model S15 Non-Metallic Page 16
1-J
1-D
1-F
1-G
1-H
1-G
1-E
1-C
1-A
1-A
1-B
1-C
1-E
1-G
1-H

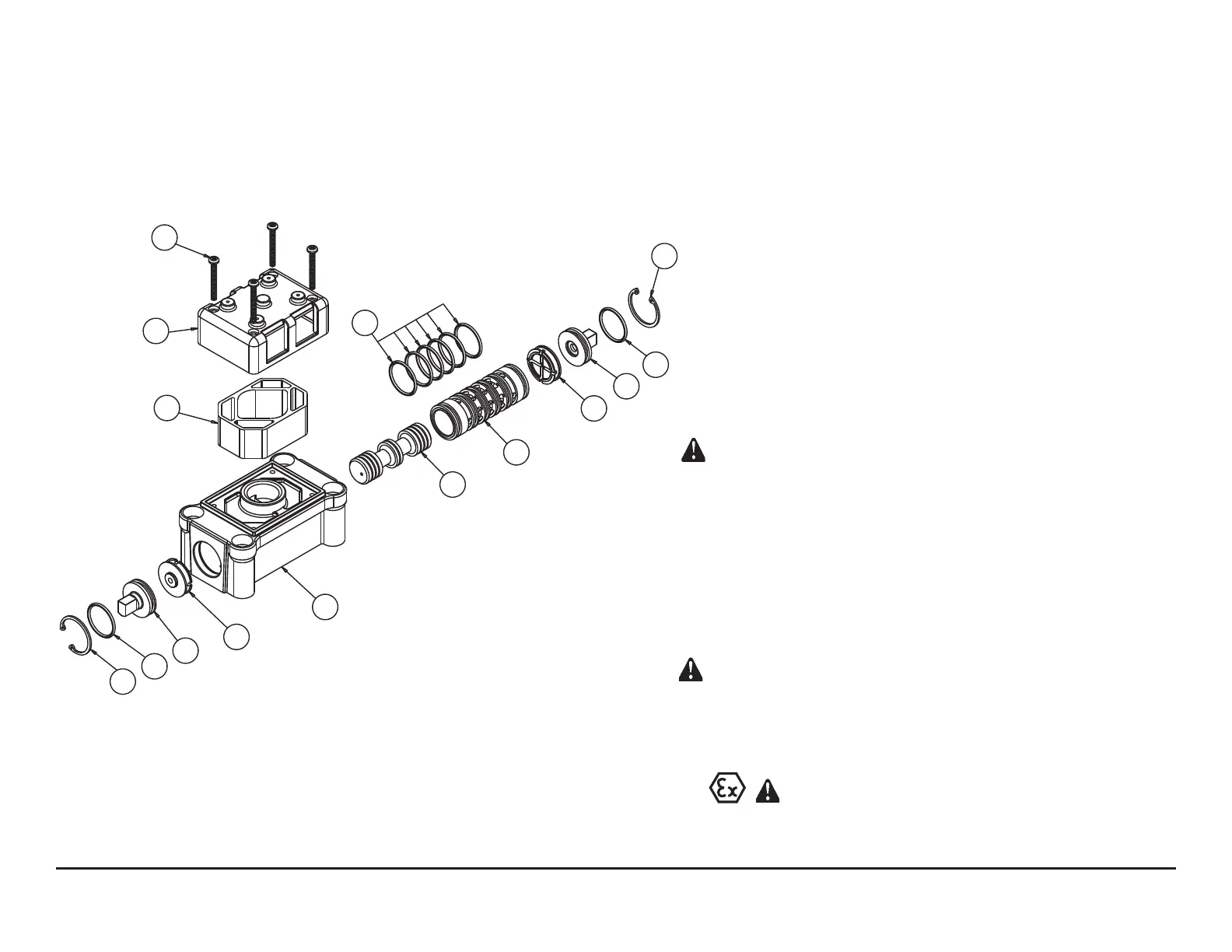

Air Distribution Valve Assembly Drawing
S15 Design Level 3
AIR VALVE ASSEMBLY PARTS LIST
Item Part Number Description Qty
1 031-140-000 Air Valve Assembly 1
1-A 031-139-000 Sleeve and Spool Set 1
1-B 095-094-551 Body, Air Valve 1
1-C 132-029-552 Bumper 2
1-D 165-096-551 Cap, Mufer 1
1-E 165-115-552 Cap, End 2
1-F 530-028-550 Mufer 1
1-G 560-020-360 O-Ring 8
1-H 675-044-115 Ring, Retaining 2
1-J 710-015-115 Screw, Self-tapping 4
For Pumps with Alternate Mesh, Sound Dampening
Mufflers or Piped Exhaust:
1 031-141-000 Air Valve Assembly 1
(Includes all items used on 031-140-000
minus items 1-D, 1-F & 1-J)
AIR VALVE ASSEMBLY PARTS LIST
Item Part Number Description Qty
1 031-140-001 Air Valve Assembly 1
1-A 031-139-000 Sleeve and Spool Set 1
1-B 095-094-559 Body, Air Valve 1
1-C 132-029-552 Bumper 2
1-D 165-096-559 Cap, Mufer 1
1-E 165-115-552 Cap, End 2
1-F 530-028-550 Mufer 1
1-G 560-020-360 O-Ring 8
1-H 675-044-115 Ring, Retaining 2
1-J 710-015-115 Screw, Self-tapping 4
For Pumps with Metal Mesh Muffler or Piped Exhaust:
1 031-141-001 Air Valve Assembly 1
(Includes all items used on 031-140-001
minus items 1-D, 1-F & 1-J)
Note: ATEX Compliant
