s15nmdl3sm-REV1207 Model S15 Non-Metallic Page 20

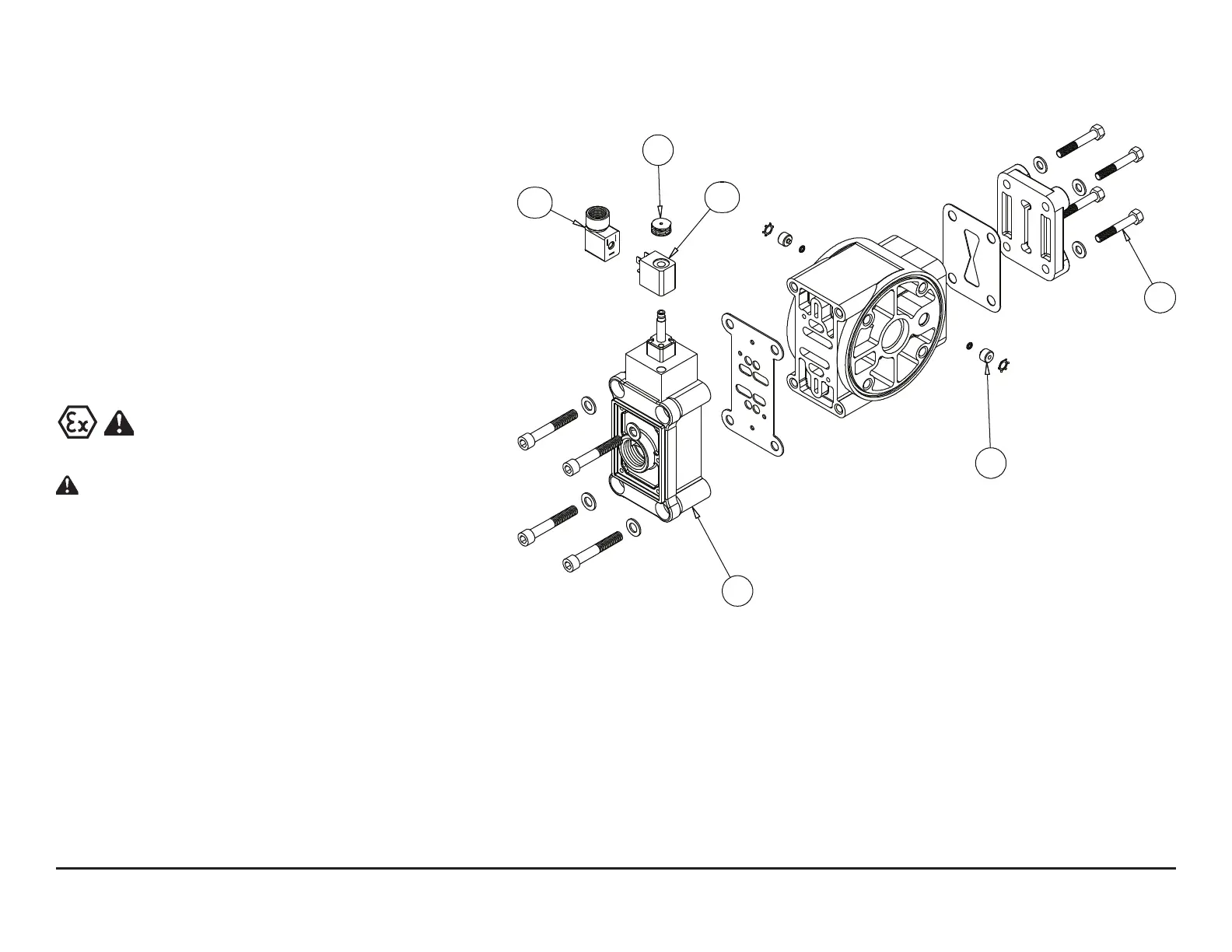

Solenoid Shifted Air Valve Drawing
53
51
52
51
55
54
SOLENOID SHIFTED AIR VALVE PARTS LIST
(Includes All Items Used on Composite Repair Parts List
Except as Shown)
Item Part Number Description Qty
51 893-097-000 Solenoid Valve, NEMA4 1
52 219-001-000 Solenoid Coil, 24VDC 1
219-004-000 Solenoid Coil, 24VAC / 12VDC 1
219-002-000 Solenoid Coil, 120VAC 1
219-003-000 Solenoid Coil, 240VAC 1
53 241-001-000 Connector, conduit 1
54 170-029-330 Capscrew, Hex HD 5/16-18 x 1.50 4
55 618-051-150 Plug 2
For Explosion Proof Solenoid Valve
52 219-009-001 Solenoid Coil, 120VDC 60 Hz 1
219-009-002 Solenoid Coil, 240VDC 60 HZ 1
219-009-003 Solenoid Coil, 12VDC 1
219-009-004 Solenoid Coil, 24VDC 1
219-009-005 Solenoid Coil, 110VDC 50 Hz 1
219-009-006 Solenoid Coil, 230VDC 50 Hz 1
Note: Pumps equipped with Explosion-Proof
Soleniod Coils are ATEX compliant.
