11

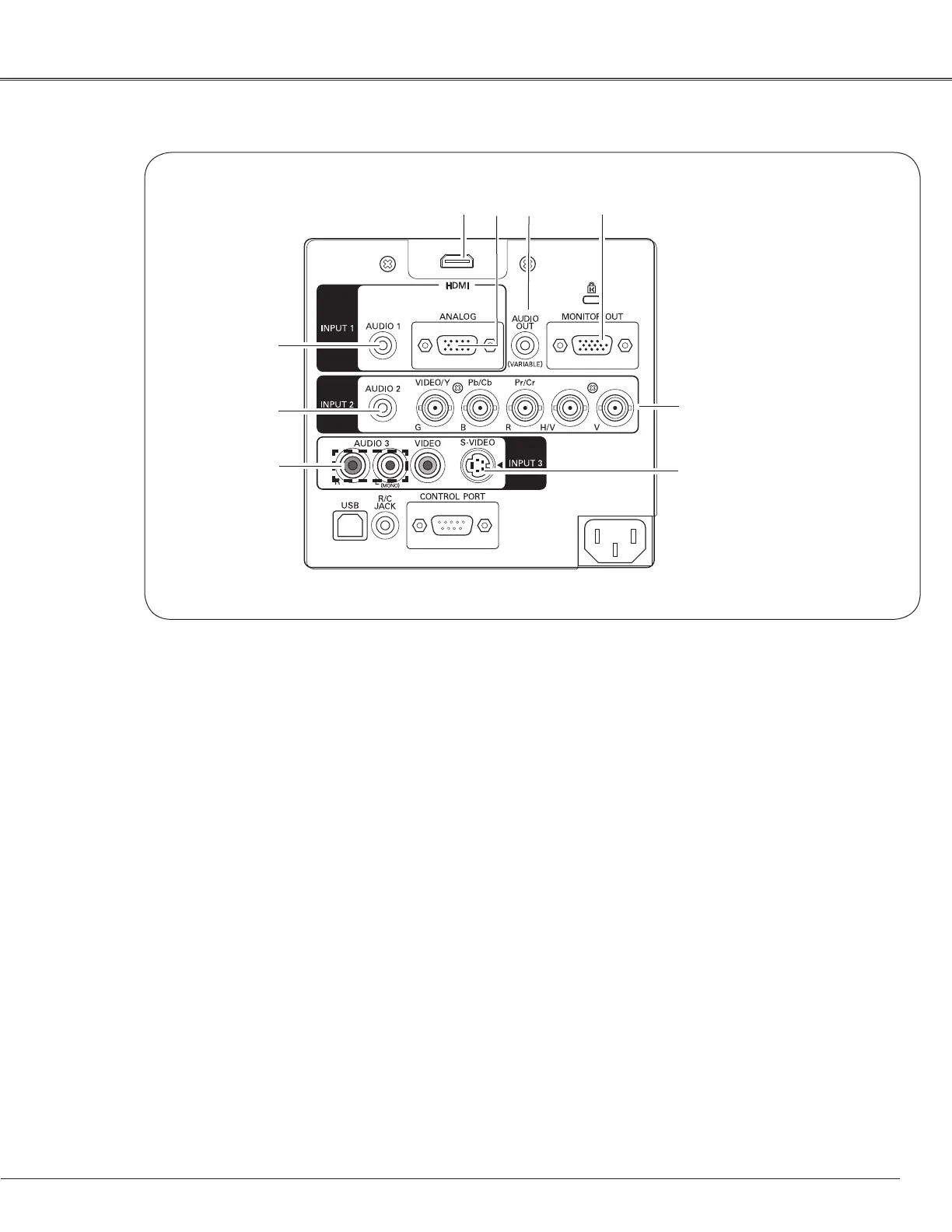

Side Terminal
q
w e r
t
i
u
yAUDIO 2 JACK
Connect the audio output (stereo) signal from a
computer or video equipment connected to i to
this jack (p.22).
tAUDIO 1 JACK
Connect the audio output (stereo) signal from a
computer or video equipment connected to q or
w to this jack (p.22).
uAUDIO 3 JACKS (L(MONO)/R)
Connect the audio output signal from video
equipment connected to o or !2to these jacks
(p.22). For a mono audio signal (a single audio jack),
connect it to the L (MONO) jack.
i5 BNC INPUT JACKS
Connect the component or composite video output
signal from video equipment to VIDEO/Y, Cb/Pb,
and Cr/Pr jacks or connect the computer output
signal (5 BNC Type [Green, Blue, Red, Horiz. Sync,
and Vert. Sync.]) to G, B, R, H/V, and V jacks (pp.20-
21).
wCOMPUTER INPUT TERMINAL (ANALOG)
Connect the computer (or RGB scart) output signal
to this terminal (p.20).
qHDMI TERMINAL
Connect the HDMI signal (including sound signal)
from video equipment or the DVI signal from
computer to this terminal (p.20).
o
Part Names and Functions
rMONITOR OUTPUT TERMINAL (ANALOG)
This terminal outputs the video signal from
computer to external video equipment (p.21).
eAUDIO MONITOR OUTPUT JACK (VARIABLE)
This jack outputs the audio signal from computer
or video equipment to external audio equipment
(p.22).
y
oS-VIDEO INPUT JACK
Connect the S-VIDEO output signal from video
equipment to this jack (p.21).
