!1R/C JACK
When using the wired remote control, connect the
wired remote control to this jack with a remote
control cable (not supplied).

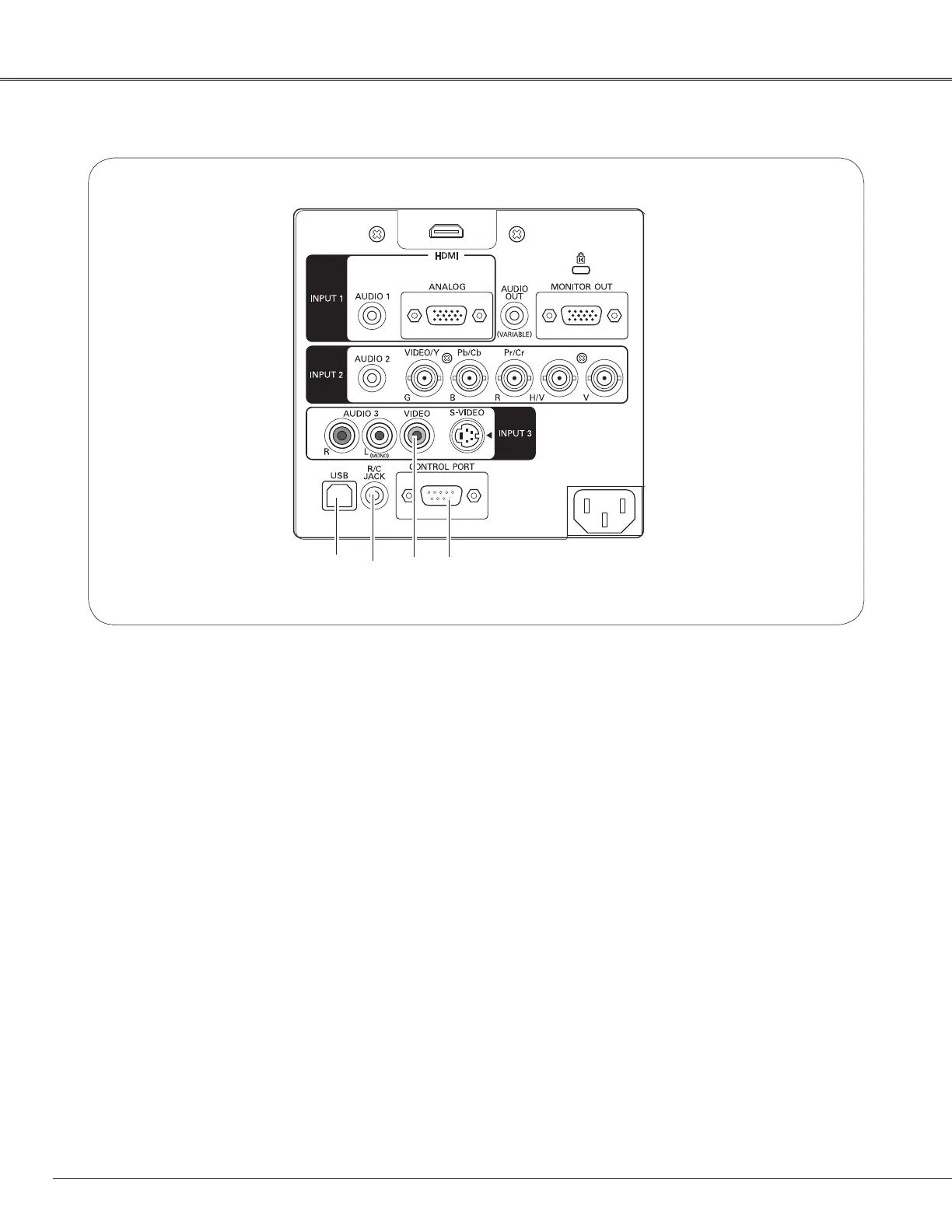

Side Terminal
!3CONTROL PORT CONNECTOR
When controlling the projector with RS-232C,
connect the control equipment to this connector
with the serial control cable.
Part Names and Functions
!0USB CONNECTOR (Series B)
Use this connector when controlling a computer
with the remote control of the projector. Connect
the USB terminal of your computer to this
connector with the supplied USB cable (p.20).
!2VIDEO INPUT JACK
Connect the composite video output signal from
video equipment to this jack (p.21).
