-11-
FN906

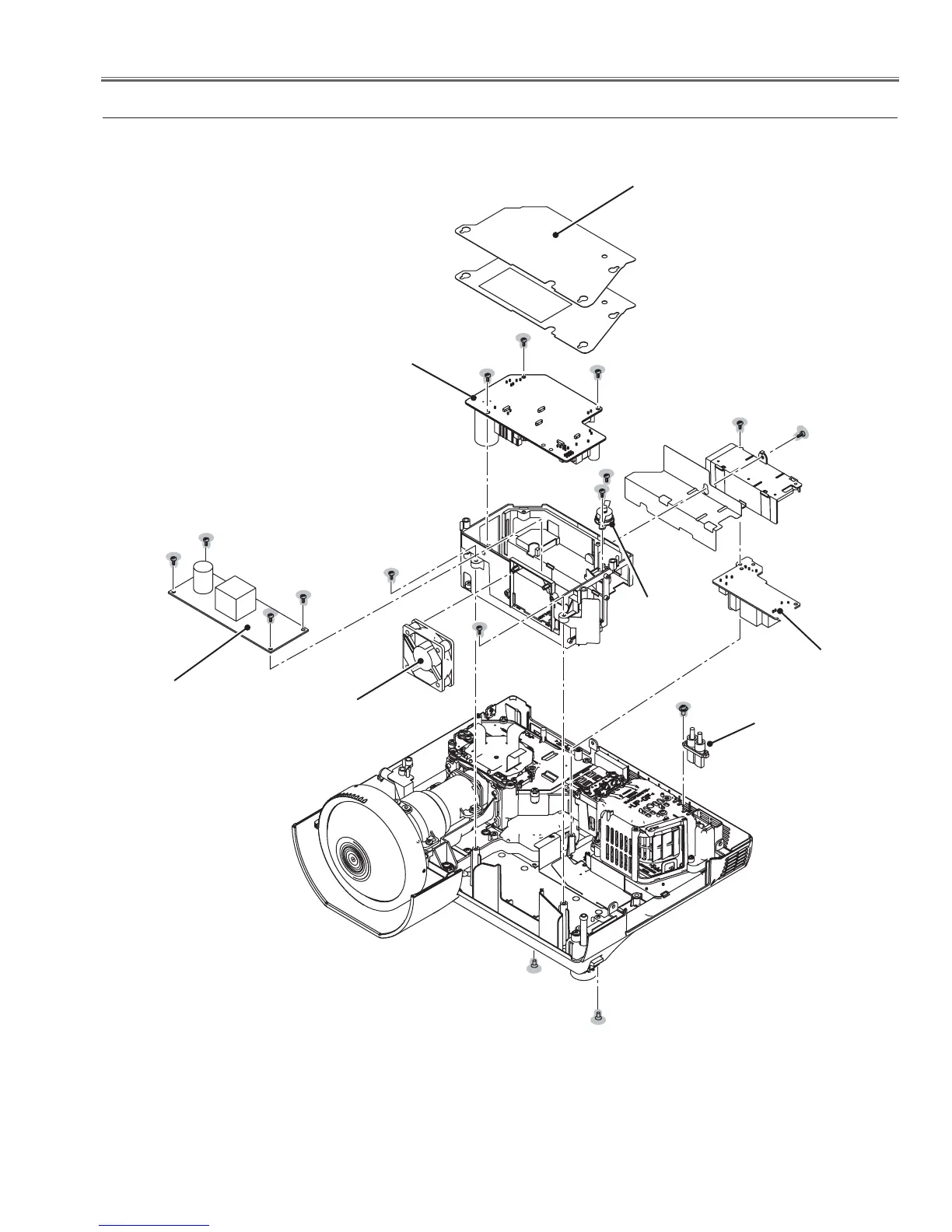

Mechanical Disassembly
c Power, Line Filte, Ballast Board, Thermal Sw(SW902), Fan(FN906) removal
Fig.3
Power board
Ballast board
Isolation sheet
Ballast socket
Thermal switch
(SW902)
(T3x6)x4
(T3x6)
(T3x6)x2
(T3x6)
(T3x6)x4
Line Filter board
(M3x8)
(T3x6)(Black)
(T3x6)
(T3x6)
(T3x6)(Black)
