Sanyo PLC-XK2600 Service Manual

-16-
Mechanical Disassembly
v Mounting Duct and fans(FN001, FN003, FN004, FN005) removal

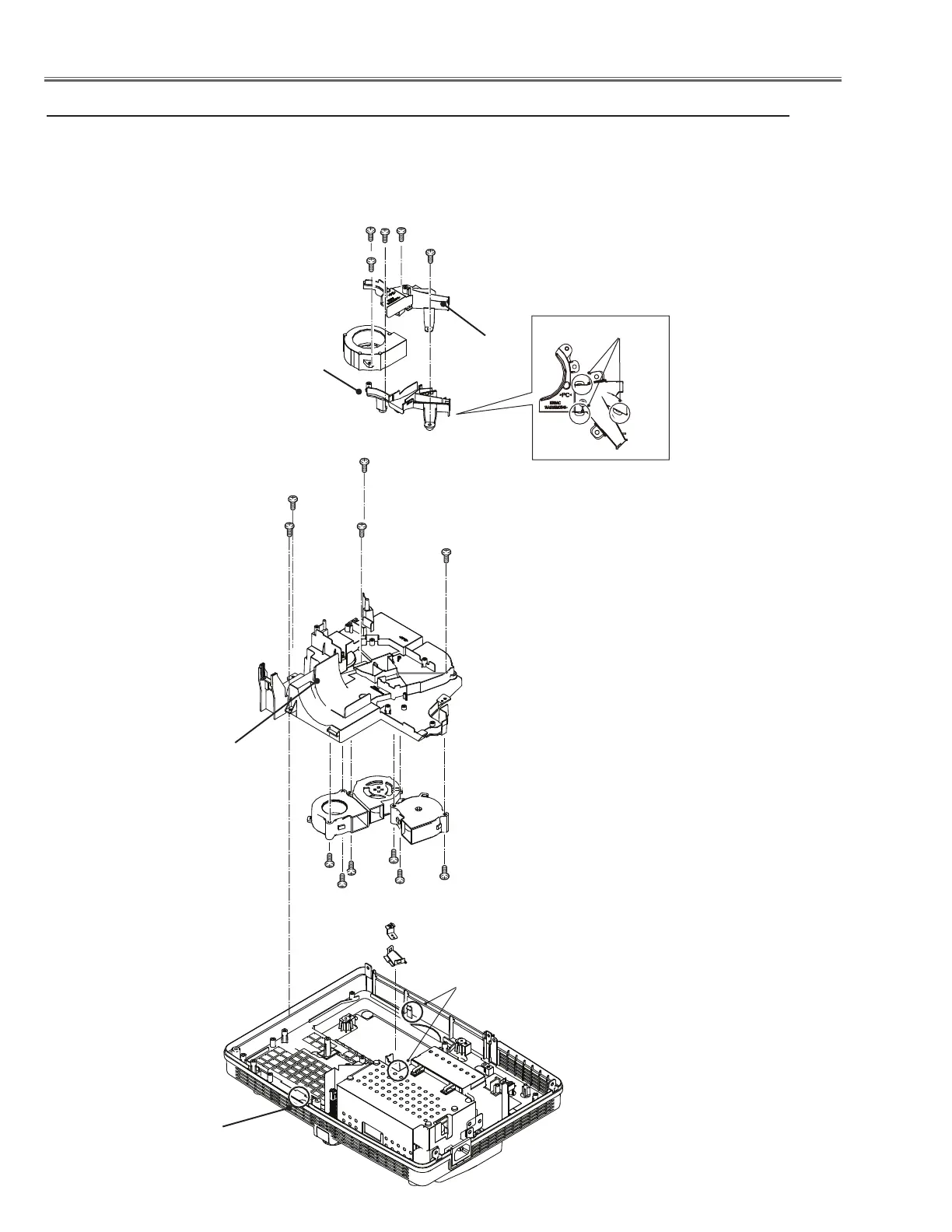

Fig.4
FN004
1. Remove 3 screws A(T3x8) and 2 screws B(T3x12) to remove the fan(FN001), fan duct top and bottom.
2. Remove 5 screws C(T3x8) and unhook 3 hooks to remove the duct top.
3. Remove the Cover duct shield, remove 2 screws D(T3x12) to remove the fan(FN005).
Remove 2 screws E(T3x12) and 2 screws F(T3x30) to remove the fans(FN003,FN004)
A (T3x8)x3
B(T3x12)x2
FN001
C
C
A
A
Fan duct bottom
Fan duct top
C(T3x8)x5
C
C
C
Duct top
D(T3x12)x2
FN005
FN003
B
F
E
D
E(T3x12)x2
F(T3x30)x2
Cover duct shiled
Hook
Hooks
Hooks
Fan duct ass'y
