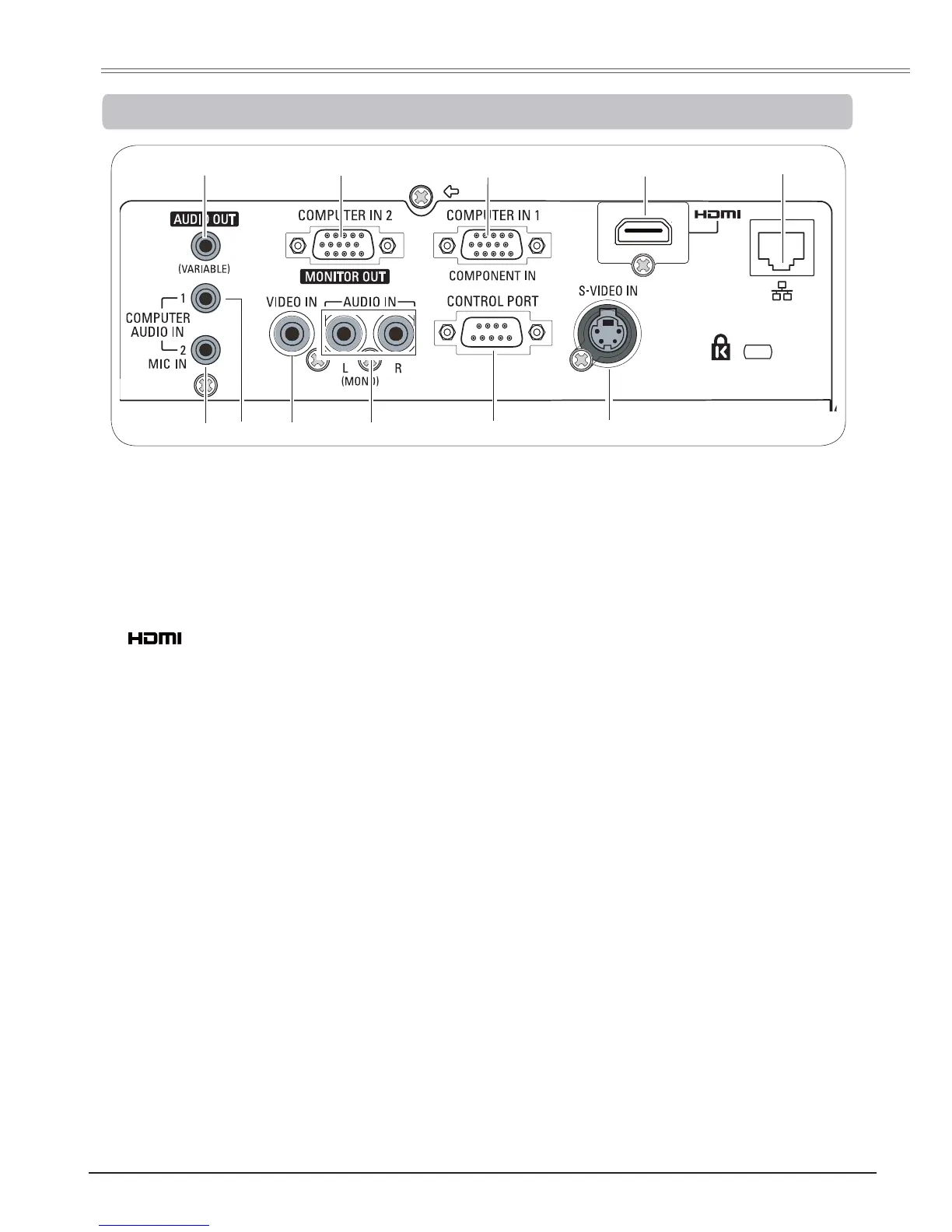

Part Names and Functions
5HDU7HUPLQDO
③
④
①⑤
⑥
⑪
⑦
⑨
⑧
⑩
⑥ 69,'(2,1
Connect the S-VIDEO output signal from
video equipment to this jack (p.15).
⑧ $8',2,1
Connect the audio output signal from
video equipment connected to ⑥ or ⑨ to
this jack. For a mono audio signal (a single
audio jack), connect it to the L (MONO)
jack (p.15).
⑩ &20387(5$8',2,1
Connect the audio output (stereo) from a
computer or video equipment connected
to ② or ③to this jack (pp.14, 16).
⑨ 9,'(2,1
Connect the composite video output signal
to this jack (p.15).
③ &20387(5,1&20321(17,1
Connect output signal from a computer, RGB
scart 21-pin video output or component video
output to this terminal (pp.14,16).
⑤ $8',22879$5,$%/(
Connect an external audio amplifier to this
jack (pp.14-16).
This terminal outputs sound from AUDIO IN
terminal (⑧, ⑩ or ⑪), or HDMI terminal (2)
(digital audio).
Never plug headphones and earphones into
this jack.
① /$1&RQQHFWLRQ7HUPLQDO
Connect the LAN cable (refer to the owner’s
manual of "Network Set-up and Operation").
⑦ &21752/3257
When controlling the projector with
RS-232C, connect the control equipment
to this connector with the serial control
cable.
④ &20387(5,1021,725287
– Connect computer output to this terminal
(p.14).
– This terminal can be used to output the
incoming analog RGB and Component
signal from COMPUTER IN 1/
COMPONENT IN terminal to the other
monitor (pp.14,16).
⑪ &20387(5$8',2,10,&,1
Connect the audio output (stereo) from a
computer or video equipment connected
to ④ to this jack. Or connect the MIC to
the this jack (pp.14, 16).
②
② +'0,7HUPLQDO
Connect the HDMI signal (including sound
signal) from video equipment or from
computer to this terminal (pp.14, 15).
  is registered trademarks of HDMI
Licensing, LLC.
