-13-

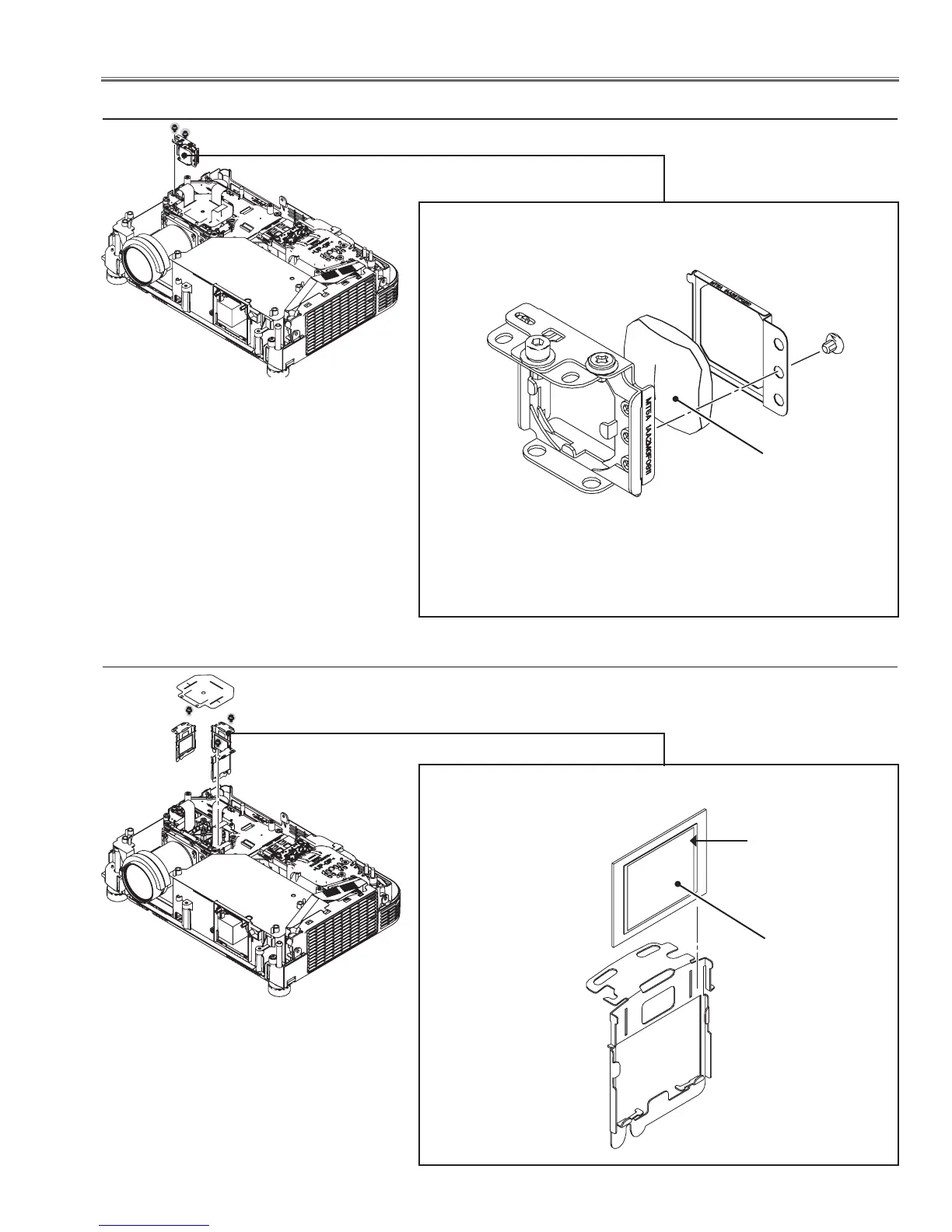

Optical Pats Disassembly
c Relay lens disassembly
Relay lens
Relay lens Ass'y
(M2.5x5)x2
(M2x3)
v Polarized glass-in disassembly
Polarized glass
Polarized glass-in Ass'y
(M2.5x5)x1
Fig.3
Fig.4
Film side
