-15-

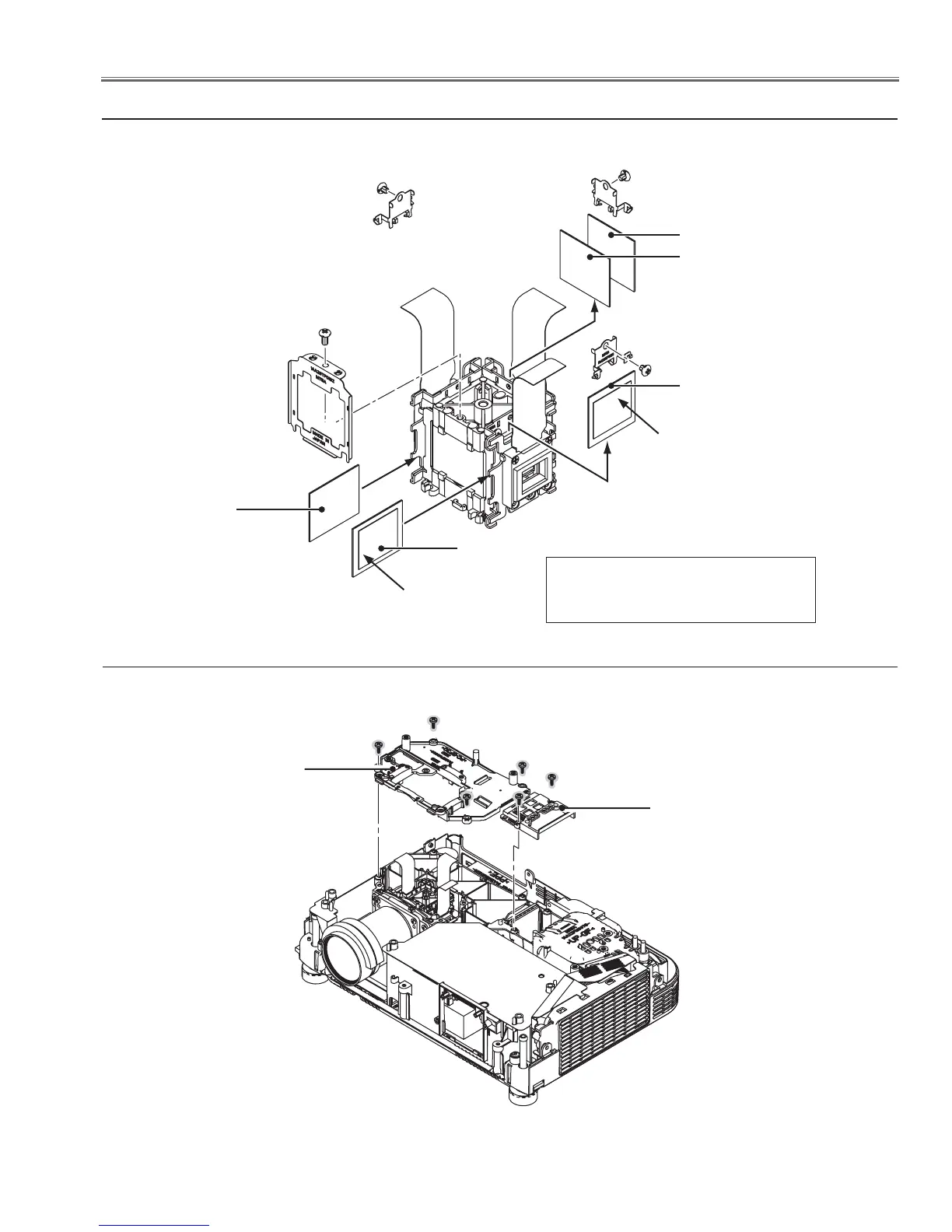

Optical Parts Disassembly
Fig.6
m Optical Unit Top removal
(M3x8)x4
(M3x8)x2
Optical top cover
Optical top cover-A
Fig.7
n Polarized glass, Pre-polarized glass removal
Polarized Glass(G)
Pre-Polarized Glass(G)
Polarized Glass(R)
* Mount the polarized glasses as the
film attached side comes to the LCD
panel side.
Polarized
Glass(B)
(M2x2)
(M2x2)
(M2x2)
Film
(Blue)
(Red)
(Green)
Pre-Polarized Glass(B)
Film
(M2x4)
