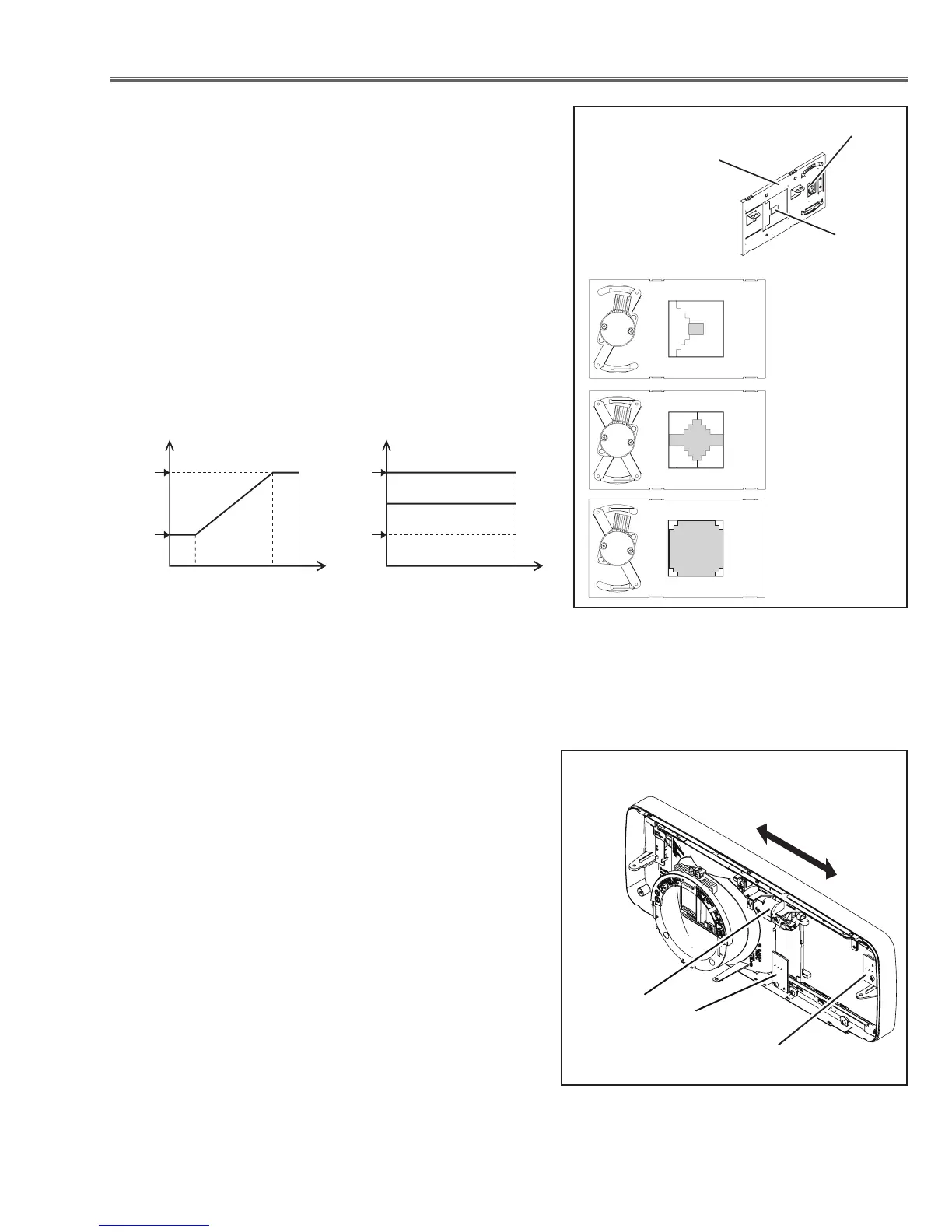

● Description of Motor driving circuit
Lamp Iris Motor and Lens Iris Motor
The lamp iris and the lens iris are equipped for the expansion of
visible contrast level. The operation of them is varied according to
"Image Level Selection" and their user menu.
Lamp Iris Motor
The lamp iris unit is located in the front of lamp. It is controlled by
the PWM signal, which is varied based upon the average luminance
level of the input image signal, from pin 40 of IC301. When the
image becomes darker, the lamp iris will be closed, and when the
image becomes brighter, it will be opened.
Door Motor
The projector provides 2 door switches. The door switch-1 (SW8801
on DOOR SW_1 board) turns ON, when the slide shutter is opened.
The door switch-2 (SW8811 on DOOR SW_2 board) turns ON, when
the slide shutter is closed.
If the slide shutter is half-open or close, the lamp does not light.
When turning the projector on, the lamp starts light after SW8801
turning on.
If the slide shutter error occurs during opertion, the POWER
indicator will blink orange and the projector will go to stand-by
mode after cooling.
LAMP IRIS UNIT
WINDOW
(variable)
MOTOR
● Lamp iris unit
DOOR SW_2 BOARD
DOOR SW_1 BOARD
MOTOR
OPEN
CLOSE
● Door motor
CLOSE
(at dark image)
CENTER
OPEN
(at bright image)
WINDOW EXTENSION
Auto mode
APL of input signal
(OPEN)
(CLOSE)
WINDOW EXTENSION
Open mode
Close mode
APL of input signal
(OPEN)
(CLOSE)
