Sanyo PLV-Z2000 Service Manual

Turn the projector on and press the MENU button to display the
On-Screen Menu. Select the Setting Menu with the Point ed
buttons. Press the Point 8 or OK buttons to access the submenu
items.
1
Put the blower’s nozzle into a hole.
2
Blow air into the projector with the blower watching the position
of the dust from the screen.
3
Set the projector back into the right position, then press any
button on the top control or on remote control to quit the
Cleaning function.
4
5
Clean by using the Cleaning function in the Setting Menu
Select Cleaning and then press the OK or Point 8 buttons. The
screen is blacked out temporarily.
Turn the projector over. Put your finger on hole over's tab and
pull to open the hole cover.
When cleaning is done, pull the blower out of the hole and
replace the hole cover.
6
7
* Do not open the hole cover except when you clean the inside of the
projector to prevent foreign matters from getting into the projector.
If it is open especially while operating the projector, the optical parts
could damage.
Which hole to put the nozzle in?
When you look at the screen:
● When a red spot (dust) is showed up, put the nozzle into the R
panel cleaning holes.
● When a green spot (dust) is showed up, put the nozzle into
the G panel cleaning holes.
● When a blue spot (dust) is showed up, put the nozzle into the
B panel cleaning holes.
Wave the nozzle back and forth inside of the projector.
(Do not attempt to bend the nozzle.)
Use only the supplied blower and nozzle.
Do not use a commercially available compressed
air duster. It causes the interior of the projector to
malfunction with release of cold liquid propellant. We could
not guarantee the malfunction of breakage by using other
tools.
B
R
G
B
R
G
Green
Red
Blue
LCD Panel
LCD Panel
BOTTOM VIEW
Put your finger on the
hole cover’s tab and
pull.
The nozzle will go no
further than a certain
point when it is put
into the hole. Do not
attempt to push the
nozzle further in, or
it could break and be
stuck inside of the
projector.

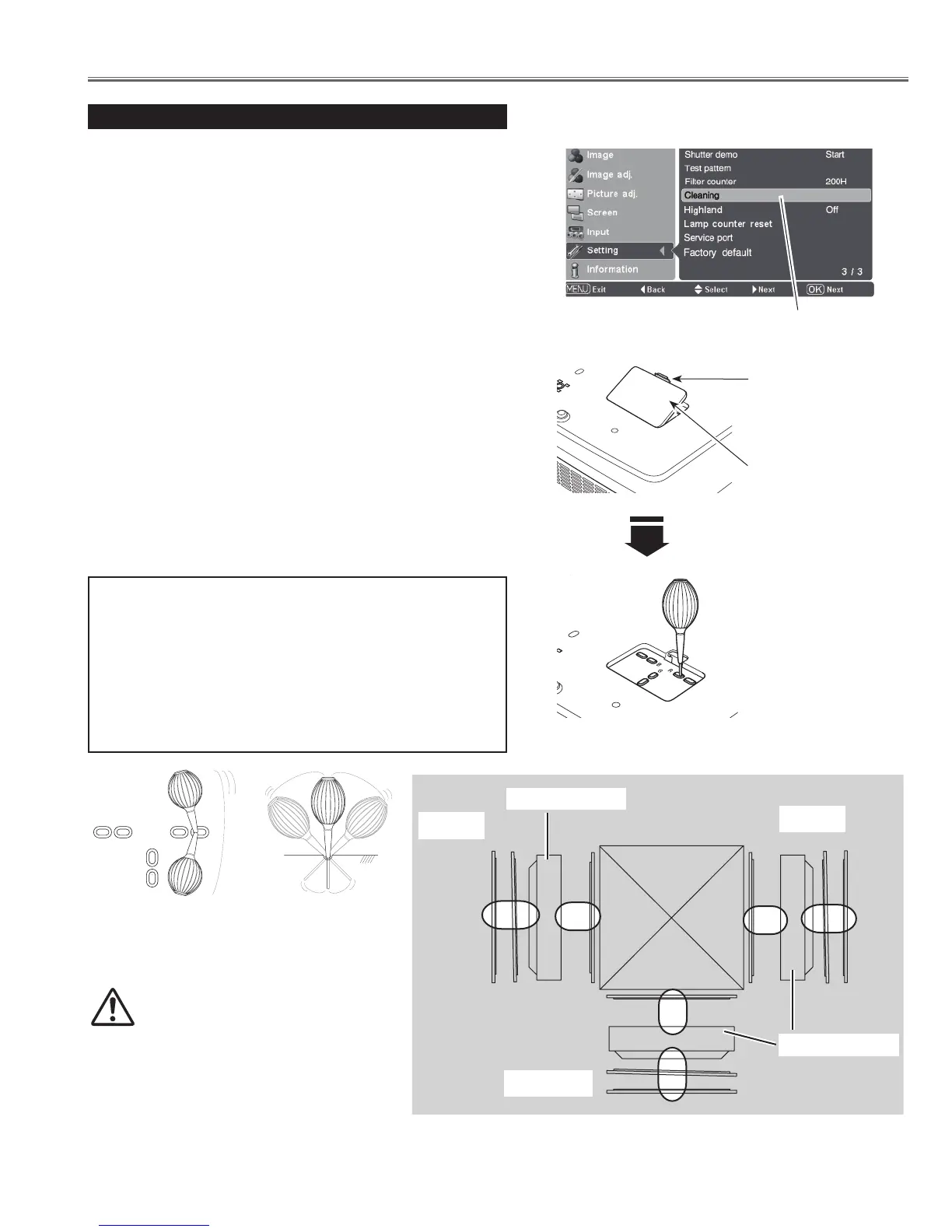

Cleaning
Select Cleaning in the
Setting Menu.
Tab
Hole cover
- 9 -
Maintenance and Cleaning

Sanyo PLV-Z2000 Specifications

General

Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Focus	Manual
Digital zoom	2 x
Focal length range	22.6 - 45.3 mm
RS-232 ports	1
Dimensions (WxDxH)	400 x 346 x 146 mm
Power requirements	100 - 240V
Connectivity technology	Wired
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Full HD	Yes
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	2
Noise level	26 dB
Power consumption (typical)	240 W

Weight and Dimensions

Weight	7300 g
