Sanyo PLV-Z2000 Service Manual

- 16 -

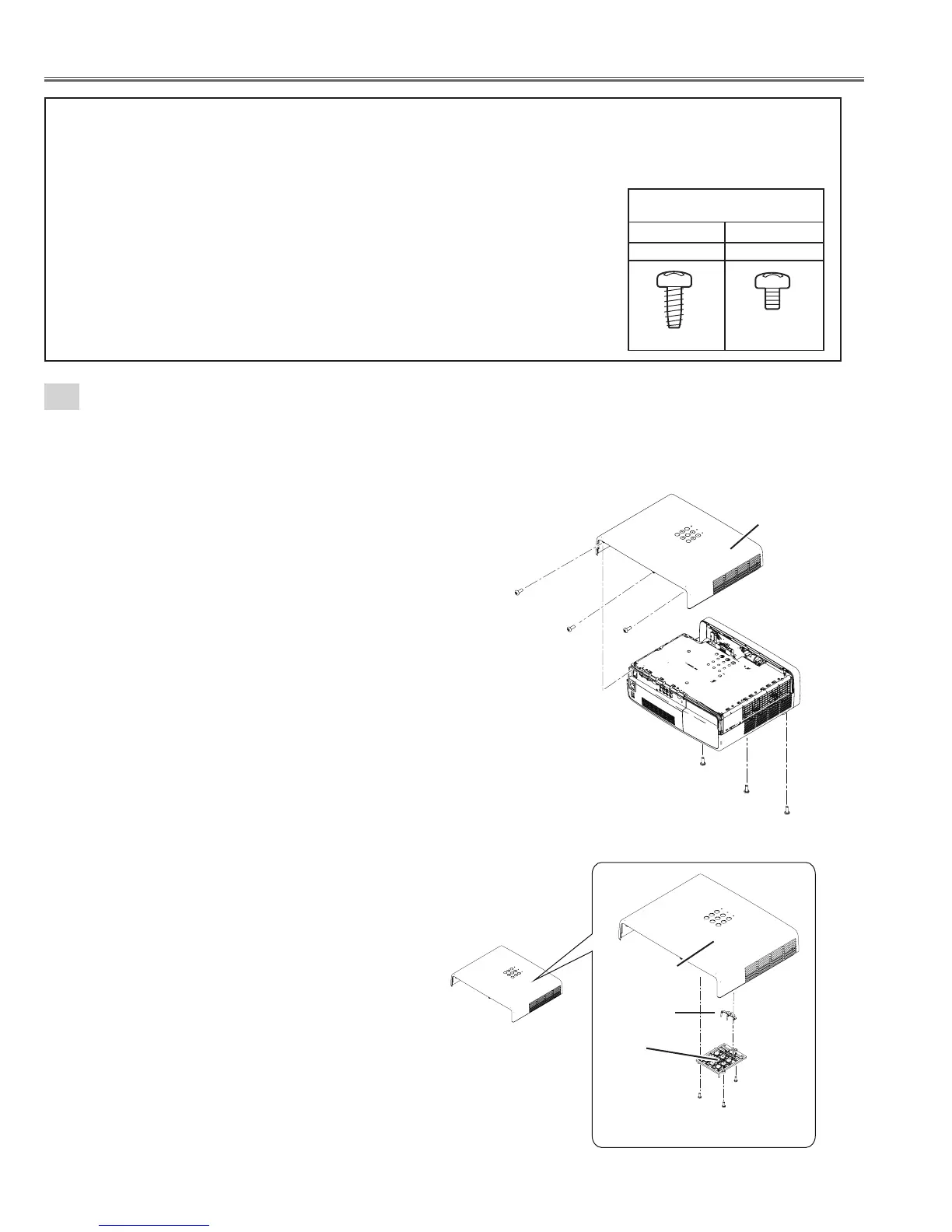

■ Mechanical disassemblies
1
Cabinet top ass'y removal.
Disassemble should be made following procedures in numerical order.
Following steps show the basic procedures, therefore unnecessary step may be ignored.
Caution:
The parts and screws should be placed exactly the same position as the original other-
wise it may cause lose of performance and product safety.
The wiring method of the leads and ferrite cores should be returned exactly the same
state as the original, otherwise it may cause lose of performance and product safety.
Screws Expression
(Type Diameter x Length ) mm
T type M Type
Tapping screw Machine screw
1. Remove the 3 screws-A(M3x10) from the bottom side.
2. Remove the 3 screws-B(M3x8) and remove the Cabinet top ass'y.
3. Remove the 3 screws-C, remove the Button and DEC. LED.
A
A
A
B
B
B
Cabinet top assy
Cabinet top assy
Cabinet top
DEC. LED
Button
C
C
C

Sanyo PLV-Z2000 Specifications

General

Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Focus	Manual
Digital zoom	2 x
Focal length range	22.6 - 45.3 mm
RS-232 ports	1
Dimensions (WxDxH)	400 x 346 x 146 mm
Power requirements	100 - 240V
Connectivity technology	Wired
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Full HD	Yes
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	2
Noise level	26 dB
Power consumption (typical)	240 W

Weight and Dimensions

Weight	7300 g
