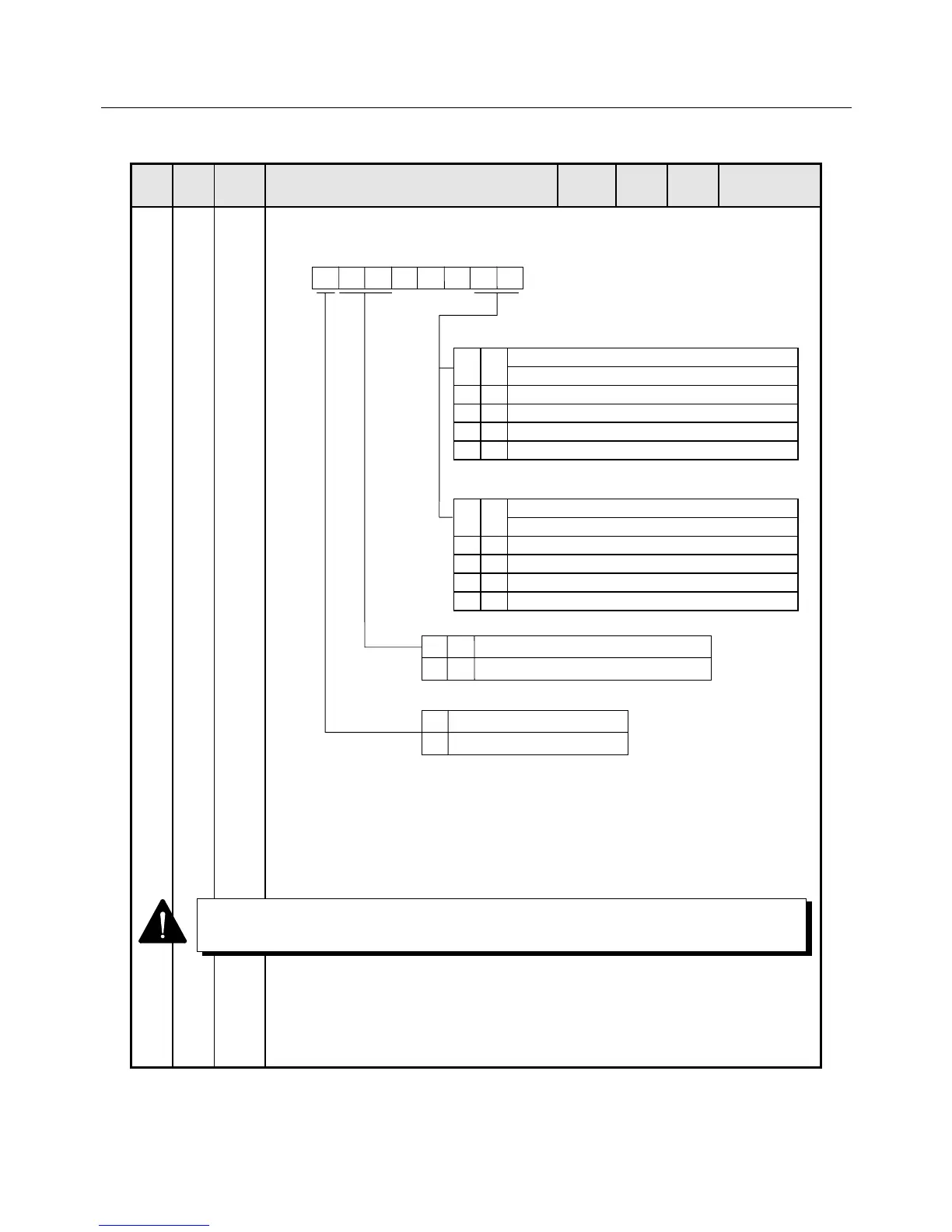

7. EXPLANATION OF PARAMETERS
7－45
Mode Page
Abbre-
viation
Name and description
Standard
value
Unit
Setting
range
Remarks
2 0 PMOD Position command pulse train form
② Code + Pulse train
The minimum pulse width values shown at bit 0/1 of the digital filter are for both "H" and "L"
pulses.
bit6 bit5 Command pulse form
1 0 Code + Pulse train
When bit7 = 0
bit bit Digital filter for command pulse input
1 0 Minimum pulse width
0 0 0.8 µs
0 1 0.2 µs
1 0 0.4 µs
1 1 1.6 µs
When bit7 = 1
bit bit Digital filter for command pulse input
1 0 Minimum pulse width
0 0 3.2 µs
0 1 0.8 µs
1 0 1.6 µs
1 1 6.4 µs
PMOD
012
345 6
7
0 High speed
1 Low speed (1/4)
Switching of digital filter
