14 Operating Instructions Stainless Steel In-Line Filter Holder Type 16274
Installation
4.3 Unpacking
Procedure
t Unpack the device.
t Check the completeness of the device and all its components (see
Chapter “4.1 Scope of Delivery”, page 13).
t Keep all the parts of the original packaging, e.g. to return the device.
4.4 Mounting the Device
Procedure

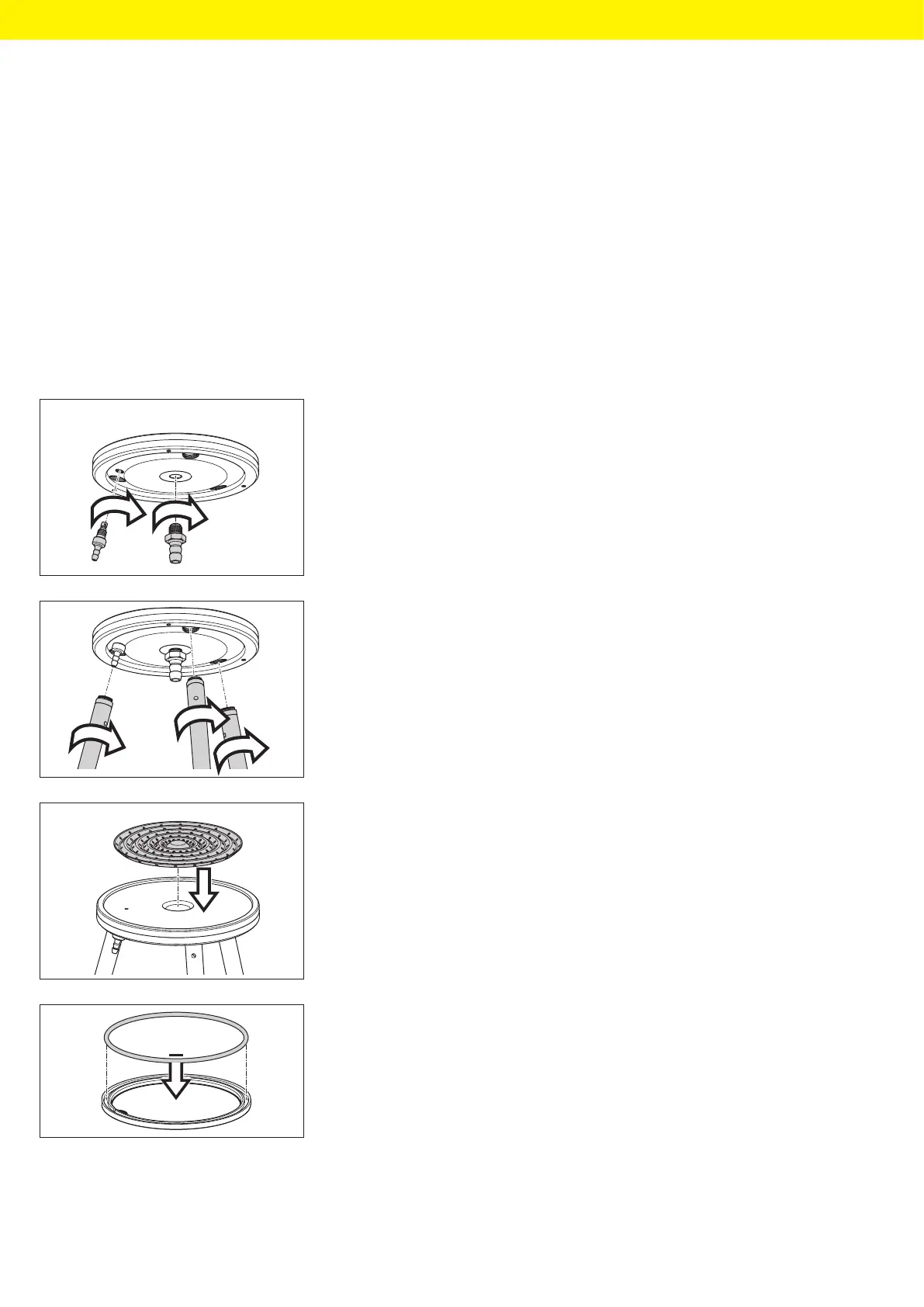

t Screw a valve onto the bottom of the lower part of the device.
t Screw on a tube nozzle or the filling device with manual operation
(accessory) at the bottom of the lower part of the device.
t Tighten the tube nozzle with a spanner.
t Screw the three device legs into the threads on the bottom of the lower
part of the device.
t Position the device on the three legs.
t Place the perforated sheet centrally on the lower part of the device with
the outer edge facing upwards.
t Push one of the two O-rings into the groove provided on the filter
support.
