Cabling Diagram (adapter cable:
12-contact round – 25-pin D-Sub;
order no YCC01-0016M3)
Female interface connector:
25-contact D-Submini DB25S with screw-lock
hardware

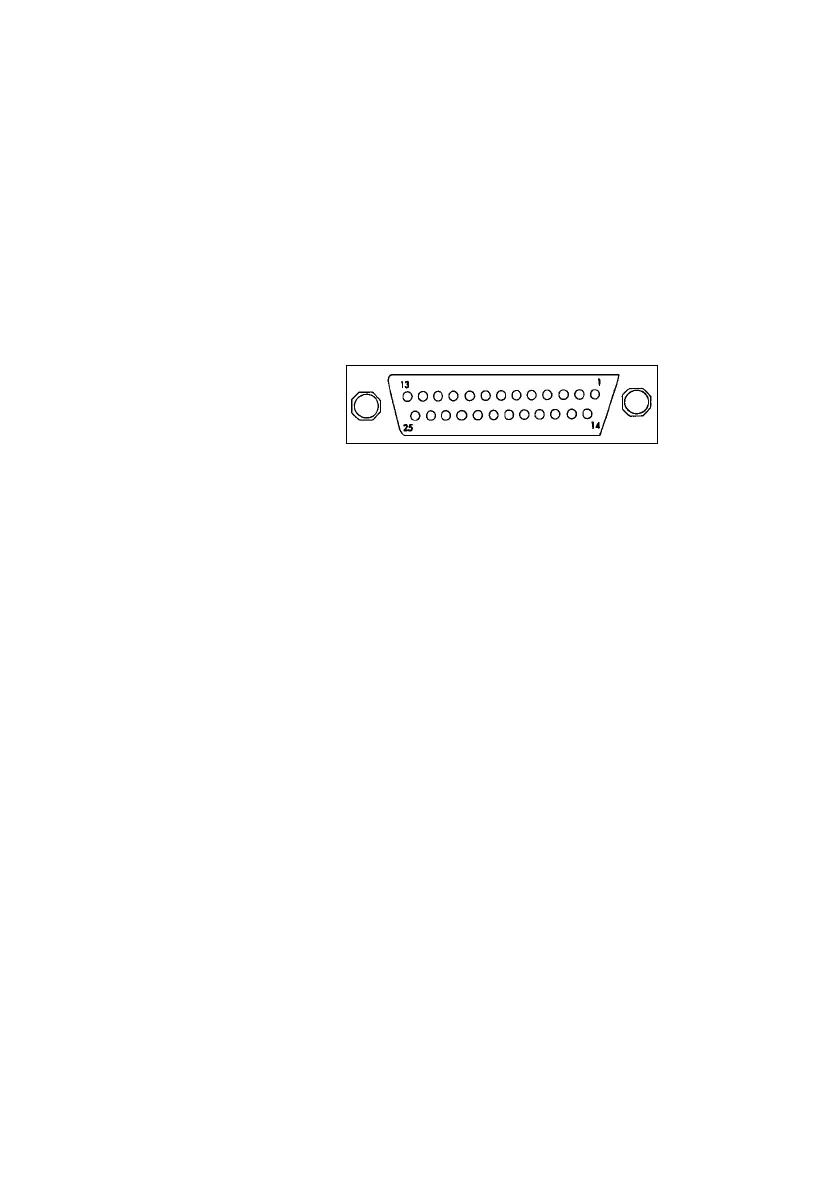

The pins are numbered as shown here:
Connector – front view
Male connector used (please use connectors
with the same specifications):
25-pin D-Submini DB25 with integrated shielded
cable clamp assembly (Amp 826 985-1C)
and fastening screws (Amp type 164868-1)
