Sartorius MSE3.6P - General View of the Equipment

General View of the Equipment and Equipment Supplied
General View of the Equipment
and Equipment Supplied
Analytical and precision balances with a weighing range of up to 15 kg

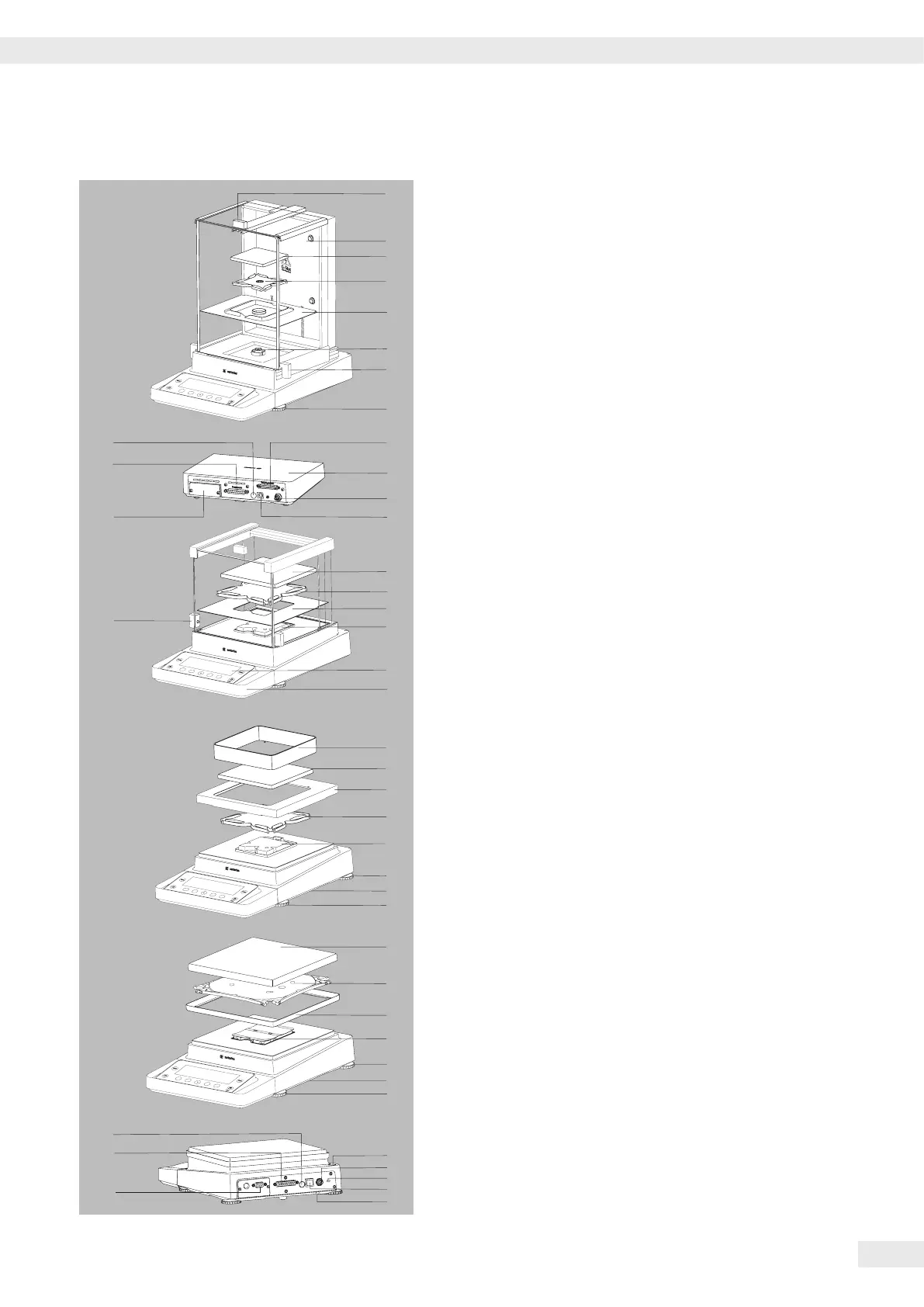

Item Description
1 Upper sliding draft shield panel/Handle
2 Back panel
3 Weighing pan
4 Pan support (not for MSx225���/MSx125��� models)
5 Shield plate
6 Pan retainer
7 Right sliding panel/Handle
8 Leveling foot
9 Display
10 Display and control unit
11 Draft shield/Shield disk (only for models with a readability of
1 mg and 10 mg)
12 Below-cell weighing port
(on the bottom of the balance)
13 Leveling foot
14 Level indicator
15 Power socket
16 Slot for attaching an
anti-theft locking device
17 USB socket for a PC connection
18 Below-cell weighing hook
19 Slot for optional interfaces,
e�g�, 9-pin data output (as shown) or Bluetooth�
PS2 socket has no function�
20 Communication port (PERIPHERALS) for accessories
21 Menu access switch
22 Left sliding panel/handle
23 Semi-microbalances: Female connector for weigh cell
24 Semi-microbalances: Electronics module
(for MSx225���/MSx125��� models)
Not shown:
– AC adapter
– USB cable
– Operating instructions
– In-use cover over the display unit
– Dust cover (only for balances with a draft shield)
– In-use cover for housing (only for models with a readability of
19 mg/100 mg and a weighing capacity of <14 kg)
Cubis MSE Operating Instructions 7
