Service Manual Signum
Working with the Service Mode
Important note:
Remove the cover on the back, left-hand side of the indicator housing
and slide the menu access switch to the right (»free« setting, see page 19
for more information).
– Activate the service mode (see page 15).

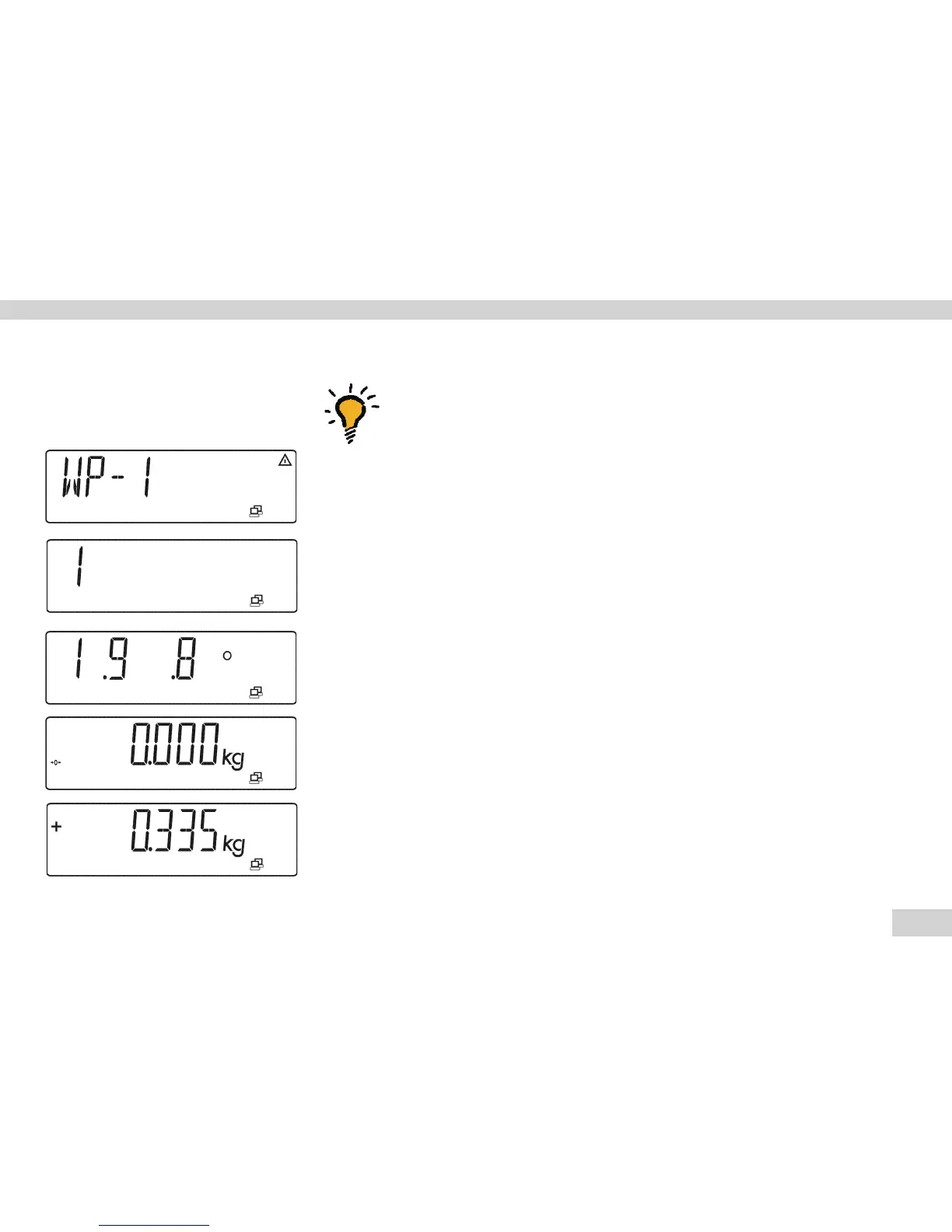

– Select weighing platform »WP1«.
– Press the ) key to access the number menu.
– Select menu »1-9-8« (Setting the preload) by pressing the k ) key repeatedly
and then pressing the ( key briefly to confirm.
– Press and hold the ) key to store the selected menu and return the scale to
the weighing mode.
– Tare the scale (by pressing the ) key) or zero the display (by pressing the (
key).
After the scale has been tared, „NET“ might remain in the display.
– Place the preload weight on the scale.
– Press the J key until »SET Vor« appears in the display.
display_serv_01.eps
menu_198.eps
display_wps1_serv.eps
0kg.eps
vorl1.eps
