Service Manual Signum
Optional Data Output Ports/Interfaces

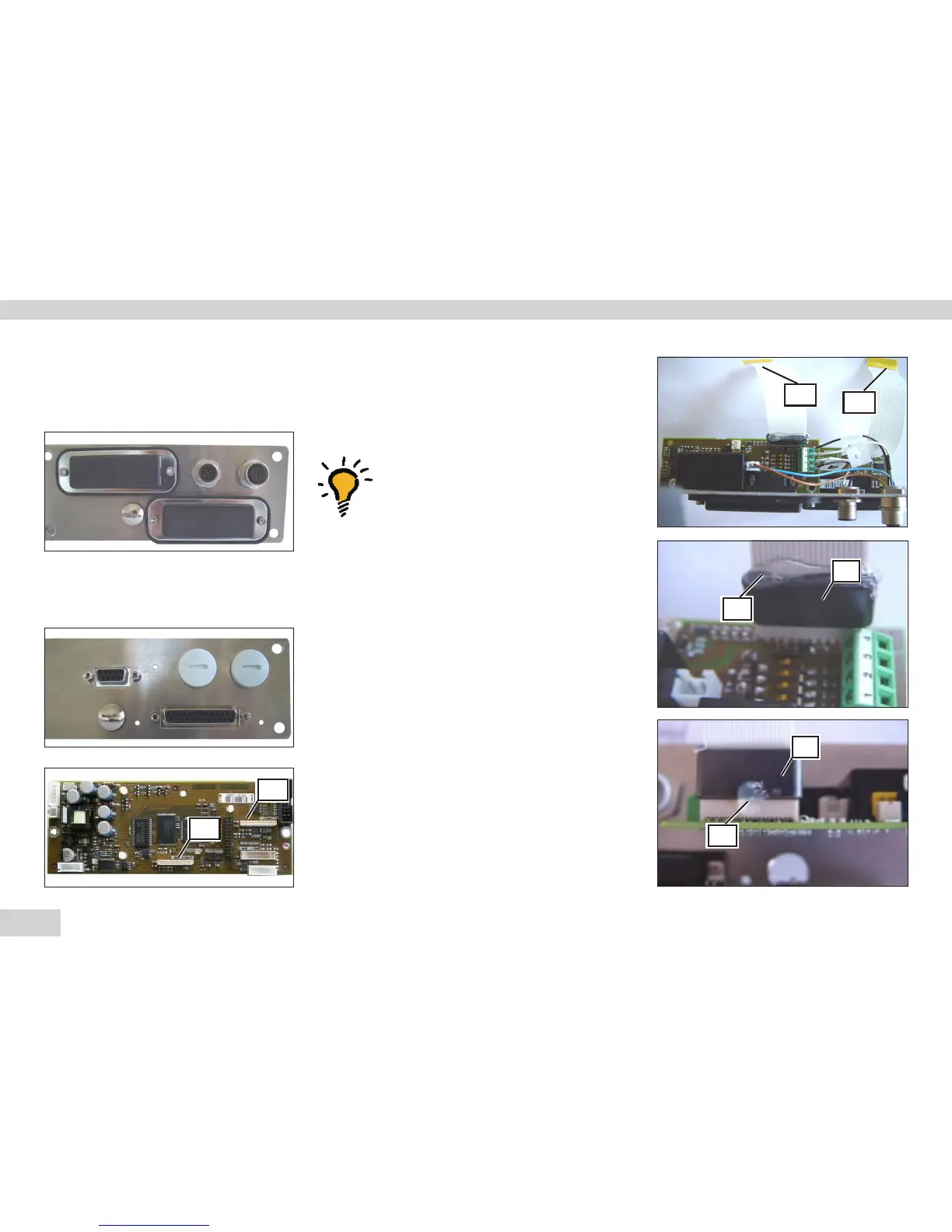

Installation of the Profibus Module
Profibus Module Plate with IP65 Protection
Important note:
After installation of the Profibus
module, the cable connectors must
be equipped with a flat ferrite and
glued with silicone.
(see pictures on the rigth).
Data Output Plate with IP65
Protection
Bu1a
Bu2a
St2a
St1a
FF
FF
SI
SI
