57
Service Manual Signum
Working with the Service Software
–
Mit der Taste
k
bis
COM-1
scrollen.
–
Use the
k
key to scroll to
COM-1
.
–
Press the
)
key.
DATPROT
is displayed.
–
Press the
)
key again.
BPI-232 appears in the display
.
Important note:
The
X
is not displayed when BPI-232 is selected.

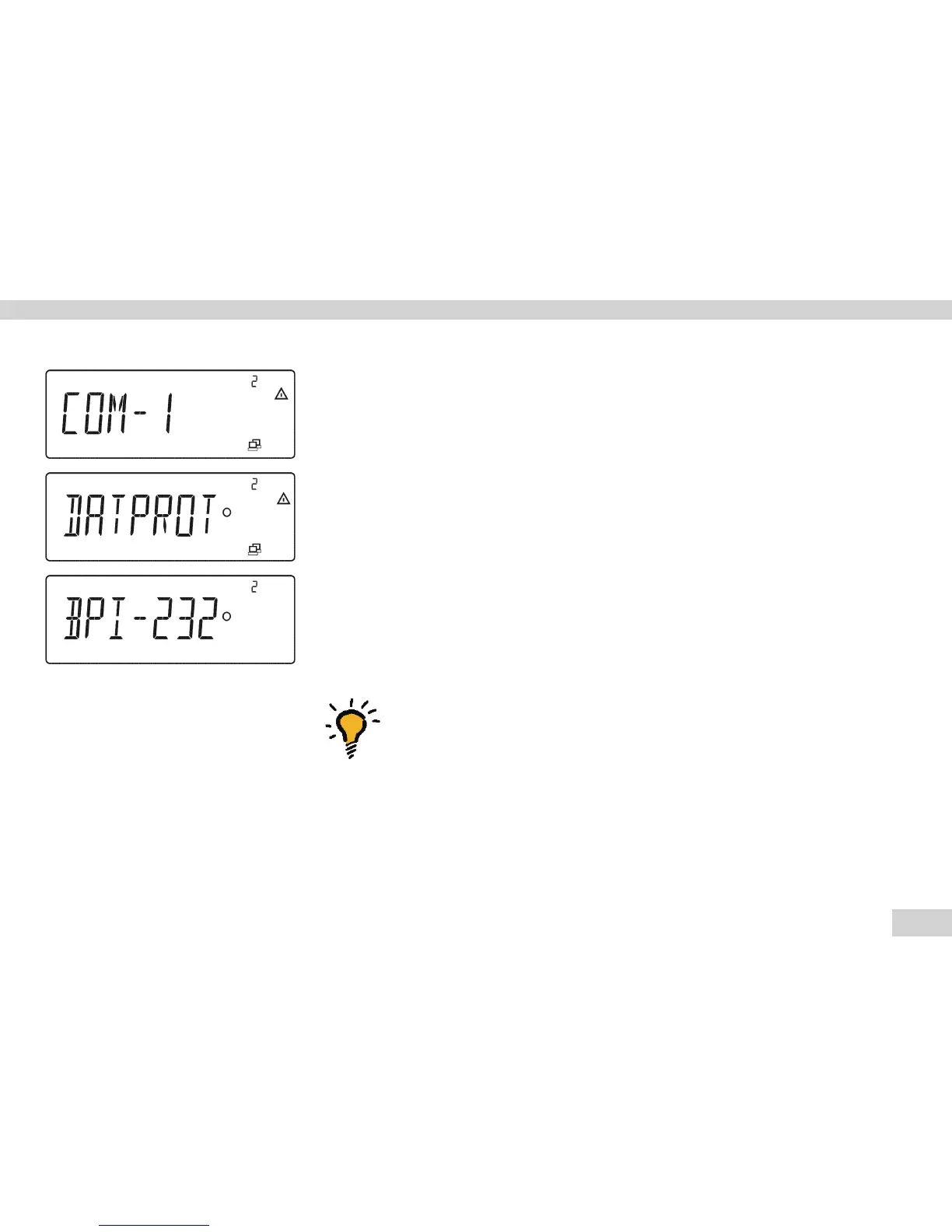

disp_xbpi_d.eps
disp_com-1_d.eps
disp_datprot_d.eps
56
58
Table of Contents
Default Chapter
2
Table of Contents
2
Introductory Remarks
4
Notes on Using this Manual
4
Printing the Manual
4
Design
4
Symbols
5
Safety Instructions
6
Model Designation
7
Model Codes
7
Resolutions
7
Models with Special Weighing Systems
8
Design 5
9
Additional Tools / Programs, Etc
10
Accompanying Literature
10
Description of the Equipment
11
Display Units
11
Flat Screen Display Unit
11
Tall Display Unit
11
Position Description
11
Overview of the Signum Series Scale Featuring Strain Gauge Technology
13
Overview of the Signum Series Scale Featuring Electromagnetic Force Compensation
14
Activating the Service Mode
15
Additional Menus in the Service Mode
17
In the Text Menu (Setup)
17
Calibration/Adjustment Functions
19
Default Weights
19
External Calibration/Adjustment with User-Defined Weights
20
Internal Weight 2)
22
External Linearization with Default Weights
23
User-Defined Weights
26
1-9-8Setting the Preload
28
1-9-9Clearing the Preload
30
1-18 Entering Calibration/Linearization Weights
32
External User-Defined Calibration Weight
32
Vice Mode Not Required)
32
Weight
33
Replacing the Display Unit
34
Opening the Display Unit
34
Closing the Display Unit
34
Replacing the Front Panel
35
Replacing the Cable
35
Replacing the Display PCB
36
Replacing Components
37
Repairing the Scale
37
Opening a Scale Featuring Strain Gauge Technology
37
Opening a Scale Featuring Electromagnetic Force Compensation
38
Closing the Scale
39
Replacing the Power PCB
40
Replacing the Data Output PCB
41
Replacing the Main PCB
42
Replacing the System PCB
43
Replacing Comonents of SIWAEDG
44
Optional Data Output Ports/Interfaces
46
Installation of the Profibus Module
46
Data Output Plate with IP44 Protection
47
Data Output Plate with IP65 Protection
48
COM 1 Port SIWAEDG
49
Error Codes
50
Additional Tools / Programs, Etc
52
Block Diagram
53
Working with the Service Software
54
Service Switches
54
Function of the Service Switches
54
Menu Access Switch
54
Boot Switch (Flash Switch)
55
Sbi/Xbpi
55
Close Function
55
Setting the XBPI-232 Protocol
56
Calibration/Adjustment Data for the SIWR
58
Calibration/Adjustment Data for the SIWR
59
Calibration/Adjustment Data for the SIWA
60
Calibration/Adjustment Data for the SIWS
61
