Chapter 2 Installation
12

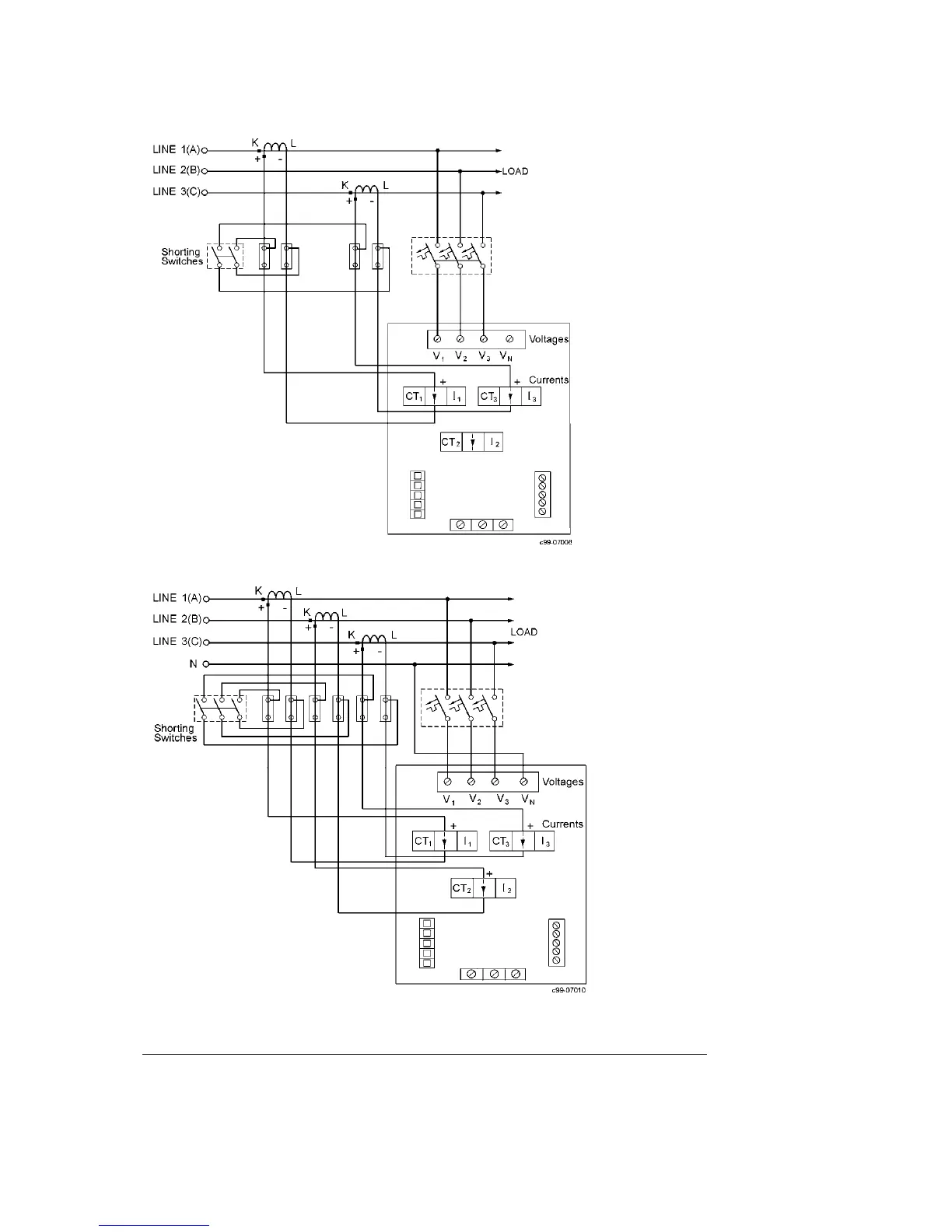

Figure 2-6
Four Wire WYE Direct
Connection Using 3
CTs (3-element)
Wiring Mode = 4LL3
or 4Ln3
Figure 2-5
Three Wire Direct
Connection Using 2 CTs
(2-element)
Wiring Mode = 3dir2
