Satec PM130P - Page 20

Chapter 2 Installation 13

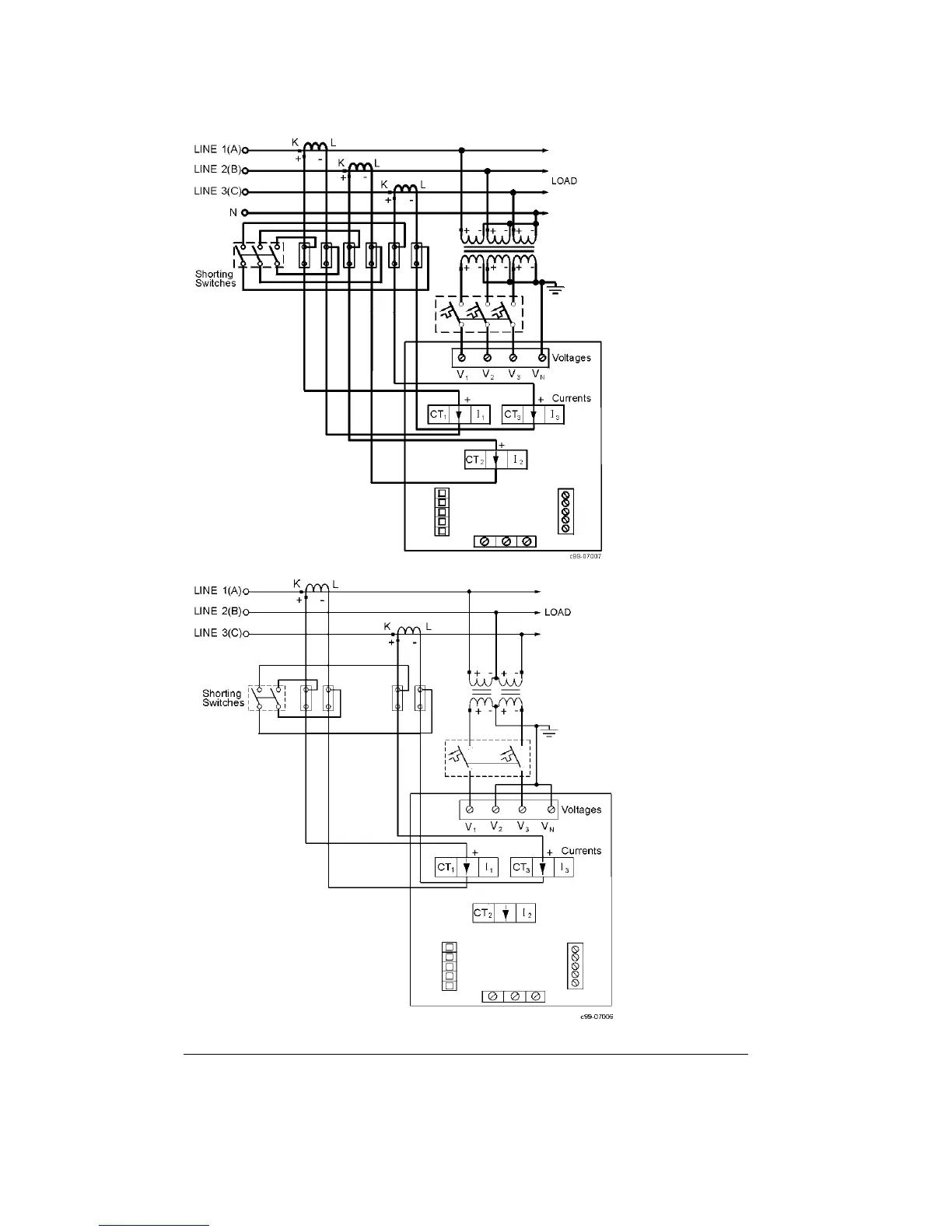

Figure 2-7
Four Wire WYE
Connection Using 3
PTs, 3 CTs (3-
element)
Wiring Mode = 4LL3
or 4Ln3
Figure 2-8
Three Wire Open
Delta Connection
Using 2 PTs, 2 CTs
(2-element)
Wiring Mode = 3OP2
