Chapter 3 Setup 17
3.3 Potential Transformer Ratio: Pt
Note: Pt must be defined before relay setpoint definition.
In a direct connection, at low voltage (up to 660V), the PT must be set
to 1. In the case of connection using PTs, the PT ratio must be
calculated.
Example: If the primary voltage is 165kV and the secondary is 110V,
the PT will be 165,000/110=1500.
- Press SELECT; the dot will disappear.
- Use the ⇑ ⇓ keys to scroll to the appropriate value (1 - 6500).
- Press RESET; the dot will re-appear.

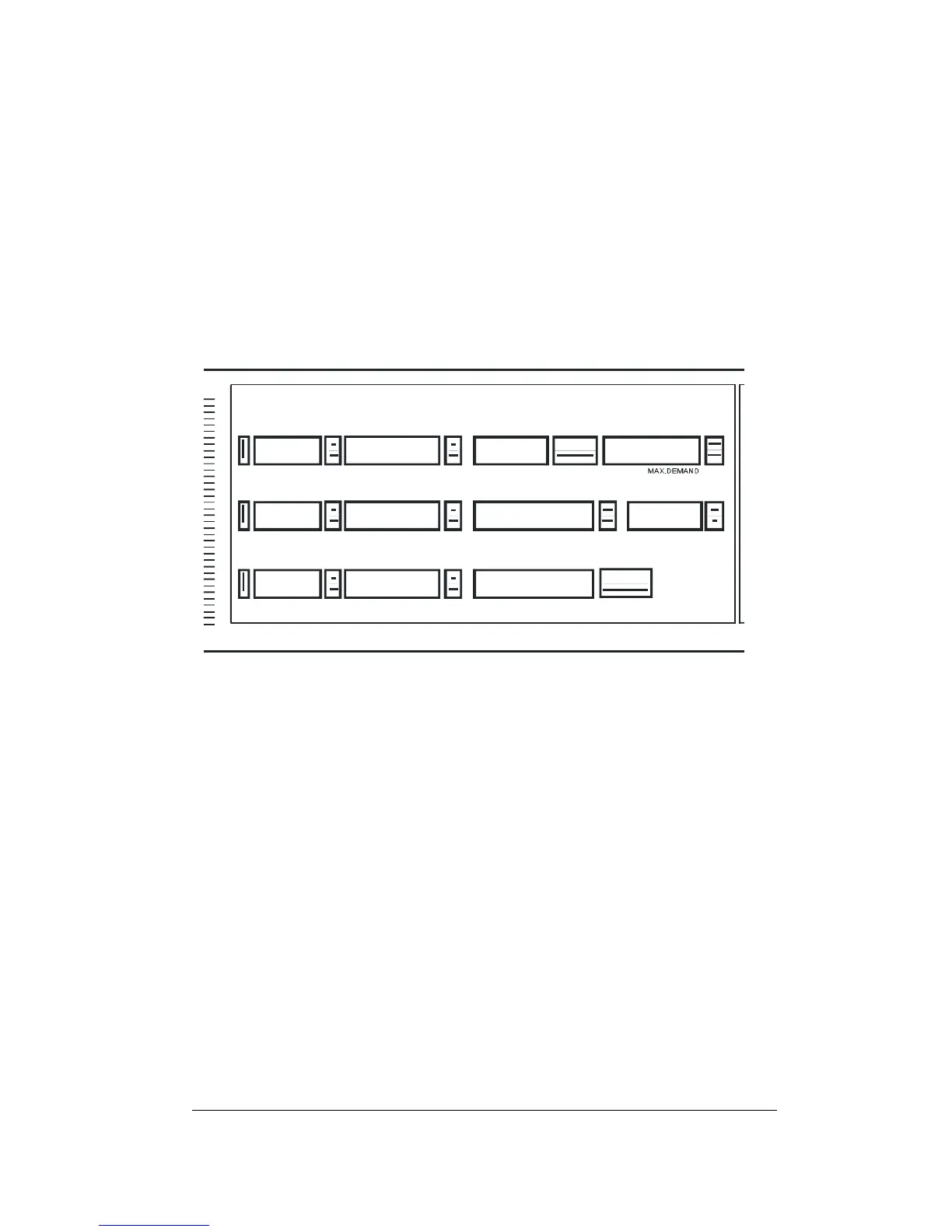

UNBALANCED CURRENT/
APPARENT POWER
FREQUENCY
CURRENT
CURRENT
CURRENT
VOLTAGE
VOLTAGE
VOLTAGE
AC TIVE E NE RGY
MAX.D EMAND
REACTIVE POWER
POWER FACTOR
AC TIV E PO WE R
MODEL
1Pt.
MAX. AMP DEMAND
290
MAX. AMP DEMAND
MAX. AMP DEMAND
REACTIV E ENERGY
Use the ⇑ key to move to the next setup parameter.
