16 Chapter 3 Setup
3.2 Wiring Mode: CnF
Choose from 4 wiring modes:
1) 3dir 3-wire direct connection using 2 CTs
2) 3OP 3-wire open delta connection using 2 PTs, 2 CTs
3) 4L-n 4-wire direct or WYE or grounded delta connection
using 3 CTs, with or without PTs, using line-to-neutral
values
4) 4L-L 4-wire direct or WYE or grounded delta connection
using 3 CTs, with or without PTs, using line-to-line
values
- Press SELECT; the dot will disappear.
- Use the ⇑ ⇓ keys to scroll to the appropriate value.
- Press RESET; the dot will re-appear.

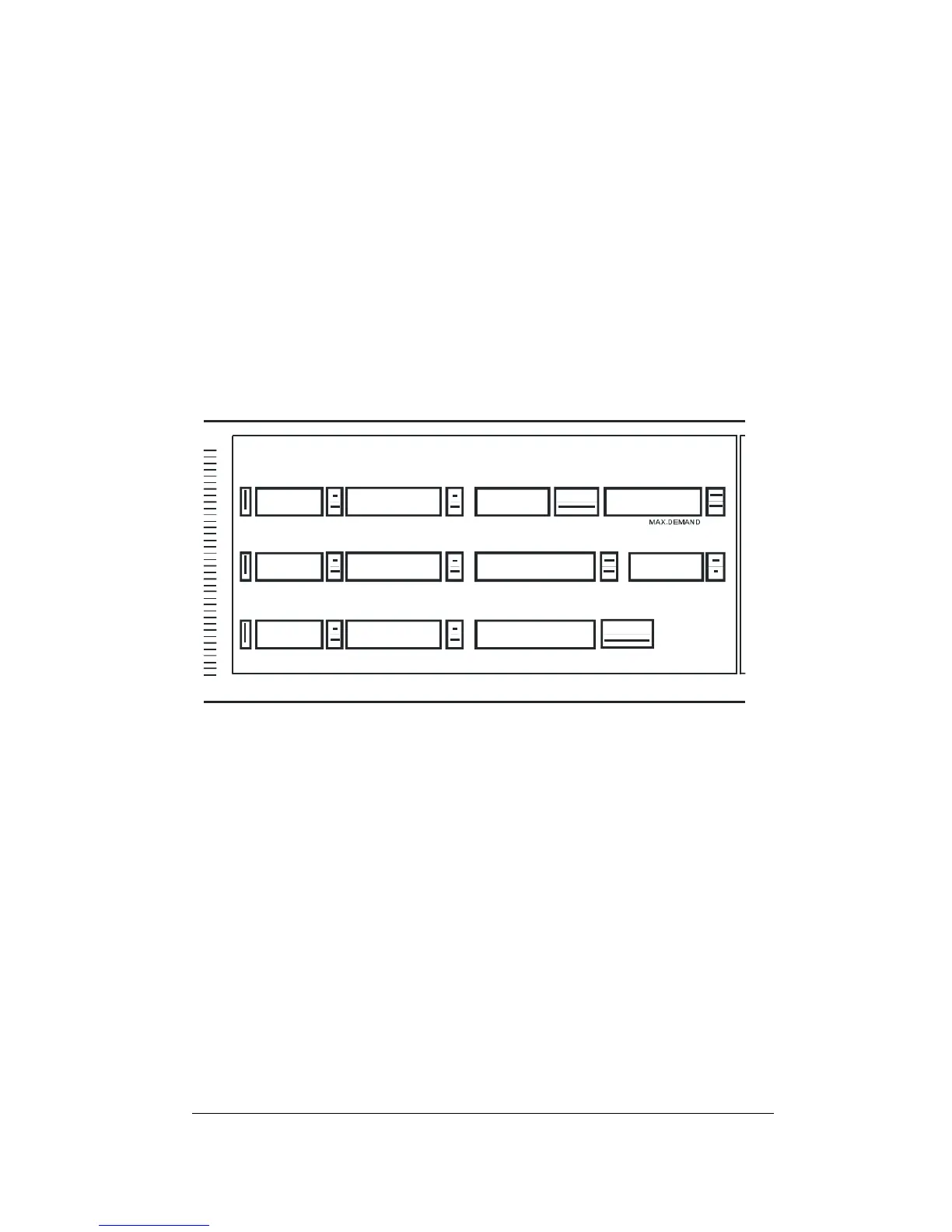

UNBA LANC ED CU RRENT/
APPARENT POWER
FREQUENCY
CURRENT
CUR RENT
CUR RENT
VOLTAGE
VOLTAGE
VOLTAGE
ACTIVE ENERGY
MAX.D EMAND
REACTIVE POWER
POWER FACTOR
ACTIVE POWER
MODEL
4L-L
CnF.
MAX. AMP DEMAND
290
MAX. AMP DEMAND
MAX. AMP DEMAND
REACTIVE ENERGY
Use the ⇑ key to move to the next setup parameter.
