SATEL ACU-280 45
APMD-150 (APMD-250)
Enter 3 digits:
1st digit – sensitivity of PIR sensor: from 1 to 4 (1 – minimum; 4 – maximum).
2nd digit – sensitivity of microwave sensor: from 1 to 8 (1 – minimum; 8 – maximum).
3rd digit – the way of operation in the test mode: 0 (alarm after motion is detected by both
sensors), 1 (alarm after motion is detected by PIR sensor) or 2 (alarm after motion is
detected by microwave sensor).
ARD-100 (ARD-200)
Enter a number from the 1 to 16 range to determine sensitivity (1 – minimum; 16 - maximum).
ART-200
Click to open the radiator thermostat settings window.

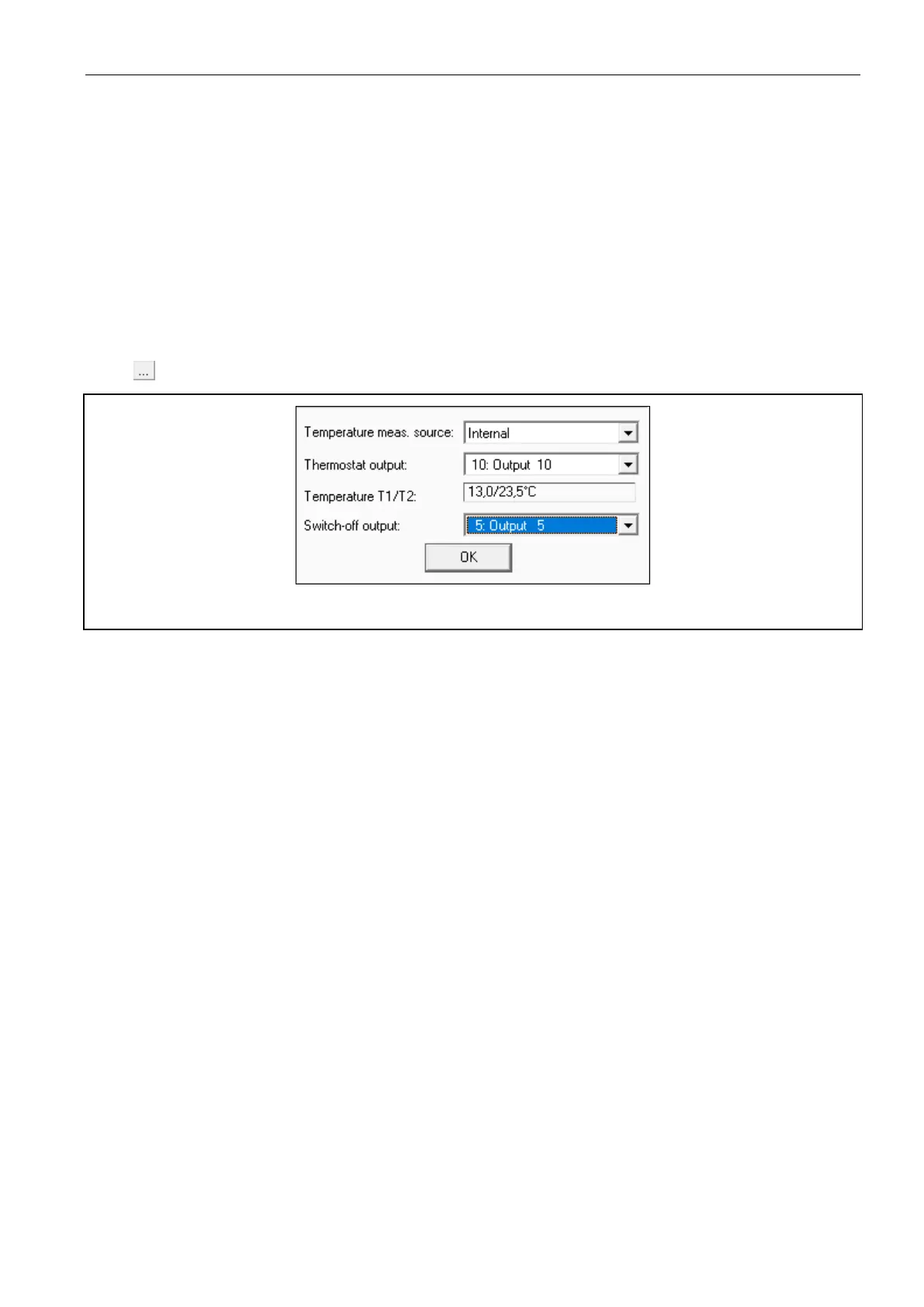

Fig. 26. DLOADX program: window with the ART-200 radiator thermostat settings.
Temperature meas. source – select the sensor that will provide data on temperature:
Internal – thermostat sensor,
[Device name] – temperature sensor of an ABAX 2 system device.
Thermostat output – select the alarm system “120. Thermostat” type output, whose settings
will be used by the thermostat.
Temperature T1/T2 – information on temperature thresholds defined for the selected
“120. Thermostat” type output (T1 – economic temperature / T2 – comfortable
temperature).
Switch-off output – select the alarm system output that will be used to disable the capability
to switch between the thermostat operating modes remotely. Turn on the output to enable
the “Manual setting of the valve position / temperature” operating mode.
ASD-150 (ASD-250)
Enter 2 digits:
1st digit – option to signal alarm from other ASD-250 detectors: 0 (disabled) or 1 (enabled).
2nd digit – option to send out alarm to other ASD-250 detectors: 0 (disabled) or 1 (enabled).
ATD-100 (ATD-200)
For each position taken by the detector, enter in turn:
• letter H (high temperature threshold) or L (low temperature threshold),
• number from a range of -30 to +70 (with 0.5 accuracy) to define temperature,
• number from a range of 0.5 to 10 (with 0.5 accuracy) to define tolerance.
ATX-230
Roller shutter input – enter 2 digits:
1st digit – number of pulses: from 1 to 8.
