CA-5 SATEL
3
4. O
PERATION
This manual contains description of operating the CA-5 alarm control panel by means of the
keypad.
Operating the security system consists basically in arming / disarming the system (switching
the supervision on/off), and in adequate reaction to the information indicated by the control
panel.
By means of the control panel keypad, it is possible to trigger special alarms (PANIC, FIRE,
HELP), to bypass the zones, to establish communication with the service computer, and also
to control external electrical equipment, such as: electromagnetic lock, fan, lighting, etc.
The keypad provides information on the security system status by means of 10 light emitting
diodes (LED) and audible signals.
The LCD keypad provides information on the alarm system status by means of a liquid-
crystal display (2x16 characters), three light emitting diodes (LEDs), as well as audible
signals.
The LCD keypads are available in two versions i.e. (CA-5 KLCD-L and CA-5 KLCD-S) that
differ in their overall dimensions and the display size.
The backlighting of keypad and display can be permanent or switched on automatically by
pressing a key, or, alternatively, by violation of any control panel zone when in armed mode –
the manner of backlight operation should be determined by the installer.
The letters on number keys help the user memorize the code by associating it with
a particular word (e.g. the „[2][6][2][7][2]” code corresponds to the word „COBRA”).
4
7
¾
5
1
8
0
6
2
9
#
3
ARMED
TROUBLE
ALARM
PROGRAM
1 2 3 4 5
POWER
CA-5 KLED-M keypad

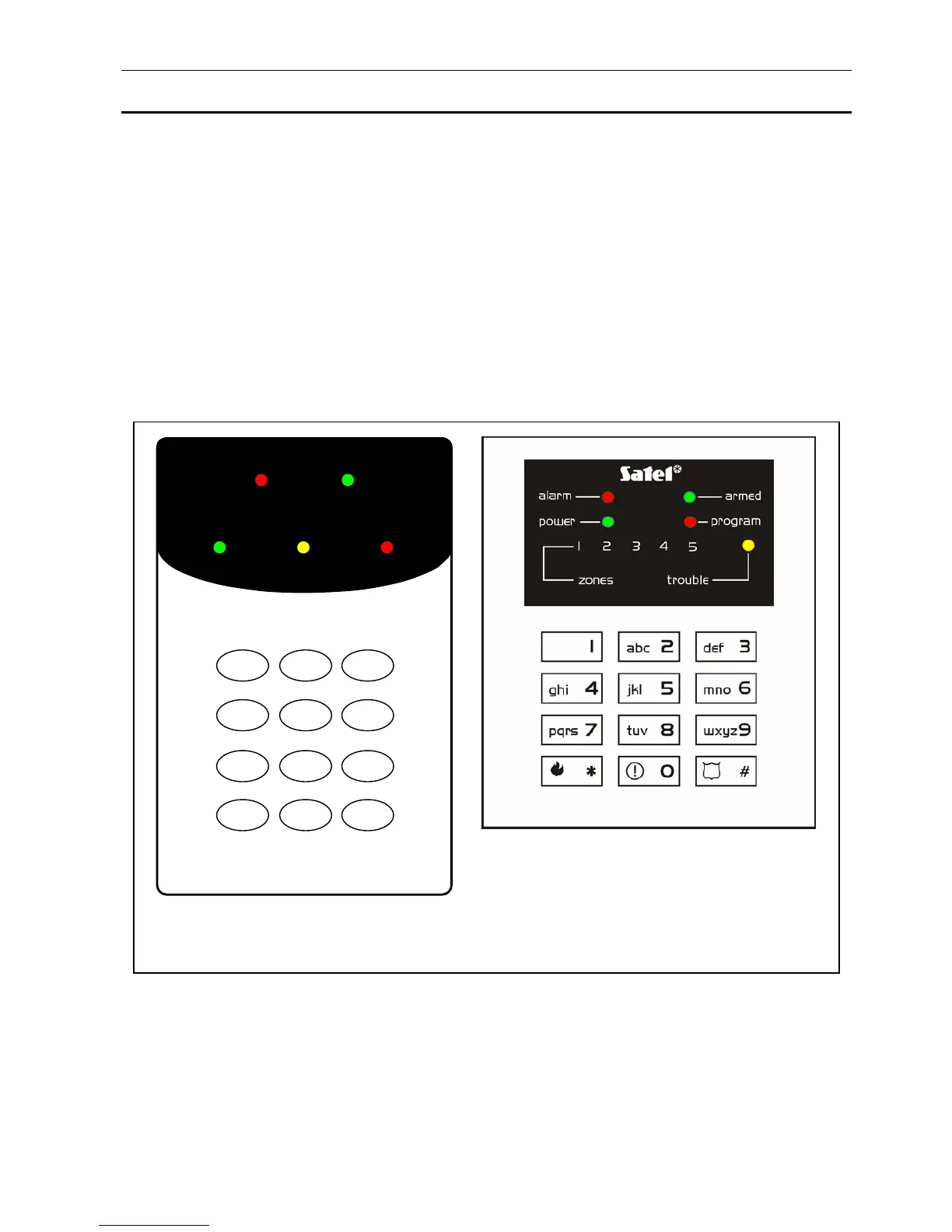

Fig. 1. LED keypads.
CA-5 KLED-S keypad
