30 ETHM-1 Plus SATEL

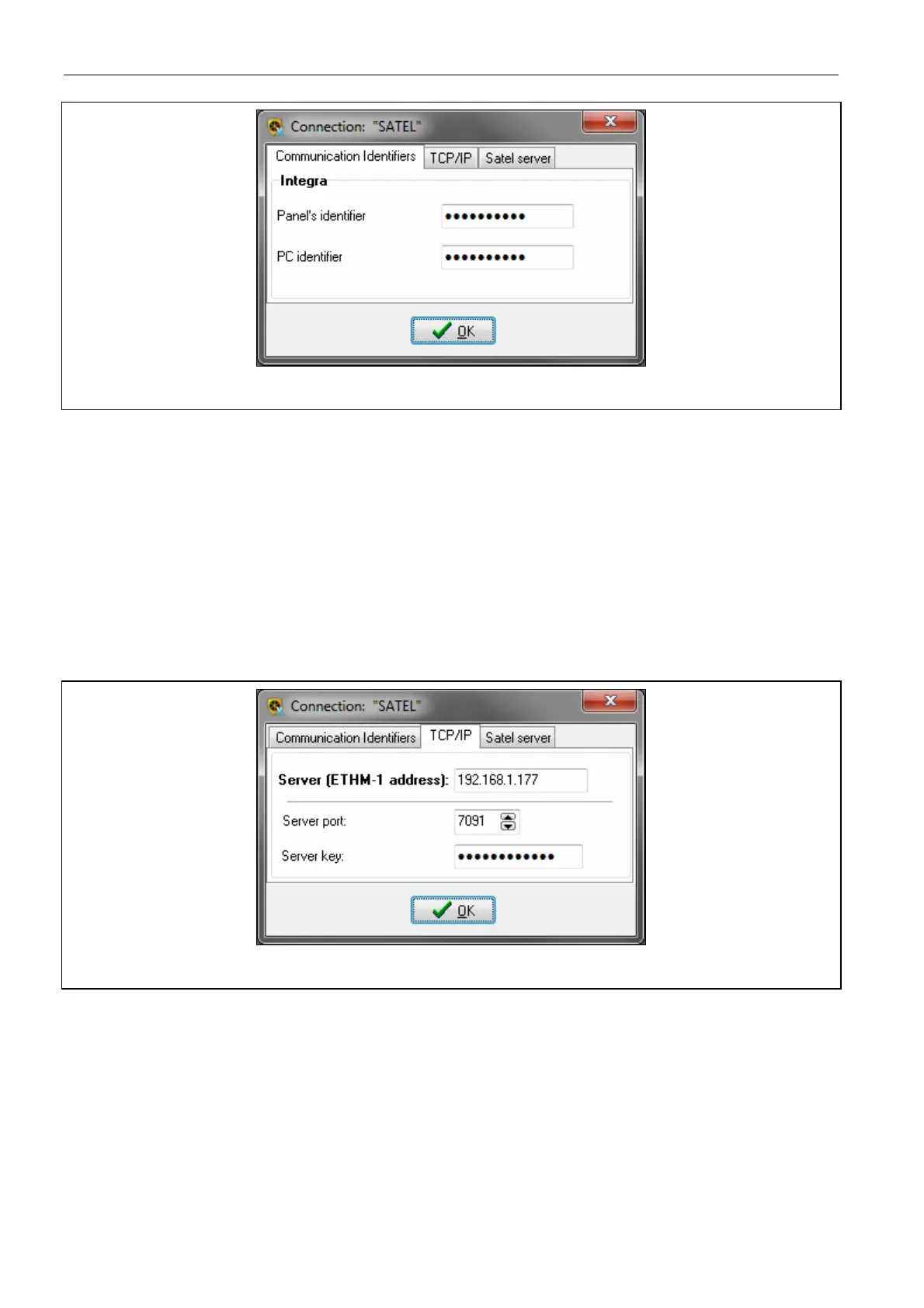

Fig. 16. GUARDX program: “Communication Identifiers” tab in “Connection” window.
“TCP/IP” tab
The settings below apply to direct communication with the module.
Server (ETHM-1 address) – address of the Ethernet module. If the Ethernet module is not in
the same local network as the computer with GUARDX program, it must be a public
address. You can enter either the IP address or the domain name.
Server port – the number of TCP port used during communication between the control panel
and computer with GUARDX program.
Server key – a string of up to 12 alphanumeric characters (digits, letters and special
characters) used for data encryption during communication between the control panel and
the computer with GUARDX.
Fig. 17. GUARDX program: “TCP/IP” tab in “Connection” window.
“Satel sever” tab
The settings below apply to communication via the SATEL server.
Select the “ETHM-1 MAC” variant.
ETHM-1 MAC – hardware address of Ethernet module.
ETHM-1 ID – individual ID number assigned to the module by the SATEL server.
Server key – a string of up to 12 alphanumeric characters (digits, letters and special
characters) used for data encryption during communication between the control panel and
the computer with GUARDX.
