SATEL ETHM-1 Plus 31

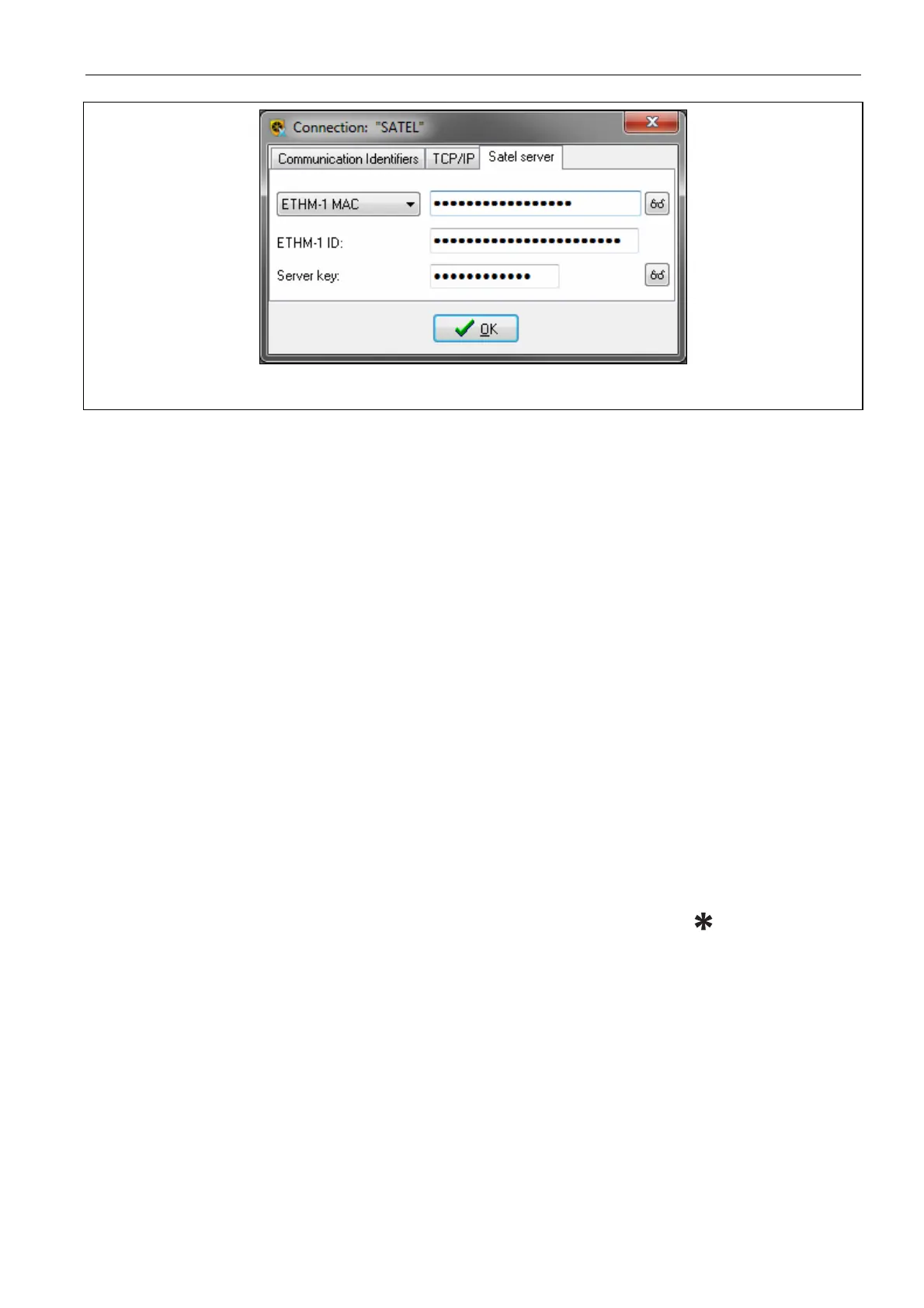

Fig. 18. GUARDX program: “Satel server” tab in “Connection” window.
7.1.2 Initiating connection from GUARDX program
Required settings of the module:
programmed number of TCP port used for communication.
Required settings of the GUARDX program for direct communication with the module:
programmed: ETHM-1 Plus module address (SERVER (ETHM-1 ADDRESS)), number of
TCP port used for communication and data encryption key (GUARDX KEY).
1. In the startup window (Fig. 15), “Connection” field, select “TCP/IP: GUARDX->ETHM”,
and then click on the “Start” button.
2. In the window that will be displayed after establishing communication, enter the code of
administrator / user of the control panel.
7.1.3 Initiating connection from keypad (through control panel)
Required settings of the module:
programmed: address of computer with GUARDX program (GUARDX SERVER) and umber
of TCP port used for communication.
Required settings of the GUARDX program for direct communication with the module:
programmed: number of TCP port used for communication and data encryption key
(GUARDX
KEY).
1. In the startup window (Fig. 15), “Connection” field, select “TCP/IP: GUARDX<-ETHM/INT-
GSM”, and then click on the “Start” button.
2. Ask the user to start the ETHM-1
GUARDX function ([code] DOWNLOADING
ETHM-1 GUARDX). The function is available to the service, administrator and user
having the DOWNLOADING STARTING right.
3. In the window that will be displayed after establishing communication, enter the code of
administrator / user of the control panel.
7.1.4 Initiating connection by SMS message
Required settings of the module:
programmed: address of computer with GUARDX program (GUARDX SERVER) and
number of TCP port used for communication,
programmed control command which, if sent in the SMS message, will initiate connection
with the GUARDX program (SMS
INITIATING GUARDX CONNECTION).
