Table 2.x COM2 pinouts

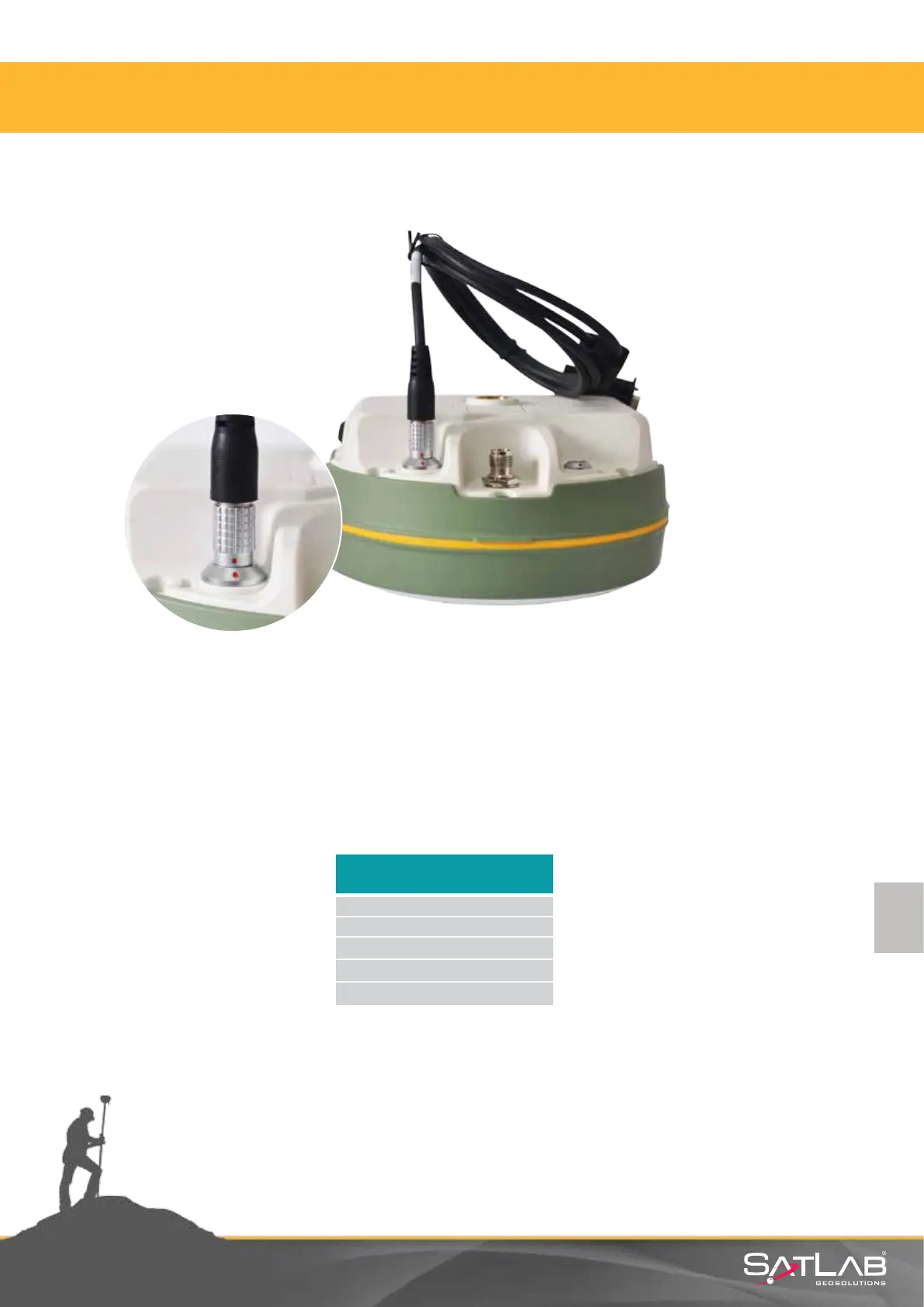

Figure 2.x Inserng COM1 Y cable to receiver.
2. Receiver Physical Appearance
2.4.1.2. COM2
COM2 or communicaon port number 2 is an industry level sealed push-pull 5 pin connector providing
RS232 serial and power supply.
COM2
1 GND earth
2 GND earth
3 Vin Power Input
4 RXD Data input
5 TXD Data output
