SATO CL4NX Service Manual

5 Replacement
73
CL4NX/CL6NX Service Manual

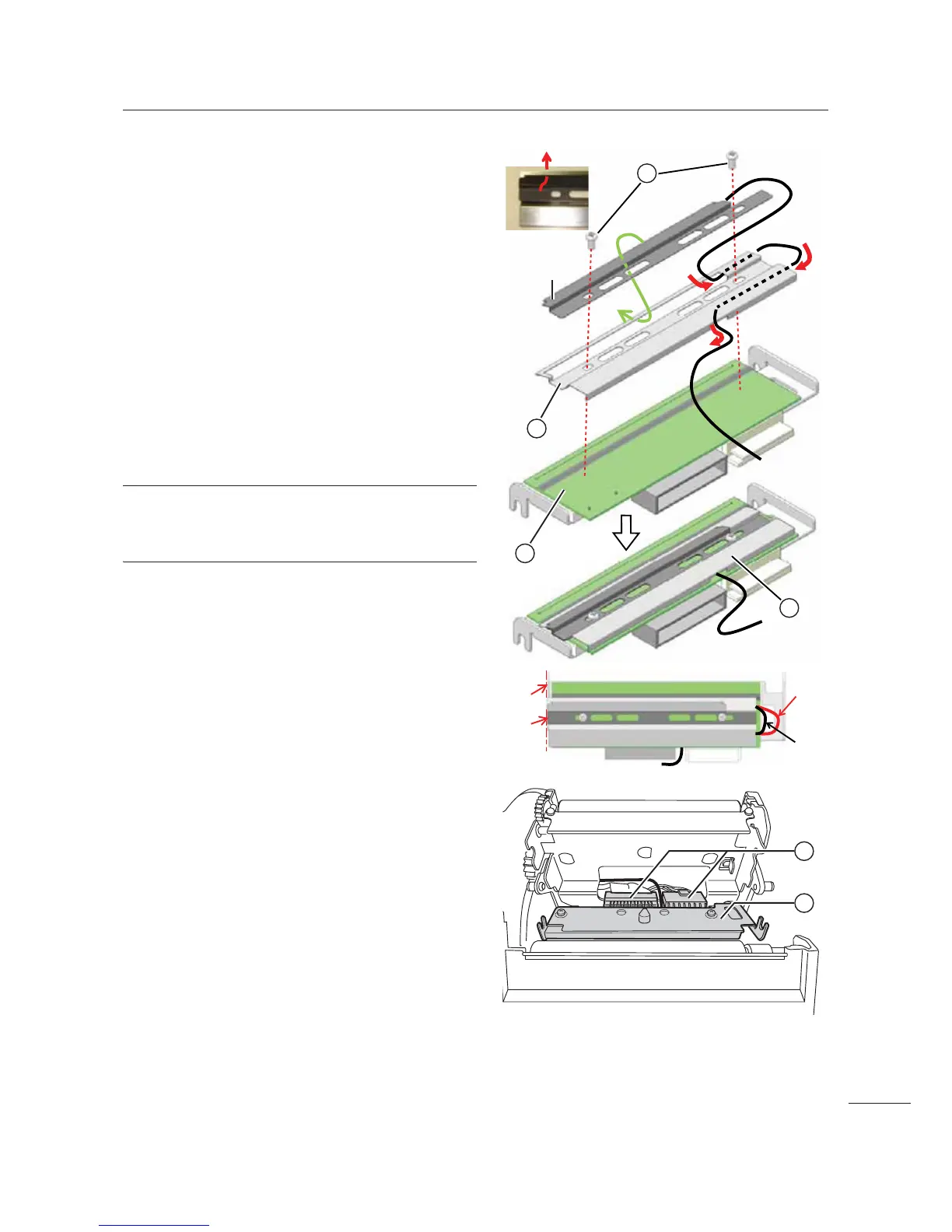

4 Make sure that the UHF (short) antenna
assembly is attached onto the RFID
head cover
4 as shown in the picture.
If not, insert front part of UHF (short) antenna
assembly through the rectangle opening of the
RFID head cover.
Route the antenna wire accordingly.
5 Attach the RFID head cover 4 to the
new print head
, using two screws
(print head)
1.
Align the edge of the RFID head cover 4
carefully to the side of the print head
, as
shown. Then fix the position using the screws.
The print head assembly is known as
RFID print head assembly
" in the later steps.
Note
Make sure that the loop of the antenna wire is as
short as possible.
6 Connect the print head cables to two
connectors
/ of the
RFID print head assembly
".
7 Install the RFID print head assembly ".
Install the print head so that it is locked with a click
sound.
8 Load the media and ribbon back if you
remove them.
After the replacement
• Clear the head counter value.
Refer to Section 4.2 Counter Clear Mode
• Check the print darkness.
Refer to Section 4.5 Adjusting the Print Darkness
6
5
OK
NG
9
UHF (short)
antenna
assembly
Align
10
10
4

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
